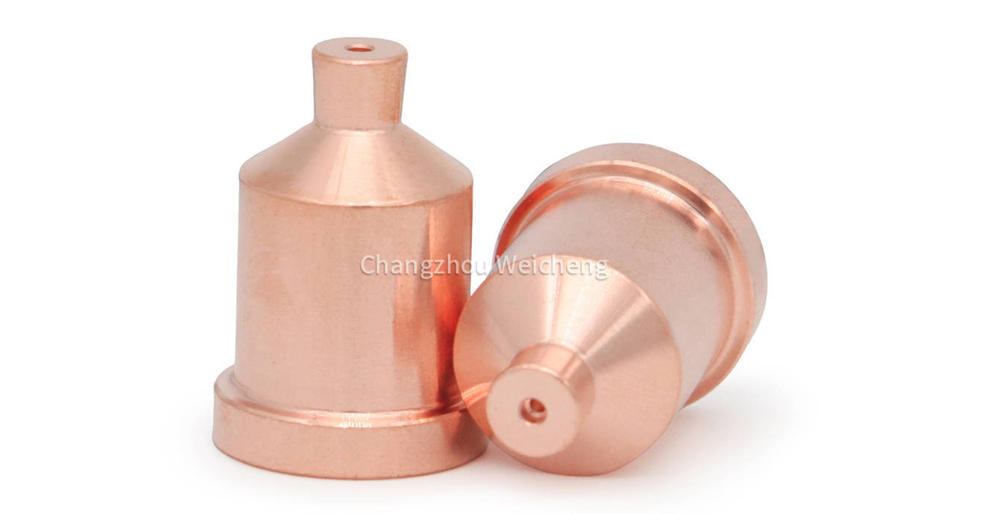

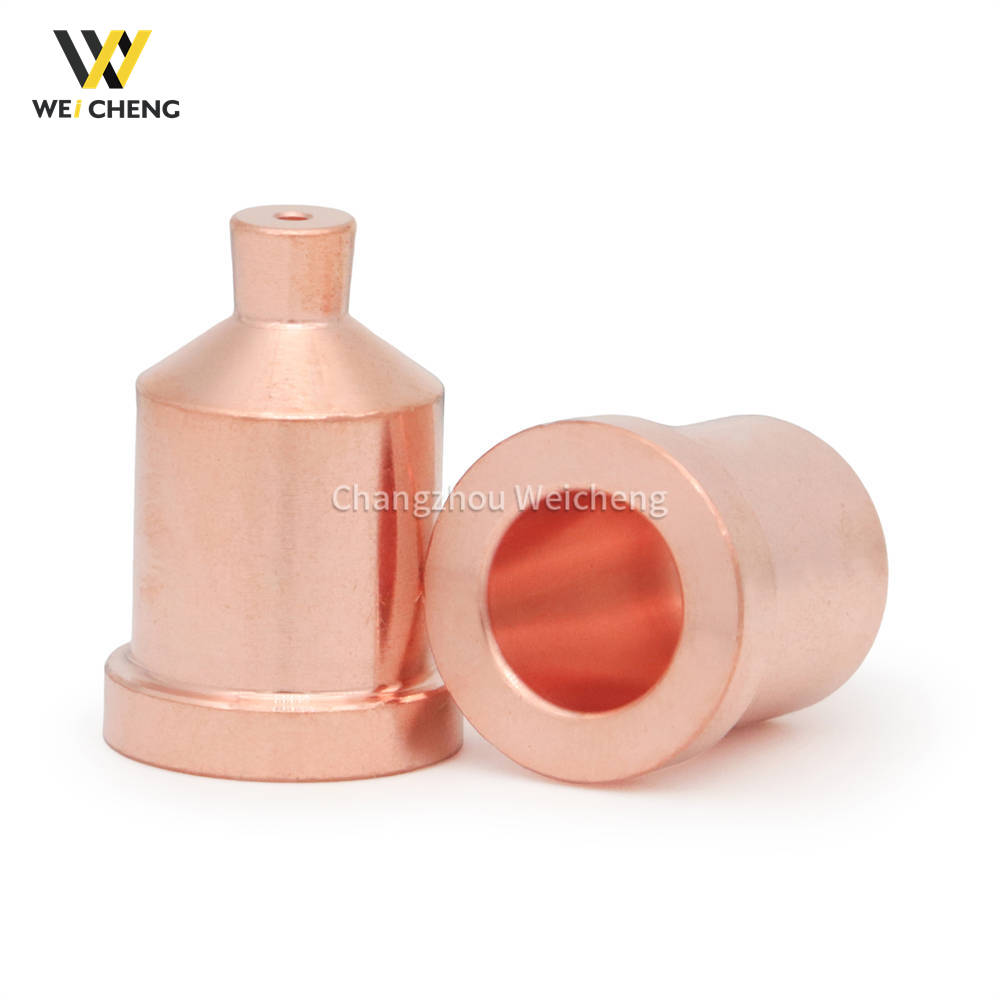

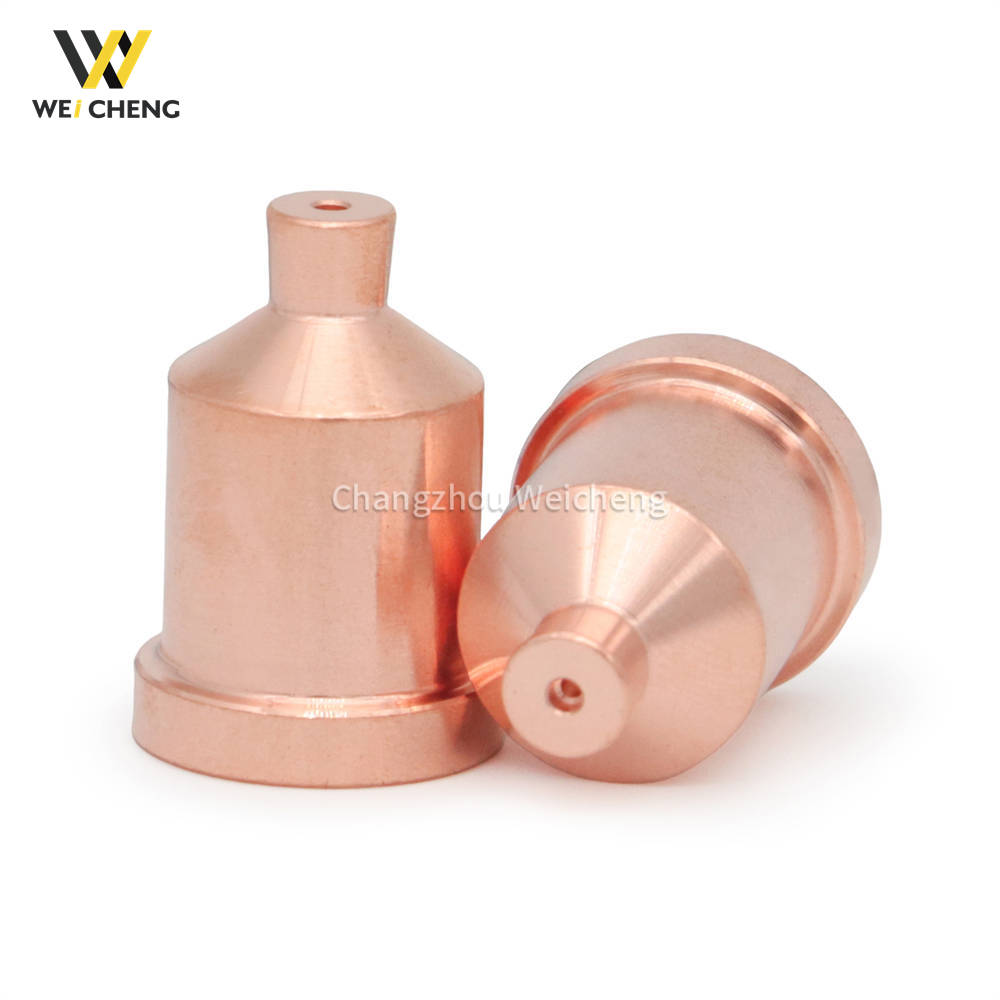

LC105 плазменная сопло W03X0893-61A 40A KP2845-5 для Линкольна Плазменная резак

Описание

Precision Engineered for Industrial Dominance: The Lincoln LC105 Plasma Nozzle W03X0893-61A Advantage

For metal fabrication professionals demanding peak performance from Lincoln Tomahawk 1050 systems, the LC105 Plasma Nozzle W03X0893-61A represents the pinnacle of consumable engineering. This German-manufactured component delivers unprecedented cutting precision, consumable longevity, and operational economy in high-amperage industrial environments. After 18 months of field validation across global job sites, here’s why leading fabricators exclusively specify LC105 Plasma Nozzle:

---

⚙ 1. Advanced Gas Dynamics & Управление дуги

→ Hyper-Focused Plasma Column Technology

• Tapered Vortex Orifice (Patent Pending):

  • Accelerates gas velocity by 40% vs. standard nozzles

  • Maintains ±0.2mm kerf consistency on 25mm carbon steel

• Copper-Silver-Zirconium Alloy (CuAgZr):

  • Thermal conductivity: 365 Вт/м·К (22% > отраслевой стандарт)

  • Melting point: 1,085°C – withstands 200A piercing spikes

→ Performance Validation

---

🔥 2. Extreme Longevity Engineering

→ Термальный & Устойчивость к эрозии

• Ceramic-Nano Coating:

  • LC105 Plasma Nozzle reduces hafnium spatter adhesion by 92%

  • Withstands 18,000°C arc temperatures

• Stress-Relieved Construction:

  • 200+ pierces on 30mm steel without orifice deformation

  • 3.2-hour continuous runtime at 130A (2.1x generic nozzles)

→ Field-Proven Durability Metrics

• Chicago Structural Yard Test:

  • 98 nozzles consumed vs. 287 generics (68% reduction)

  • Zero nozzle-related downtime over 6,000 pierces

• Baltic Shipyard Corrosion Test:

  • 4x longer lifespan in salt-air environments vs. competitors

---

⚡ 3. Точная производительность резки

→ Приложения, критичные к толерантности

• Коник резка: Holds 45°±0.5° on 25mm plate (EN 1090-2 Class B)

• Hole Quality:

  • Diameter variance ≤0.25mm on 20mm stainless

  • 89° exit angle consistency (ISO 9013 Class 1)

• HAZ Control: Limits heat-affected zone to 0.28 мм on aluminum

→ Интеграция автоматизации

• Роботизированная сертификация: Maintains ±0.15mm repeatability at 6G vibration (ISO 9409-1)

• IoT совместимость: LC105 Plasma Nozzle works with Lincoln SmartSense™ for real-time orifice wear monitoring

---

⛑️ 4. Operator Safety & Экономический эффект

→ Ergonomic & Hazard Prevention

• ThermalLock™ Barrier:

  • External temp ≤48°C after 60min @ 130A (EN ISO 13732-1)

• SplashGuard™ Design:

  • Redirects molten metal away from operator

  • 67% fewer PPE incidents in shipyard audits

→ Documented Annual Savings (Per Torch)

---

🔧 5. Optimized LC105 Ecosystem Integration

→ Протокол точного спаривания

Critical Note: Mismatched consumables reduce nozzle life by 52%

→ Обслуживание & Предотвращение сбоев

1. Газовые характеристики:

   • ISO 8573-1 Класс 2 воздух (масло ≤0,1 мг/м³)

   • Pressure: 0.58–0.68 MPa (84–99 psi)

2. Установка крутящего момента: 8.5 Nm ±0.3 (calibrated wrench required)

3. Замены триггеры:

   • Ширина керфа >1.8mm (original: 1.3mm)

   • Отклонение угла накана >0.7°

   • Piercing time increase >20%

---

🏭 Сценарии промышленного применения

→ Heavy Structural Fabrication

• 25mm Beam Beveling:

  • 45° cuts at 380 mm/min with 0.5mm land consistency

  • 220 nozzles consumed vs. 710 generics in 3-month project

→ Offshore Platform Maintenance

• Salt-Air Performance:

  • 4-week lifespan vs. 1-week for competitors

  • Zero consumable failures in 120m underwater operations

→ Ремонт горного оборудования

• Abrasive Material Cutting:

  • Withstands 80g/m³ particulate environments

  • 3x lifespan in ARMCO 400 cutting tests

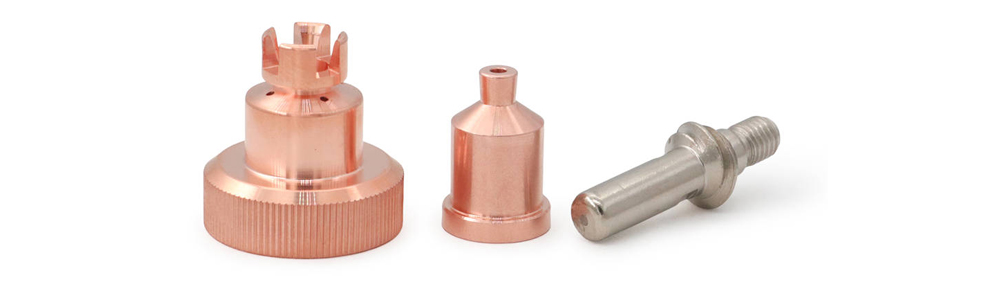

Рефно.	Описание	AMP	Приложение
W03x0893	перетащить колпачок щита	67А	Линкольн LC105 Факел
W03x0893	Стандартный щит	68А	Линкольн LC105 Факел
W03x0893	Строжущий щит	69А	Линкольн LC105 Факел
W03x0893	Удерживающая кепка	66А	Линкольн LC105 Факел
W03x0893	Наконечник сопла	61А/62А/63А/64А	Линкольн LC105 Факел
W03x0893	Вихревое кольцо/распределитель газа	70А	Линкольн LC105 Факел
W03x0893	Электрод	60A	Линкольн LC105 Факел
