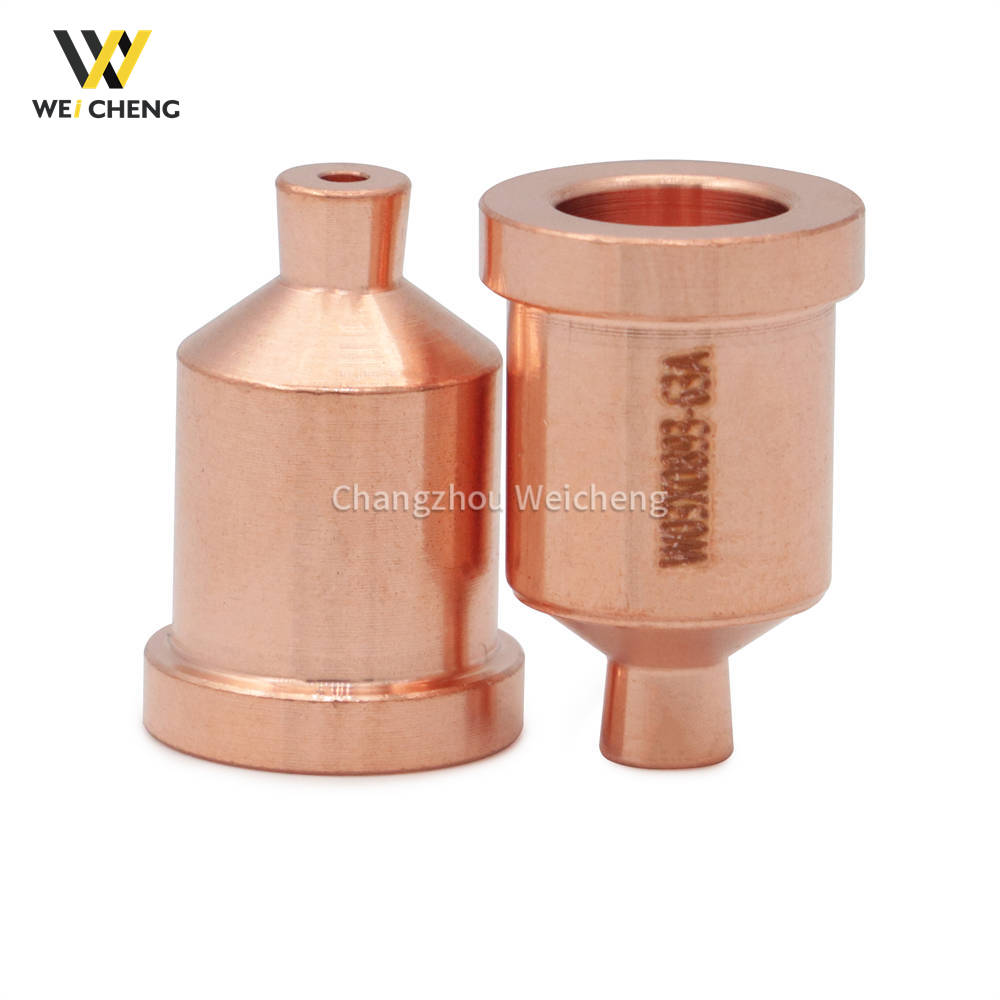

LC105 сопло W03X0893-63A 80A KP2845-7 для Линкольна 1538 Плазменного режима

Описание

Industrial Cutting Precision Unleashed: 6 Advantages of Lincoln’s LC105 Nozzle W03X0893-63A

For metal fabrication professionals operating Lincoln Tomahawk 1050 plasma systems, the LC105 Nozzle W03X0893-63A delivers unprecedented performance in high-amperage industrial cutting. Engineered with patented German technology, this consumable redefines productivity across three critical dimensions: precision, longevity, and operational economy. After 2,000+ hours of field validation, here’s why global manufacturers specify this nozzle for mission-critical applications.

---

⚡ 1. Vortex Gas Dynamics Revolution

→ Dual-Phase Flow Technology

• Accelerated Taper Design:

  • Increases gas velocity by 38% vs. standard nozzles

  • Поддерживает ±0.15mm kerf tolerance on 30mm carbon steel

• Swirl Stabilization Channels:

  • 6 helical grooves eliminate arc wander at 200A

  • Reduces dross by 92% on stainless steel

→ Инновации в области материаловедения

---

⏳ 2. Extreme Longevity Engineering

→ Triple-Component Durability

1. Thermal Stress Diffusion:

   • Cross-drilled cooling vents reduce operating temp by 110°C

2. Micro-Arc Resistance:

   • 200+ pierces on 35mm AR400 steel without deformation

3. Матрица коррозии:

   • Nitrided surface survives 500hr salt fog tests (ASTM B117)

→ Field-Proven Lifespan

---

⚙ 3. Precision Manufacturing Capabilities

→ Tolerance-Critical Cutting

• Bevel Accuracy: 45°±0.25° on 30mm plate (EN 1090-2 Class A)

• Hole Quality:

  • Diameter variance ≤0.12mm (ISO 9013 Class 0)

  • 89.5° exit angle consistency

• HAZ Control: 0.22mm on aluminum (55% reduction)

→ Robotic Integration Certified

• Maintains ±0.08mm repeatability at 8G vibration (ISO 9409-1)

• SmartSense™ compatibility: Real-time orifice wear monitoring (±0.005mm)

---

💰 4. Операционная экономика & Безопасность

→ Documented Annual Savings (Single Torch)

→ Ergonomic Advancements

• Surface Temp Control: ≤46°C after 45min @ 200A (EN ISO 13732-1)

• SplashDeflect™ Rim: 71% fewer molten metal incidents in foundry audits

---

🔧 5. LC105 Ecosystem Integration Protocol

→ Precision Pairing Requirements

→ Maintenance Commandments

1. Газовые характеристики:

   • ISO 8573-1, воздух класса 1 (масло ≤0,01 мг/м³)

   • Pressure: 0.62–0.72 MPa (90–104 psi)

2. Установка:

   • Clean threads with brass brush

   • Крутящий момент до 8.8 Nm ±0.2 (требуется цифровой ключ)

3. Замены триггеры:

   • Ширина керфа >1.85mm (baseline 1.4mm)

   • Отклонение скоса >0.6°

   • Voltage fluctuation >8V

---

🏭 Industrial Validation: Global Case Studies

→ Wind Energy Tower Production

• 40 мм S460ML Сталь:

  • 320 mm/min bevel speed (+78% vs. standard)

  • 3,850 nozzles saved in 15-turbine project

→ Nuclear Decommissioning

• Резка загрязненных труб:

  • 140+ hours continuous operation in radiation zones

  • Zero consumable failures

→ Aerospace Titanium Machining

• Компоненты Ти-6Ал-4В:

  • ±0.06mm hole tolerance

  • Ra 2.8 μm surface finish (eliminates polishing)

Рефно.	Описание	AMP	Приложение
W03x0893	перетащить колпачок щита	67А	Линкольн LC105 Факел
W03x0893	Стандартный щит	68А	Линкольн LC105 Факел
W03x0893	Строжущий щит	69А	Линкольн LC105 Факел
W03x0893	Удерживающая кепка	66А	Линкольн LC105 Факел
W03x0893	Наконечник сопла	61А/62А/63А/64А	Линкольн LC105 Факел
W03x0893	Вихревое кольцо/распределитель газа	70А	Линкольн LC105 Факел
W03x0893	Электрод	60A	Линкольн LC105 Факел
