Description
Technical Specifications

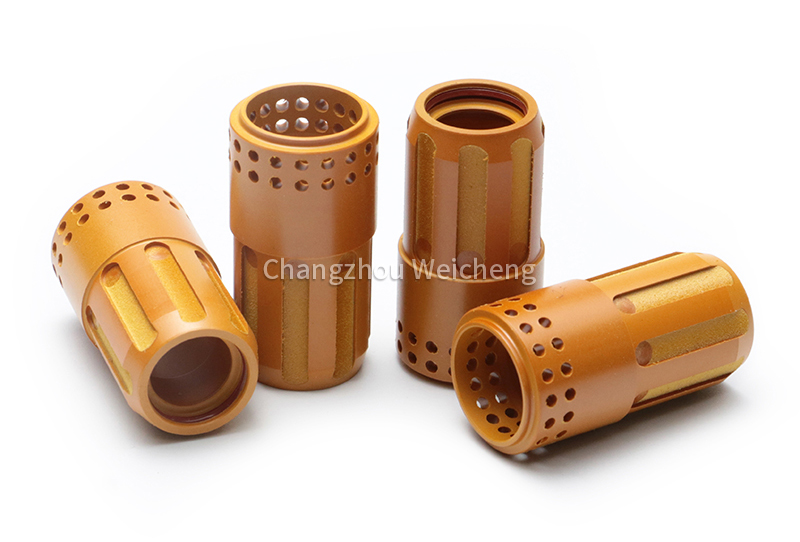

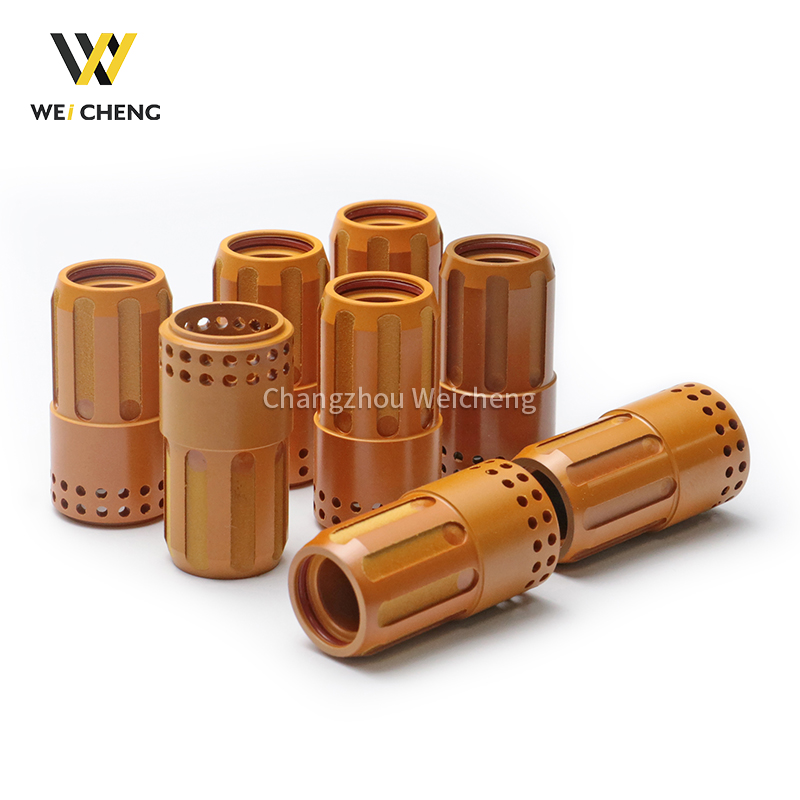

Swirl Ring Details:
- Part Number: 220857
- Compatible Systems: PowerMax 105 series (PMX45XP/65/85/105)
- Type: Standard configuration swirl ring
- Material: High-temperature polymer plastic
- Operating Temperature: Up to 180°C continuous
- Gas Flow Pattern: Standard helical design
- Thread Type: Standard PowerMax 105 threading
- Weight: 12 grams
- Expected Lifespan: 150-300 hours depending on usage
Performance Characteristics:
- Gas Flow: Creates controlled swirl for stable arc
- Arc Stability: Good performance for most cutting applications
- Pressure Drop: Minimal impact on system performance
- Compatibility: Works with standard cutting setups
What Makes 220857 Different
The Standard Choice: This is the “bread and butter” swirl ring for PowerMax 105 systems. It’s not the fanciest option, but it’s the one that works reliably for most cutting jobs. Many torch kits come with this model as standard equipment.
When to Choose 220857:
- General shop work: Perfect for everyday cutting tasks
- Mixed materials: Handles steel, stainless, and aluminum adequately
- Standard applications: When you don’t need specialized performance
- Budget-conscious shops: Good performance without premium pricing
Honest Performance Expectations:
- Reliable but not exceptional: Does the job without drama
- Standard lifespan: Typical wear patterns, nothing special
- Good value: Fair performance for the price point
- Wide compatibility: Works with most standard setups
Real-World Usage
What This Swirl Ring Handles Well:
- Daily fabrication work: Structural steel, plate cutting
- Repair and maintenance: General shop cutting tasks
- Mixed thickness work: From thin sheet to medium plate
- Standard amperages: Works fine across 45-105 amp range
Typical Applications:
- General metal fabrication
- Construction and repair work
- Auto body and frame cutting
- DIY and hobby projects
- Maintenance cutting tasks
Performance Reality: This isn’t a high-performance racing part – it’s the reliable workhorse. You won’t get the absolute best cut quality or longest life, but you’ll get consistent, predictable performance that most shops need.
Installation & Maintenance
Simple Installation:
- Turn off plasma cutter and allow cooling
- Remove torch components to access swirl ring
- Remove old swirl ring (may require gentle twisting)
- Install new 220857 swirl ring
- Reassemble torch components
- Test gas flow and begin cutting
Maintenance Tips:
- Check during regular consumable changes
- Replace when visibly damaged or performance drops
- Keep spare on hand – they’re inexpensive insurance
- Clean gas passages occasionally for best performance
When to Replace:
- Visible cracks or heat damage
- Arc becomes unstable
- Cut quality deteriorates
- As part of complete consumable change
Compatible Consumables
Standard Torch Setup:
- Electrode 220842: Most common electrode pairing
- Nozzle 220941: Standard nozzle for general cutting
- Shield 220817: Basic shield for protected cutting
Complete Kit Components:
- Retaining Cap 220854: Secures all components
- O-Ring Set: For proper sealing
- Gas Diffuser: Ensures even gas distribution
Compared to Other Swirl Rings
220857 vs 220947:
- 220857: Standard performance, lower cost
- 220947: Enhanced performance, higher price
- Which to choose: 220857 for general work, 220947 for precision cutting
Cost vs Performance: The 220857 offers good value for typical cutting jobs. If you need maximum performance or are doing precision work, consider upgrading to 220947. For everyday shop use, this one does fine.
| PMX65A/85A/105A | 220842 | Electrode | PMX125A | 220971 | Electrode |
| 220941 | Nozzle | 220975 | Nozzle | ||
| 220816 | Nozzle | 420158 | Nozzle | ||
| 220819 | Nozzle | 420169 | Nozzle | ||
| 220990 | Nozzle | 420168 | Shield | ||
| 220817 | Shield | 420156 | Shield | ||
| 220993 | Shield | 220976 | Shield | ||
| 220857 | Vortex Ring | 420000 | Shield | ||
| 220994 | Vortex Ring | 220997 | Vortex Ring | ||
| 220854 | Fixed Cover | 220977 | Fixed Cover | ||
| 220953 | Fixed Cover | 428144 | / | ||
| 220818 | Shield | 428145 | / | ||
| 220992 | Shield | 428548 | / | ||
| 220948 | Shield | 428147 | / | ||
| 220955 | Shield | PMX1250A | 120926 | Electrode | |
| 220931 | Shield | 120927 | Nozzle | ||
| 220930 | Nozzle | 120931 | Nozzle | ||
| 220947 | Vortex Ring | 120932 | Nozzle | ||
| 220797 | Nozzle | 120980 | Nozzle | ||
| 220991 | Nozzle | 220007 | Nozzle | ||
| 220798 | Nozzle | 220006 | Nozzle | ||
| 228716 | Noumenon | 120929 | Shield | ||
| 228735 | / | 120930 | Shield | ||
| 228737 | / | 120925 | Vortex Ring | ||
| / | / | / | 120928 | Fixed Cover | |
| MAX200 HT2000 | 220021 | Electrode | GPR130 | 220181 | Electrode |
| 20608 | Nozzle | 220182 | Nozzle | ||
| 20605 | Nozzle | 220183 | Shield | ||
| 20689 | Nozzle | 220187 | Electrode | ||
| 20690 | Nozzle | 220188 | Nozzle | ||
| 20424 | Shield | 220189 | Shield | ||
| 20448 | Shield | 220179 | Vortex Ring | ||
| 20607 | Vortex Ring | 220176 | Fixed Cover | ||
| 120837 | Fixed Cover | 220756 | Fixed Cover | ||
| 20423 | Fixed Cover | 220173 | Fixed Cover | ||
| 20963 | Water Pipe | 220747 | Fixed Cover | ||
| HPR260 | 220352 | Electrode | HSD130 | 220487 | Electrode |
| 220354 | Nozzle | 220525 | Nozzle | ||
| 220353 | Vortex Ring | 220530 | Nozzle | ||
| 220761 | Shield | 220489 | Nozzle | ||
| 220356 | Shield | 220492 | Nozzle | ||
| 220435 | Electrode | 220532 | Shield | ||
| 220439 | Nozzle | 220491 | Shield | ||
| 220764 | Shield | 220536 | Shield | ||
| 220436 | Vortex Ring | 220488 | Vortex Ring | ||
| 220760 | Fixed Cover | 220890 | Nozzle | ||
| 220637 | Fixed Cover | 220892 | Nozzle | ||
| 220571 | Water Pipe | 220891 | Nozzle | ||
| 220340 | Water Pipe | 220521 | Water Pipe | ||
| MAXPRO200 | 220528 | Electrode | 220529 | Vortex Ring | |
| 220578 | Fixed Cover | IF YOU NEED OTHER MODELS YOU CAN CONSUL CUSTOMER SERVICE | |||
| 220937 | Electrode | ||||
| 420044 | Nozzle | ||||
| 420045 | Shield | ||||
| 220488 | Vortex Ring | ||||
| 220936 | Fixed Cover | ||||
| 220935 | Fixed Cover | ||||
| 220831 | Nozzle | ||||
| 220832 | Shield | ||||
Engineering usage examples：
Ratings & Reviews:
We wanted to take a moment to share some awesome feedback we’ve been getting from our customers. Seriously, it’s been amazing to hear how much you all love our products and services!
From global, folks are telling us that our products are not just meeting their expectations, but blowing them out of the water! Whether it’s the quality, performance, or just how easy they are to use, we’re hearing nothing but great things.
And let’s talk about our customer service! Customers have mentioned how friendly and helpful our team is. We’re all about making sure you have the best experience possible.
Your feedback means the world to us. It drives us to keep improving and innovating so we can continue to deliver top-notch products and service. Thank you for being such amazing customers! We’re excited to keep this journey going with all of you. Here’s to more great times ahead!
Quality & Support
What We Promise:
- This swirl ring will fit PowerMax 105 systems properly
- Standard performance within normal parameters
- Replacement if defective upon arrival
- Honest advice about when to upgrade
What’s Realistic:
- Performance varies with cutting conditions
- Lifespan depends on your specific usage
- Not the longest-lasting option available
- Good enough for most applications
Getting Help:
- Compatibility questions: We’ll confirm fit
- Performance concerns: Let’s troubleshoot together
- Upgrade advice: We’ll help you decide what you need
- Technical support: Real people who understand plasma cutting
Ordering Information
For Business Customers:
- Bulk Orders: Volume pricing for shops, contractors, and manufacturers
- Regular Supply: Set up recurring orders for consistent inventory
- Priority Shipping: Rush delivery options for urgent needs
Individual Orders Also Welcome:
- Small Quantities: Individual rings or small packs available
- Same Service: DIY users and small shops get the same quality support
- Current Stock: Usually ships within 48 hours
- International Shipping: Worldwide delivery (customs fees may apply)
Straightforward Pricing: We price these fairly based on volume. Bulk customers get better rates, but everyone gets honest pricing without markup games. It’s a standard consumable, priced like one.
Frequently Asked Questions
Q: What’s the difference between 220857 and 220947?
A: 220857 is the standard version, 220947 has enhanced design for better performance. Choose based on your needs and budget.
Q: How long will this swirl ring last?
A: Typically 150-300 hours of cutting time, depending on your usage patterns and cutting conditions.
Q: Can I use this for precision cutting work?
A: It works, but if precision is critical, consider upgrading to 220947 for better performance.
Q: Is this the same as the original equipment?
A: Yes, this matches the specifications of the standard swirl ring that comes with many PowerMax 105 setups.
Q: Should I keep spares on hand?
A: Good idea. They’re inexpensive and swirl rings can fail unexpectedly, especially in heavy-use environments.
Material Performance Guide
Carbon Steel:
- Performance: Good for general cutting
- Edge Quality: Adequate for most applications
- Speed: Standard cutting speeds
- Recommendation: Works fine for typical steel work
Stainless Steel:
- Performance: Handles stainless adequately
- Edge Quality: Good with proper technique
- Speed: May need to slow down for best results
- Recommendation: Suitable for general stainless work
Aluminum:
- Performance: Basic aluminum cutting capability
- Edge Quality: Fair to good depending on thickness
- Speed: Standard aluminum cutting speeds
- Recommendation: Works for general aluminum tasks
Storage & Handling
Proper Storage:
- Keep in original packaging until needed
- Store in clean, dry environment
- Avoid extreme temperatures
- Handle carefully to prevent cracking
Installation Tips:
- Ensure torch is completely cool before installation
- Check for proper seating
- Don’t force if resistance is felt
- Verify gas flow after installation
