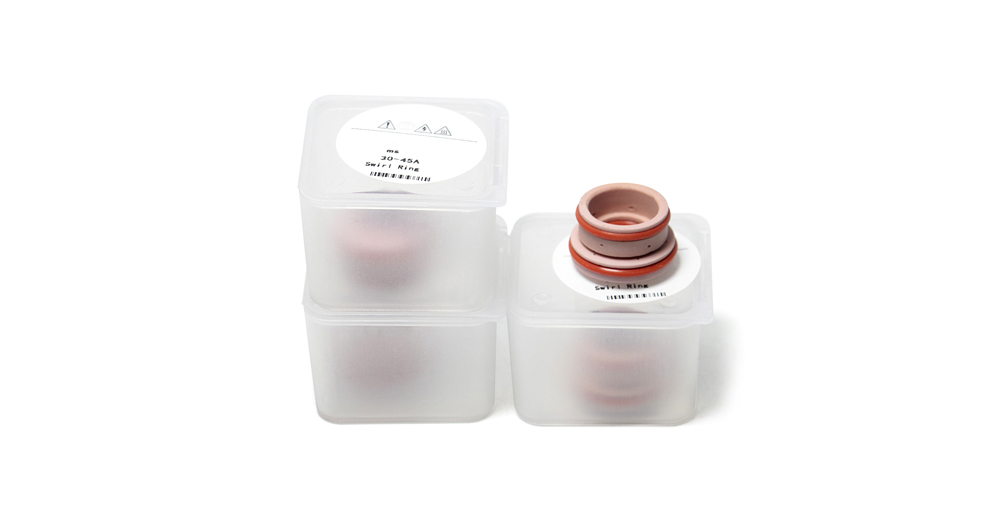

HPR130 260 Swirl Ring 220180 Plasma Torch Consumable

Description

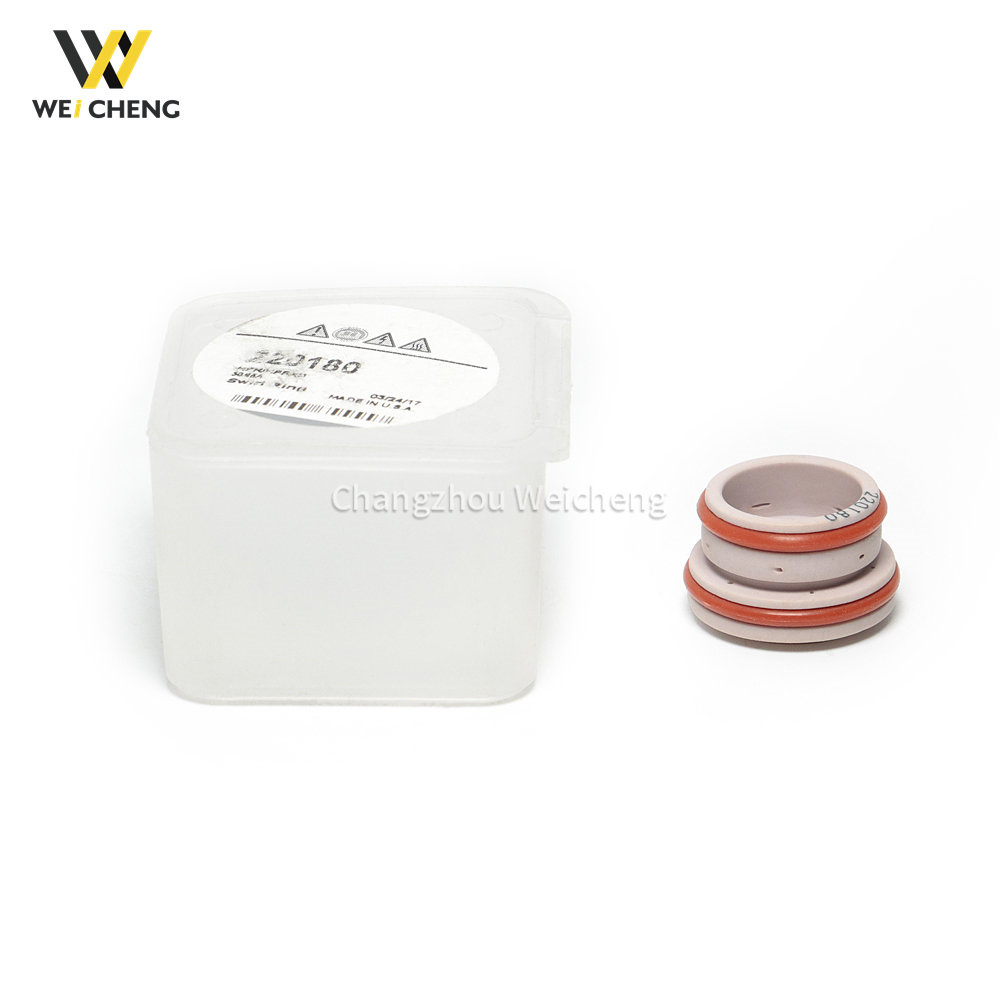

HPR130 260 Swirl Ring 220180: The Precision Vortex Generator for Superior High-Definition Plasma Cutting Performance

In the intricate ecosystem of high-definition plasma cutting, achieving consistent, dross-free cuts with exceptional edge quality is a symphony of perfectly tuned components. While the nozzle and electrode capture much of the attention, the component that orchestrates the fundamental stability of the plasma arc often operates in anonymity: the swirl ring. For the Hypertherm HPR130 system operating with its 130-amp consumables, this critical conductor is the HPR130 260 Swirl Ring 220180. This precision-engineered part is the definitive vortex generator, designed not just to function, but to optimize the very formation of the plasma arc. Its performance is the invisible hand guiding cut quality, consumable protection, and system reliability, making the genuine HPR130 260 Swirl Ring 220180 a non-negotiable element for any serious fabricator.

This comprehensive guide delves into the pivotal role of the HPR130 260 Swirl Ring 220180. We will examine its core function in plasma physics, the high-performance materials that ensure its durability, and the direct consequences of its compromise. Through detailed technical specifications, a clear comparative analysis, and a breakdown of its synergistic relationships within the torch, this article will demonstrate why specifying the genuine 220180 swirl ring is essential for unlocking the full, precision-engineered potential of your HPR130 investment.

The Core Function: Architect of the Plasma Arc

The HPR130 260 Swirl Ring 220180 is a precisely machined component seated within the torch body, directly upstream of the electrode. Its mission is singular yet profound: to impart a controlled, high-velocity rotational spin—or vortex—to the incoming plasma gas. This engineered turbulence is not random chaos; it is a calculated physical transformation that creates a stable, columnar plasma arc. This vortex centers the arc for maximum focus, creates a low-pressure zone for reliable pilot arc transfer, and forms a protective boundary layer that shields the nozzle from the arc’s full thermal energy. In essence, the HPR130 260 Swirl Ring 220180 is the foundational component that transforms pressurized gas into a precision cutting tool.

Core Selling Points of the HPR130 260 Swirl Ring 220180:

• Foundational Arc Stability for Elite Cut Quality: The precision-machined channels in the HPR130 260 Swirl Ring 220180 are calibrated for the exact flow rates of the HPR130 system. A perfect, symmetrical vortex yields a perfectly stable arc, which directly translates to the HPR130’s legendary cut quality: near-vertical edges, exceptionally smooth cut faces, minimal heat-affected zone, and drastically reduced dross across a wide range of materials and thicknesses.

• Primary Defense Against Costly Consumable Failure: A stable arc is a safe arc. By preventing the plasma arc from randomly attaching to the nozzle bore (a condition known as double-arcing), the 220180 swirl ring is the most important component protecting your high-cost nozzle and electrode from instantaneous, catastrophic destruction.

• Guarantee of Reliable Arc Ignition: The low-pressure core created by the strong vortex is critical for the pilot arc to cleanly “jump” to the workpiece. A genuine, unworn HPR130 260 Swirl Ring 220180 ensures consistent, first-time arc starts, eliminating frustrating misfires that waste time and consumables, especially during automated piercing sequences.

• Optimized for Multi-Gas Process Flexibility: Engineered to perform flawlessly with the HPR130’s full suite of process gases—from oxygen for mild steel to nitrogen for stainless and argon-hydrogen for aluminum—the 220180 swirl ring delivers consistent vortex stability regardless of chemistry, ensuring peak performance in any application.

• OEM-Ensured System Integrity: As a genuine Hypertherm component, it guarantees perfect dimensional fit, gas sealing, and alignment within the HPR130 torch. This perfect integration is vital for maintaining the system’s designed gas dynamics and electrical characteristics, which cannot be assured with aftermarket alternatives.

Technical Specifications & Product Parameters

The performance of the HPR130 260 Swirl Ring 220180 is codified in its exacting design specifications.

Performance Comparison: Genuine vs. Worn vs. Non-Genuine Swirl Ring

The impact of the HPR130 260 Swirl Ring 220180 is most dramatically understood by examining the consequences of its absence or failure.

*This analysis reveals a fundamental truth: the HPR130 260 Swirl Ring 220180 is a low-cost, high-impact insurance policy. Its failure initiates a cascade of expensive and disruptive problems.*

Material Science & Construction: Engineered for an Invisible Battle

The HPR130 260 Swirl Ring 220180 operates in a relentless environment of extreme heat, high pressure, and chemical exposure.

• Advanced High-Temperature Polymer: Typically manufactured from a premium polymer like polyimide, chosen for its exceptional thermal stability, maintaining strength and shape at continuous temperatures exceeding 500°F (260°C). This prevents deformation that would alter the critical gas flow angles.

• Precision Machining for Gas Dynamics: The vortex-generating channels are not simply drilled; they are machined or molded with micron-level precision. The angle, surface finish, and consistency of each port are critical to creating a unified, coherent swirl. The genuine 220180 swirl ring is a product of this exacting manufacturing.

• Low Thermal Conductivity & Self-Lubrication: The polymer’s inherent properties prevent it from becoming a heat sink and allow it to function without external lubrication, even when in contact with hot metal parts, ensuring consistent performance and easy serviceability.

• Chemical Resistance: The material is inert to the various process gases, preventing breakdown, outgassing, or the creation of contaminants that could enter the plasma stream and degrade cut quality.

Ideal Application Scenarios & Critical Maintenance Triggers

The HPR130 260 Swirl Ring 220180 is essential in every HPR130 application, but vigilance is required in specific situations.

1. After Any Nozzle Failure (Especially Double-Arcing): A catastrophic nozzle failure often forces superheated gas and debris backward. Always replace the swirl ring after replacing a double-arced nozzle.

2. During Scheduled Consumable Set Changes: As part of a disciplined maintenance routine, inspect the HPR130 260 Swirl Ring 220180 every 2-3 complete nozzle/electrode changes. Look for carbon tracking, port erosion, or any discoloration.

3. When Troubleshooting Unexplained Quality Drops: If cut quality deteriorates despite new electrodes and nozzles, and machine parameters are correct, the 220180 swirl ring should be the first component inspected and likely replaced.

4. Preventative Maintenance in CNC/Production Environments: In high-uptime automated systems, proactively replacing the swirl ring on a scheduled basis (e.g., with every 5th nozzle change) is a cheap and effective way to prevent process variation.

5. System Recommissioning or Overhaul: When bringing a system back from extended downtime or performing a full torch service, installing a new swirl ring ensures a clean baseline for performance.

System Integration: The Heart of the Consumable Stack

The HPR130 260 Swirl Ring 220180 is the linchpin connecting the torch’s gas supply to the cutting consumables. Its performance dictates the success of every component that follows.

• Electrode (220190): The swirl ring directs gas flow directly past the electrode. A proper vortex ensures stable arc attachment and even emitter erosion.

• Nozzle (220191): The nozzle focuses the vortex-stabilized arc. The two parts are codependent; both must be in perfect condition to achieve designed performance.

• Shield Cap (e.g., 220194): While the shield manages secondary gas, the primary plasma jet’s quality is determined upstream by the HPR130 260 Swirl Ring 220180.

• Torch Body O-Rings: The ring seals against the torch via vital O-rings. These must be intact and properly lubricated to maintain gas pressure and prevent leaks that would destroy the vortex.

The Essential Maintenance Commandment: The Swirl Ring is a Wear Item. It must be inspected and replaced proactively. Neglecting the HPR130 260 Swirl Ring 220180 is the single most common and costly mistake in plasma torch maintenance. Its minimal cost is insignificant compared to the value of the nozzles it protects and the productivity it preserves.

Conclusion: The Unseen Guardian of Quality and Cost

The HPR130 260 Swirl Ring 220180 stands as a powerful testament to the principle that in precision engineering, the most vital components are often those hidden from view. It is the unseen guardian of your cut quality, the protector of your consumable investment, and the guarantor of your system’s reliability. Compromising on this component undermines the entire value proposition of your high-definition plasma investment.
