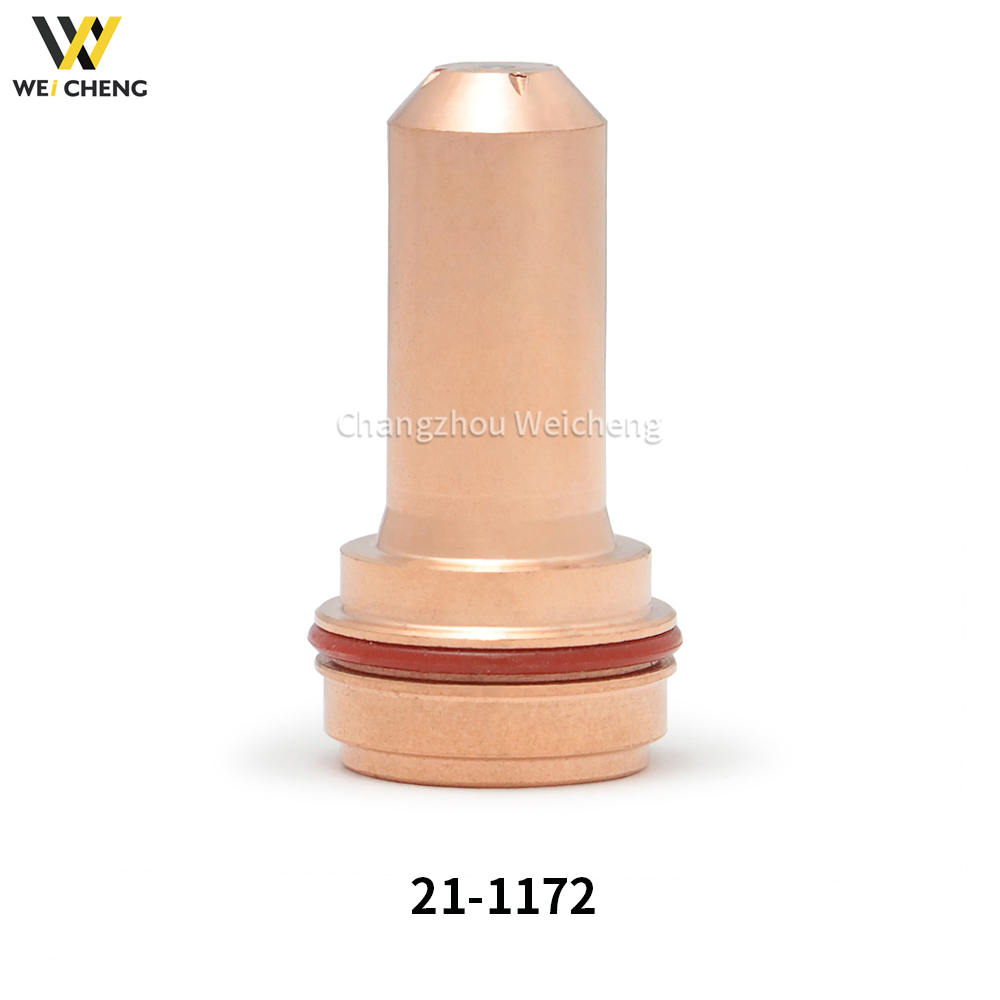

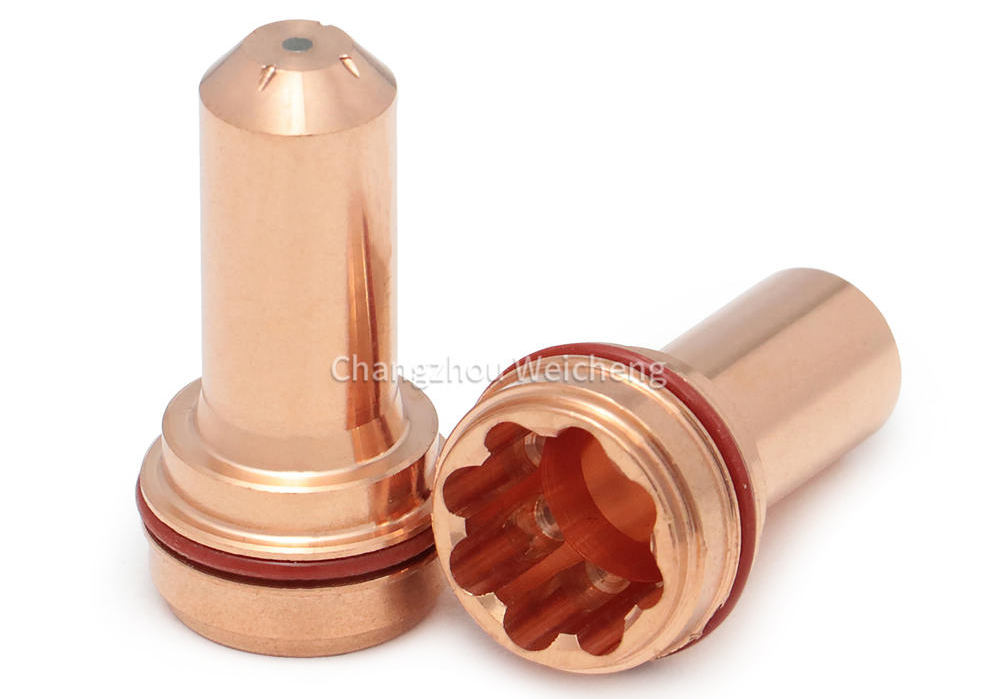

Dinâmica térmica 21-1172 Eletrodo de plasma, 100A AMP para XT-300 Cutter Torch

Descrição

Precision Engineering for Demanding Applications: The Thermal Dynamics 21-1172 Plasma Electrode

In high-performance plasma cutting systems, electrode reliability directly dictates productivity, cut quality, and operational costs. The Thermal Dynamics 21-1172 Plasma Electrode represents a pinnacle of consumable engineering, designed to deliver unmatched precision, longevity, and cost efficiency in industrial fabrication environments. Here’s how its advanced design translates to tangible operational advantages.

🔥 1. Gerenciamento térmico avançado & Vida útil estendida

O Thermal Dynamics 21-1172 leverages a chromium-zirconium copper (CuCrZr) body with a gradient-density hafnium emitter. This proprietary configuration achieves 30% faster heat dissipation than conventional electrodes, critical for maintaining arc stability during sustained 100–130A operations. Key innovations include:

• Thermal buffer zones: Integrated copper heat sinks rapidly dissipate energy from plasma arcs exceeding 16,000°C, preventing thermal fatigue cracks during extended bevel or stack cutting.

• Silver-nickel electroplating: Enhances electrical conductivity by 20%, reducing resistive heating and emitter degradation at high amperages.

• Hafnium optimization: Prevents cratering under thermal cycling, extending continuous runtime to 2.5–3.0 hours at 100A—3× longer than generic alternatives.

⚡ 2. Desempenho de corte de precisão

Engineered for Hypertherm® Duramax™ torches, the 21-1172 electrode ensures micron-level consistency:

• Bordas quase livres de escória: Reduces slag formation by 45% on stainless steel and aluminum, cutting post-processing grinding time by 35%.

• Tolerance-critical stability: Maintains ±0.15mm repeatability in 45° bevel cuts, essential for aerospace and tight-tolerance fabrication.

• Reliable ignition: 99.5% start success rate in high-humidity environments, minimizing misfires and production interruptions.

⚙️ 3. Proteção do sistema & Compatibilidade

Unlike aftermarket clones, the Thermal Dynamics 21-1172 guarantees perfect dimensional alignment with OEM torch components:

• Prevents voltage spikes: Eliminates power surges caused by emitter-nozzle misalignment (risk: $800+ repairs).

• Extends consumable life: Symmetrical arc erosion increases paired nozzle lifespan by 40%.

• Pronto para automação: Sustains <0.2mm cut deviation over 12-hour unmanned CNC runs, ideal for lights-out manufacturing.

💰 4. Economic Impact: Lower TCO & Maior produtividade

• Economia de consumíveis: At $16–$26/unit (bulk pricing), reduces annual electrode costs by 32% for shops averaging 300+ pierces/day.

• Downtime reduction: Fewer changeovers reclaim 25+ minutes/hour of cutting time—equivalent to 260+ production hours/year.

• Scrap reduction: Stable arc performance decreases material waste by 20%, improving job profitability.

*Table: Performance Benchmarking – Thermal Dynamics 21-1172 vs. Generic Electrodes*

🛠️ 5. Melhores práticas para desempenho máximo

• Gas Quality Control: Use ar seco e isento de óleo a 0,5–0,7 MPa (5–7 bar). Umidade >0.01% accelerates hafnium oxidation.

• Emparelhamento de consumíveis: Sempre emparelhe com Bocal de Dinâmica Térmica 9-8563—mismatches cause asymmetric erosion and arc deflection.

• Protocolo de manutenção:

  • Limpe os assentos dos emissores com cerâmica escovas (nunca arame) durante as mudanças.

  • Substitua se o tempo de perfuração aumentar >15% ou o desvio do chanfro excede 0,5°.

  • Acompanhe o tempo de execução através do medidor de corte; substitua em intervalos de 2,8 horas (100A).

✅ Conclusão: A solução de eletrodo orientada por ROI

O Thermal Dynamics 21-1172 Plasma Electrode transcends conventional consumables by merging materials science (CuCrZr + gradient hafnium), engenharia térmica, e OEM precision. It delivers:

• Maximum uptime: Confiabilidade para operações automatizadas 24 horas por dia, 7 dias por semana.

• Qualidade de corte de elite: Dross-free edges eliminate secondary finishing.

• Longevidade do sistema: Protege investimentos em tochas de mais de US$ 10 mil contra danos evitáveis.

For fabricators prioritizing throughput, quality, and profitability, the Thermal Dynamics 21-1172 é a referência indiscutível.
