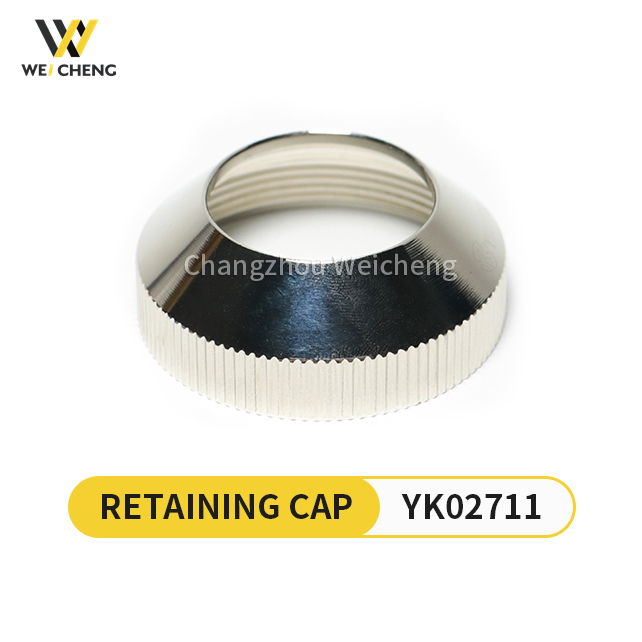

Yk330 Retaining Cap YK02711: The Heavy-Duty Fastener for Ultra-High Amperage Cutting Integrity

In the extreme operational realm of ultra-high amperage plasma cutting—where systems like the Yk330 are tasked with severing steel plate exceeding two inches thick—every component is subjected to unprecedented stress. The forces involved demand not just performance, but absolute mechanical integrity. The component that bears the brunt of securing the entire cutting assembly under these conditions is the retaining cap. For the formidable Yk330 plasma cutting system, the Yk330 Retaining Cap YK02711 is more than an accessory; it is a mission-critical, engineered fastener. This component is responsible for maintaining perfect consumable alignment, withstanding brutal physical and thermal shocks, and ensuring the sealed environment necessary for a stable cutting process. This guide provides an in-depth analysis of the YK02711, detailing its robust design, pivotal role, and why it is an indispensable OEM part for professionals operating at the zenith of plasma cutting power.

The Critical Role of the Yk330 Retaining Cap YK02711 in Extreme Conditions

The Yk330 Retaining Cap YK02711 is the final, threaded outer component that clamps the nozzle assembly—including the swirl ring and associated seals—onto the torch body of the Yk330 system. In an environment defined by immense energy, its functions are foundational to safety and performance:

• Ultra-Secure Mechanical Retention: Its primary purpose is to apply immense, uniform clamping force to hold the nozzle perfectly square and immovable against its seat. At amperages above 200A, any vibration or shift in the nozzle during a pierce or cut can instantly destabilize the arc with catastrophic results.

• Defining Precision Standoff: The cap’s exterior is machined to an exact height, serving as the system’s primary drag shield and standoff guide. This is crucial for maintaining a consistent arc length, which directly governs cut edge squareness and kerf control on massive workpieces.

• Management of High-Volume Secondary Gas: The YK02711 is designed with optimized venting to handle the high-flow shielding gas required for such a powerful system. This gas flow clears the deep kerf of molten metal and provides additional cooling.

• Frontline Armor Against Extreme Spatter: During the piercing of 2-inch+ plate, the eruption of molten metal is violent. This cap acts as a sacrificial, heavily armored barrier, absorbing this impact to protect the precision-machined nozzle and the torch head itself.

• Maintaining System Seals Under Pressure: It ensures a leak-proof seal for both the high-pressure plasma gas and the secondary shielding gas, a non-negotiable requirement for maintaining cutting efficiency and safety.

Using a substandard cap in a Yk330 system is an extraordinary risk, inviting misalignment, rapid consumable destruction, and potentially dangerous operational failures.

---

Core Engineered Advantages of the YK02711 Model

1. Forged for Maximum Clamping Force and Alignment

The Yk330 Retaining Cap YK02711 is constructed from a high-strength, high-mass copper alloy, often with a heavy-duty industrial plating. Its design prioritizes structural rigidity to withstand the high torque required for installation without deformation. This ensures it delivers the clamping force needed to keep the massive Yk330 nozzle and electrode in flawless concentric alignment, the bedrock of arc stability.

2. Engineered for Thermal Mass and Heat Sinking

In ultra-high amperage cutting, radiant heat is prodigious. The substantial thermal mass of the YK02711 cap allows it to act as a significant heat sink. By absorbing and dissipating radiant heat, it actively protects the torch head’s threads and internal components from thermal degradation, extending the service life of the entire front-end assembly.

3. Wear-Resistant Standoff Rim for Consistent Drag Cutting

The standoff rim is reinforced and often specially treated or coated for maximum abrasion resistance. This is essential because, at this power level, drag cutting is common. The cap must maintain its precise height despite constant sliding across rough, hot plate, ensuring every inch of a long cut is executed at the perfect torch-to-work distance.

4. Robust Thread Design for Secure, Leak-Free Sealing

The threads on the YK02711 are cut with precision but are also robust and deep to prevent galling or stripping under high torque. A perfect thread seal is critical to prevent any loss of gas pressure or coolant (in some designs), which would immediately degrade cutting performance and pose a safety hazard.

5. System-Wide Protection and Cost Control

This cap is the guardian of the most expensive consumables in the plasma world. By ensuring perfect alignment and taking the physical abuse, it directly extends the life of the specialized Yk330 nozzle and electrode. In a system where a single consumable set represents significant cost, this protection is a major contributor to manageable operating expenses.

---

Technical Specifications & Performance Data

Performance Comparison: Yk330-Grade vs. Standard Heavy-Duty Caps

---

Material Science & Construction Analysis

The Yk330 Retaining Cap YK02711 is a product of metallurgical and mechanical engineering tailored for an extreme use case.

• Base Material: High-Strength Copper Alloy (e.g., CuNiSi)

  • Why It’s Critical: While copper is chosen for conductivity and machinability, the alloy is fortified with elements like nickel and silicon. This dramatically increases its tensile strength and resistance to annealing (softening) at sustained high temperatures. It must remain mechanically sound when the torch head is too hot to touch.

• Surface Engineering: Thick Industrial Plating & Treatments

  • Why It’s Critical: The plating is not merely for corrosion resistance. A thick electroless nickel or chrome plating is applied to:

    1. Provide Extreme Surface Hardness: To resist abrasion and spatter erosion.

    2. Create a Superior Non-Stick Barrier: To allow massive spatter to be chipped away easily without damaging the underlying metal.

    3. Enhance Thermal Properties: Some platings can improve heat radiation.

• Design for Mechanical Load: The cap’s geometry is often more substantial, with thicker walls and a broader seating surface to distribute the immense clamping forces evenly and prevent the nozzle from tilting under the violent conditions of a high-energy pierce.

---

Primary Industrial Application Scenarios

The Yk330 Retaining Cap YK02711 is specified for the most severe cutting tasks in industry:

• Piercing and Cutting Ultra-Thick Plate (2″ / 50mm and above): This is its core purpose. The cap must survive the explosive force of initiating a cut in such material.

• Heavy Fabrication for Mining and Energy Sectors: Manufacturing and repairing the largest components for draglines, crushers, and pressure vessels, where cut quality on massive parts is non-negotiable.

• Shipyard and Offshore Construction: Performing long, straight cuts and complex shapes on the thickest marine-grade steel plates.

• High-Productivity CNC Cutting of Heavy Sections: On automated gantry systems, the cap’s reliability and consistent standoff are essential for running unmanned or lights-out production cycles.

• Demolition and Heavy Scrap Processing: Where the material composition is unknown and the cutting conditions are abusive, the cap’s ruggedness is a primary defense.

---

Related Consumables & System Components

The YK02711 cap is the anchor for the Yk330’s specialized consumable set. It must be used with its matched partners:

• Yk330 Plasma Nozzle (e.g., specific high-amperage model): The component it directly secures. They are an inseparable pair.

• Yk330 Plasma Electrode (Ultra-High Amperage type): Must be replaced as a set with the nozzle. Alignment is everything.

• Yk330 Swirl Ring: This internal component creates the gas vortex; the cap provides the sealed environment for it to function.

• Yk330 Torch Body: The threads on the torch must be in perfect condition to receive this cap. Using a damaged cap can ruin these threads.

• High-Torque Installation Tool: A proper wrench is needed to apply the correct installation torque without damaging the cap.

---

Frequently Asked Questions (FAQ)

Q1: What torque should be used to install the Yk330 Retaining Cap YK02711?
A: Consult the Yk330 system manual for the exact specification, as it is critical. It will be a firm, specified torque value (e.g., 15-20 ft-lbs), not just “hand-tight plus a little.” Under-torquing can cause leaks and movement; over-torquing can damage threads. Always use a calibrated torque wrench if specified.

Q2: Why does this cap cost significantly more than caps for lower-amperage torches?
A: The cost reflects its advanced material science, massive construction, and precision manufacturing. It is an engineered safety component for a half-million-dollar-plus cutting system. The cost of a failure—a ruined torch head, destroyed consumables, project downtime—dwarfs the part’s price. It is built to prevent those failures.

Q3: How do I inspect this cap for wear?
A: Inspect it every time you change consumables. Look for: Thread damage (any nicks or galling), standoff rim wear (is it still even and square?), cracks (especially near the vent holes), and permanent spatter fusion that distorts its shape. If the cap shows any deformation, it must be replaced.

Q4: Can a worn YK02711 cap cause the torch to overheat?
A: Indirectly, yes. If the cap’s threads are worn and it cannot create a proper seal, it may allow cooling gas to leak or disrupt the gas flow that cools the nozzle. More directly, if it is warped and causes nozzle misalignment, the resulting erratic arc generates excessive, inefficient heat that soaks back into the torch.

Q5: Is it acceptable to use a generic “high-amperage” cap on a Yk330 torch as a temporary fix?
A: This is strongly discouraged and considered a major safety risk. A generic cap cannot guarantee the alignment, sealing integrity, or mechanical strength required. Using one invites a high probability of a catastrophic double-arc event, which could destroy the nozzle, electrode, and cause extensive, costly damage to the Yk330 torch head itself. There is no safe “temporary” substitute for this OEM component.

Conclusion: The Keystone of Ultra-High Amperage Reliability

The Yk330 Retaining Cap YK02711 is the definitive keystone in the arch of ultra-high amperage plasma cutting reliability. It is the component that translates the raw, formidable power of the Yk330 system into controlled, precise, and safe cutting action. Its role transcends fastening; it is a vital participant in thermal management, alignment, and system protection.

For operations that push the boundaries of plasma cutting—in shipyards, mega-fabrication, and heavy industry—compromising on this component is unconscionable. The genuine Yk330 Retaining Cap YK02711 is an essential investment in the integrity of your entire cutting process, safeguarding your equipment, ensuring consistent results, and upholding the safety standards required when working with the most powerful tools in the field. In the world of extreme cutting, only engineered certainty will suffice.

NAME	MODEL	SERIES
Inner Shield	YK02501	YK330
Nozzle	YK02417	YK330
Nozzle	YK02423	YK330
Electrode	YK02201	YK330
Electrode	YK02211	YK330
Swirl Ring	YK02301	YK330
Retaining Cap	YK02711	YK330
Shield	YK02702	Fog
Shield	YK02701	Dry
TUBE	YK02101	YK330
Retaining Cap	YK02601	YK330
Torch	YK02081	YK330
