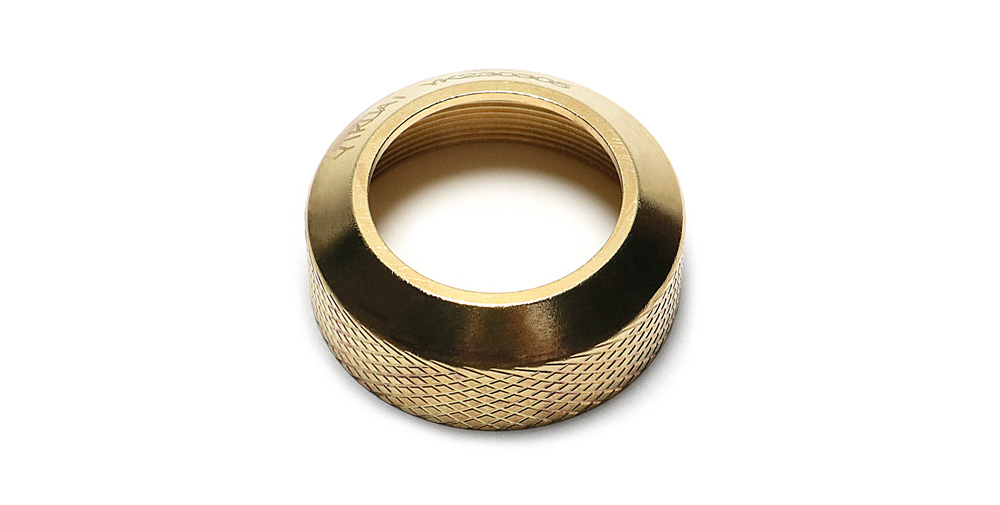

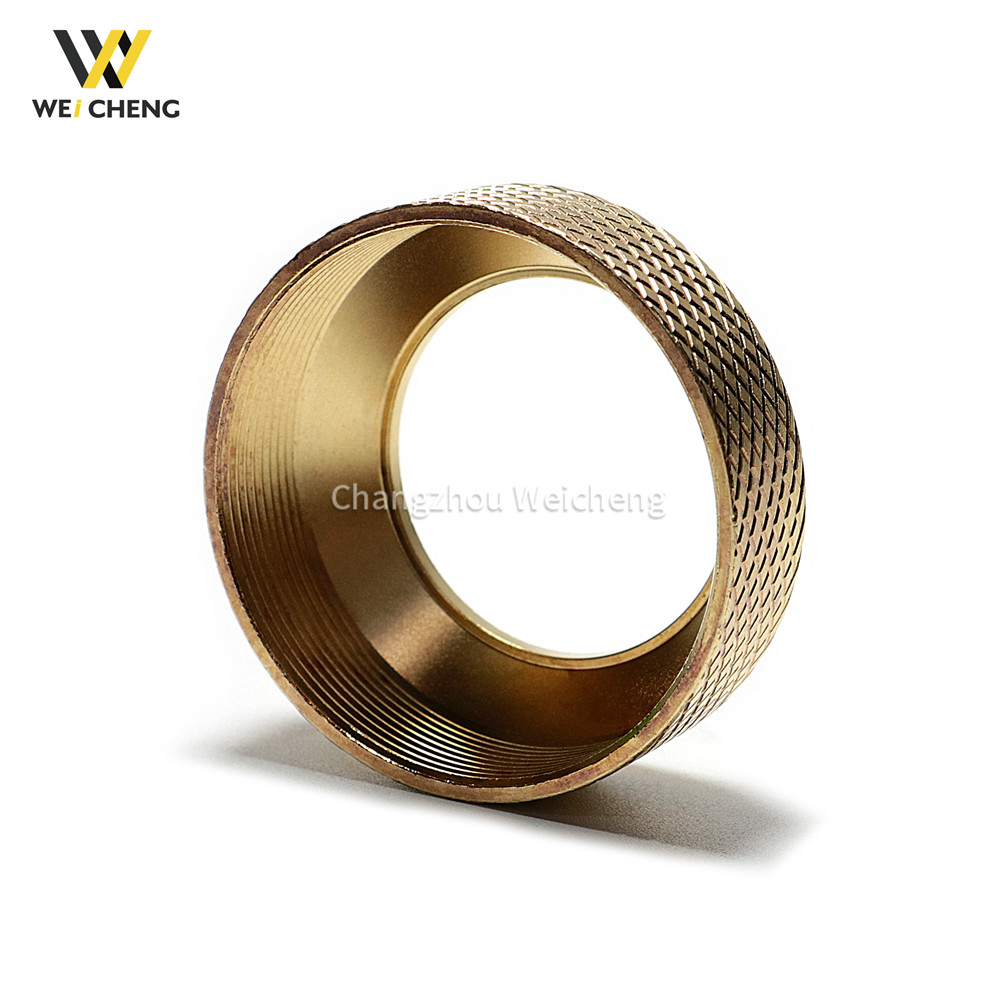

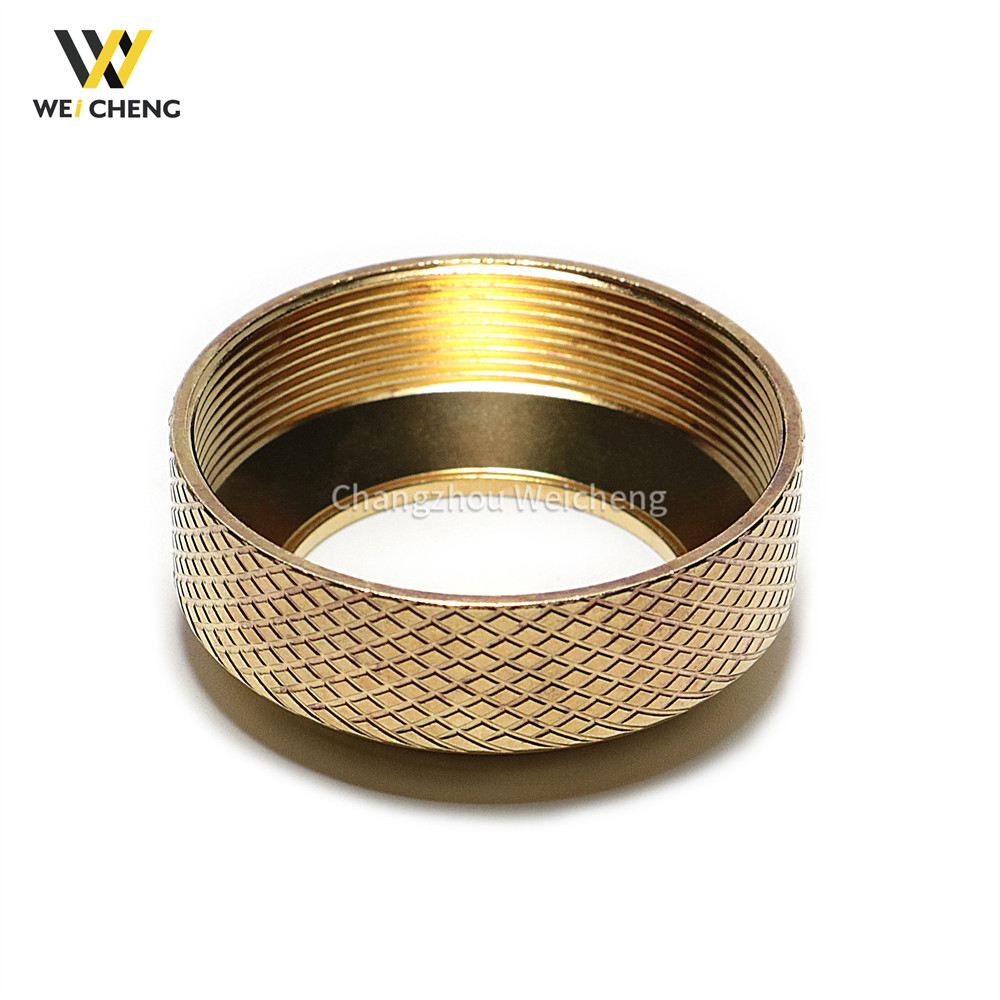

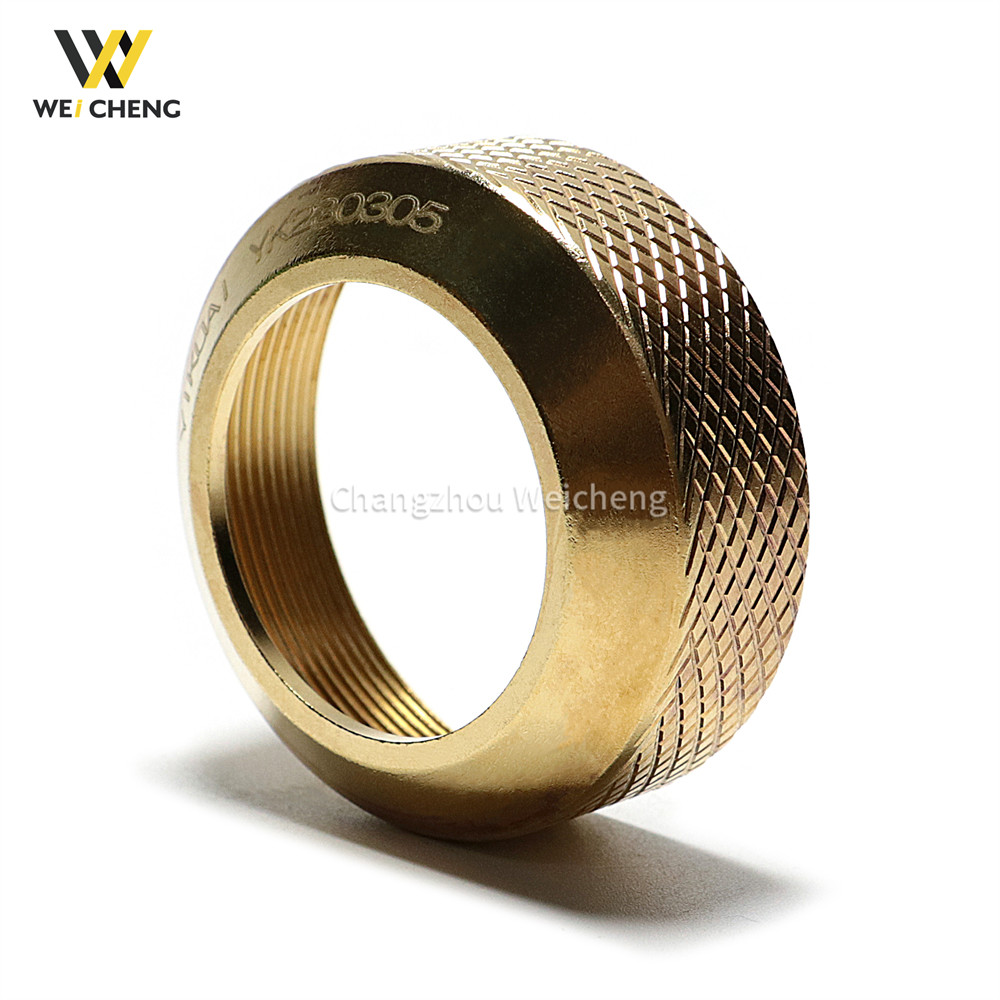

Yk300 Copper Retaining Cap YK230305: The Durable Conductor for Superior High-Amperage Torch Performance

In the high-energy world of industrial plasma cutting, where performance is measured in clean cuts and minimal downtime, every component’s material composition is a deliberate engineering choice. The retaining cap, a critical frontline consumable, is no exception. For operators of the powerful Yk300 plasma cutting system, the Yk300 Copper Retaining Cap YK230305 represents a masterclass in functional material selection. This component is engineered not just to secure and protect, but to actively participate in the thermal management and electrical efficiency of the cutting process. This definitive guide explores the unique advantages, robust construction, and essential role of the YK230305, demonstrating why its copper-centric design is pivotal for achieving peak performance and longevity in heavy-duty cutting applications.

Understanding the Strategic Role of a Copper Retaining Cap

The Yk300 Copper Retaining Cap YK230305 is the primary, threaded outer component that secures the nozzle assembly to the torch body. While its basic functions are alignment and protection, its choice of material—high-conductivity copper—elevates its role. The YK230305 is designed to:

• Secure with Precision and Strength: It provides the clamping force to hold the nozzle perfectly square to the electrode, a non-negotiable requirement for a stable, centered plasma arc.

• Act as an Advanced Thermal Sink: Copper’s exceptional thermal conductivity allows the cap to actively draw heat away from the nozzle and the torch’s front end. This passive cooling is crucial during high-amperage, long-duration cuts on thick plate, protecting both the consumables and the torch body from excessive heat buildup.

• Establish Reliable Standoff Distance: Its machined exterior rim provides a consistent, durable dragging surface, maintaining the correct torch-to-workpiece distance for optimal cut quality.

• Manage Gas Flow Effectively: Designed vent holes shape the secondary shielding gas, aiding in dross removal and cut face cleanliness.

• Provide Superior Electrical Grounding: In many torch designs, the retaining cap is part of the pilot arc circuit or provides a critical grounding path. Copper’s excellent electrical conductivity ensures reliable arc starts and stable operation.

A standard or generic steel/brass cap cannot replicate these thermal and electrical benefits, making the genuine Yk300 Copper Retaining Cap YK230305 a performance-critical component.

---

Core Engineered Advantages of the YK230305 Model

1. Unmatched Thermal Conductivity for Enhanced Cooling

The primary advantage of the Yk300 Copper Retaining Cap YK230305 is its material. Copper’s thermal conductivity (≈385 W/m·K) is vastly superior to steel or brass. This allows the cap to rapidly absorb and dissipate radiant heat from the plasma arc, acting as a supplementary heat sink. This significantly reduces the thermal load on the nozzle and internal torch components, directly extending their service life, especially in demanding high-amperage applications.

2. Precision Alignment for Arc Stability

Manufactured from a machinable yet durable copper alloy, the YK230305 is crafted to exact OEM tolerances. This ensures it seats perfectly, applying uniform pressure to align the nozzle concentrically with the electrode. This precision is the foundation of a stable, focused plasma arc, which minimizes bevel, reduces dross, and produces clean, consistent kerfs.

3. Durability and Spatter Resistance

Despite copper’s relative softness, the YK230305 is engineered with a robust, often electroplated (nickel/chrome), construction. This provides a hard, wear-resistant exterior surface that can withstand the abrasion of dragging and resists the fusion of molten spatter. The plating makes the cap easy to clean and maintains the integrity of its gas ports and standoff rim over many operating cycles.

4. Optimized Electrical Performance

Copper’s role as an excellent electrical conductor is leveraged in the torch’s design. The Yk300 Copper Retaining Cap YK230305 ensures a low-resistance path for pilot arc current or system grounding. This contributes to more reliable arc ignition, especially in challenging start conditions, and supports overall electrical stability during cutting.

5. Cost Efficiency Through System Protection

By actively cooling and perfectly aligning the consumable stack, the YK230305 cap protects the more expensive nozzle and electrode from premature, heat-related failure and misalignment damage. This system-wide protection lowers the total cost of ownership by reducing the frequency of consumable changes and preventing costly torch body damage from overheating.

---

Technical Specifications & Performance Data

Performance Comparison: Copper vs. Standard Retaining Caps

---

Material Science & Construction Analysis

The Yk300 Copper Retaining Cap YK230305 is a product of purposeful metallurgical engineering:

• Core Material: High-Conductivity Copper Alloy

  • Why Copper? The choice is deliberate. In the plasma cutting environment, immense heat is generated. A steel cap would act as a thermal barrier, causing heat to concentrate in the nozzle and electrode. The copper cap, however, becomes a thermal conduit. It pulls this waste heat into its own mass and radiates it away, effectively lowering the operating temperature of the entire front-end assembly. This is analogous to a heat sink on a computer processor.

• Alloy Enhancement for Strength

  • While pure copper is soft, the YK230305 utilizes a copper alloy, often with small additions of elements like chromium or beryllium. This increases the material’s tensile strength and resistance to deformation (annealing) at high temperatures, ensuring the threads and structural shape remain intact under the mechanical stress of high-amperage cutting.

• Protective Surface Plating

  • A layer of nickel or chrome is applied to the copper substrate. This plating serves two vital functions:

    1. It provides a hard, wear-resistant shell that protects the softer copper from physical abrasion when dragging on the workpiece.

    2. It creates a non-stick surface that prevents molten spatter from welding itself to the cap, which preserves gas flow dynamics and simplifies cleaning.

---

Primary Industrial Application Scenarios

The Yk300 Copper Retaining Cap YK230305 is particularly valuable in applications where thermal management is a bottleneck:

• Extended-Duration Cutting on Thick Plate: In shipyards or structural fab shops where the torch runs continuously on 1-inch+ material, the cap’s cooling effect is crucial for preventing heat buildup that leads to premature consumable failure.

• High-Duty Cycle Automated Systems: On CNC plasma tables performing repetitive cutting, the YK230305 helps maintain consistent consumable temperature across long production runs, ensuring cut quality doesn’t degrade.

• Environments with Limited Auxiliary Cooling: In systems or situations where torch cooling is primarily air-based, the copper cap provides an essential secondary cooling pathway.

• Cutting High-Conductivity Metals (e.g., Aluminum): These materials reflect more heat back to the torch. The copper cap helps manage this additional reflected thermal load.

• Operations Prioritizing Consumable Cost Reduction: For shops focused on lowering their cost-per-foot, the extended nozzle and electrode life facilitated by this cap directly impacts the bottom line.

---

Related Consumables & System Components

The YK230305 cap is designed to work in synergy with other genuine Yk300 components:

• Yk300 Plasma Nozzle (e.g., YK230303): The primary component it secures and cools.

• Yk300 Plasma Electrode (e.g., YK230302): Benefits indirectly from the lower operating temperature provided by the copper cap.

• Yk300 Swirl Baffle: Positioned inside the assembly; its performance is stable when operating temperatures are controlled.

• Proper Installation Wrench: Using the correct tool prevents damage to the cap’s flats and ensures proper torque is applied to achieve a secure seal without stripping the premium threads.

---

Frequently Asked Questions (FAQ)

Q1: Is the Yk300 Copper Retaining Cap YK230305 compatible with all Yk300 torches?
A: It is designed as the OEM-specified retaining cap for standard Yk300 torch configurations. Always verify compatibility with your specific torch model or serial number, but for most applications, the YK230305 is the correct, performance-enhanced component.

Q2: How does this cap actually extend the life of my nozzle?
A: By actively conducting heat away from the nozzle assembly, the YK230305 cap lowers the nozzle’s operating temperature. Heat is the primary driver of nozzle erosion (keyholing). A cooler nozzle erodes more slowly, lasts longer, and maintains its orifice geometry for better cut quality throughout its life.

Q3: The copper cap is more expensive. What is the tangible return on investment (ROI)?
A: The ROI is realized through extended consumable lifespan. If the copper cap increases your nozzle life by 25-50% (a common result in high-amperage use), the savings on nozzle and electrode costs will quickly surpass the initial price difference of the cap itself. Additionally, reduced downtime for changes adds to productivity gains.

Q4: How should I clean and maintain the copper retaining cap?
A: Take advantage of its plated surface. Use a brass wire brush or chipping hammer to remove spatter. Avoid using a steel brush on the exterior standoff rim, as it can scratch the plating. Inspect the threads and gas ports regularly for damage or blockages.

Q5: Can I use this cap for drag cutting?
A: Yes, it is excellent for drag cutting. The plated, durable standoff rim is designed for this purpose. The cap’s thermal mass also helps stabilize the temperature at the point of contact with the workpiece, contributing to more consistent drag cutting performance.

Conclusion: An Intelligent Upgrade for Demanding Applications

The Yk300 Copper Retaining Cap YK230305 is a testament to intelligent engineering, where material selection is directly leveraged to solve a core operational challenge: heat management. It transcends the role of a simple fastener, becoming an active system component that enhances cooling, improves electrical reliability, and protects your consumable investment.

For professionals operating Yk300 systems in demanding environments, upgrading to or specifying the genuine Copper Retaining Cap YK230305 is a smart, data-driven decision. It is an investment that pays measurable dividends in extended consumable life, improved cut consistency, and reduced thermal stress on your valuable cutting torch. In the pursuit of maximum efficiency and minimum downtime, choosing the right materials matters—and copper makes the critical difference.

NAME	MODEL	SERIES
Nozzle	YK230303	YK300
Electrode	YK230302
Swirl Ring	YK230307
Retaining Cap	YK230305
Retaining Cap	YK230306
Shield	YK230304
Water Tube	YK230308
Torch	YK230301
