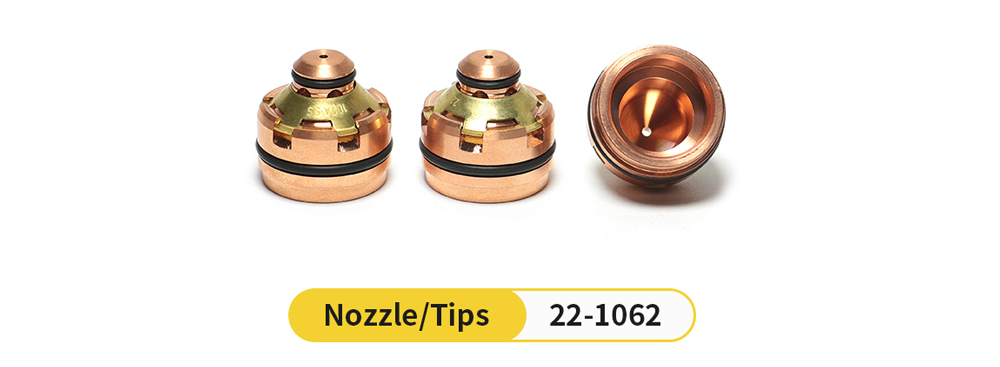

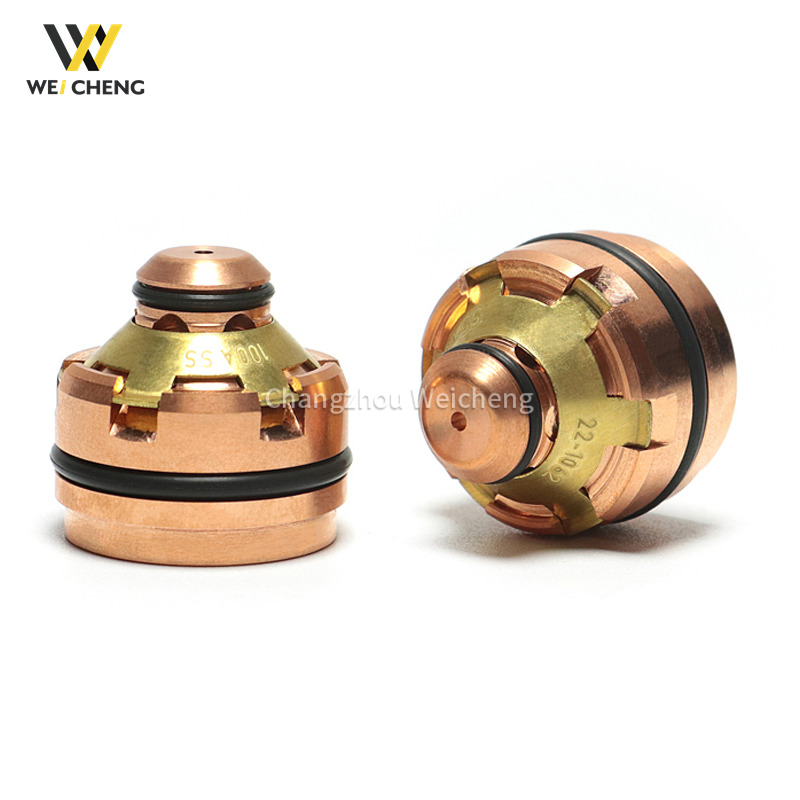

Thermal Dynamics 22-1062 Plasma Nozzle: Engineered for Precision Cutting in Demanding Applications

Introduction: Redefining Precision in Plasma Cutting Performance

In the competitive landscape of metal fabrication, achieving consistently high-quality cuts on a diverse range of materials separates exceptional workshops from average ones. The cornerstone of this precision lies in a critical, yet often overlooked component: the plasma nozzle. For professionals operating compatible Thermal Dynamics systems, the Thermal Dynamics 22-1062 Plasma Nozzle represents a pinnacle of consumable engineering, designed to deliver superior cut quality, extended operational life, and unmatched reliability across various applications.

Unlike standard nozzles that offer generic performance, the Thermal Dynamics 22-1062 Plasma Nozzle is the product of targeted engineering. It addresses the specific needs of fabricators who work with materials ranging from thinner gauge sheet metal to mid-range plate, where edge quality, minimal dross, and a square cut are paramount. This article serves as your comprehensive guide to understanding why the Thermal Dynamics 22-1062 Plasma Nozzle is an essential upgrade for achieving professional-grade results, enhancing productivity, and reducing long-term operational costs.

Core Innovation: Precision Engineering for Superior Performance

The Thermal Dynamics 22-1062 Plasma Nozzle is engineered with a focus on optimizing the plasma arc’s characteristics for clean, efficient cuts. Its design centers on creating a stable, concentrated, and cylindrical plasma stream. This is achieved through a precision-machined bore with tolerances measured in microns, ensuring the arc exits the nozzle with perfect symmetry. This stability directly translates to a narrower kerf width, significantly reduced top-edge rounding, and minimal bevel angle—key indicators of a high-quality cut.

The nozzle’s external geometry is equally important, designed to interface flawlessly with the corresponding shield cap and torch head. This perfect seal ensures that gas flow dynamics are not compromised, preventing air turbulence that can lead to oxidation and dross formation on the cut edge. When you install a Thermal Dynamics 22-1062 Plasma Nozzle, you’re not just changing a part; you’re calibrating your entire torch system for peak performance.

Key Performance Advantages:

• Exceptional Cut Quality: Delivers clean, square edges with dramatically reduced dross, minimizing post-cut cleanup time and labor.

• Extended Service Life: Manufactured from premium materials that resist wear and oxidation, providing more starts and inches of cut per nozzle.

• Optimized Arc Stability: The precision bore ensures a focused, steady plasma column, leading to consistent results in both manual and automated cutting.

• Enhanced Process Efficiency: Improves cut speed potential on appropriate material thicknesses and reduces gas consumption through optimal flow dynamics.

• Proven Reliability: As a genuine Thermal Dynamics component, it guarantees compatibility and performance you can trust.

Technical Specifications & Comparative Analysis

The tangible benefits of the Thermal Dynamics 22-1062 Plasma Nozzle become clear when compared to common alternatives. The following table highlights the critical differences that impact your shop’s output and costs.

Feature	Thermal Dynamics 22-1062 Plasma Nozzle (OEM Precision)	Standard Economy Nozzle	Impact on Your Work
Material & Plating	High-Conductivity Copper with Silver Plating	Lower-grade copper, often with inferior or no plating	Superior heat dissipation, better arc starts, longer life.
Bore Precision & Finish	CNC-Machined to Micron Tolerances; Mirror Finish	Cast or roughly machined; irregular surface	Stable arc for square cuts, narrow kerf, less material waste.
Cut Edge Quality	Excellent: Minimal dross, square edge, < 2° bevel	Poor: Excessive dross, pronounced bevel, rounded edge	Less grinding/prep time before welding, higher quality finish.
Consistency Over Life	Maintains performance >85% of its lifespan	Rapid degradation after initial use	Predictable results, fewer rejected parts, reliable scheduling.
Optimal Material Range	Superior on gauge to 1/2″ mild steel	Compromised performance across all ranges	Right tool for the job: better quality and speed on target materials.
Cost-Per-Cut Analysis	Lower overall cost (Longer life + less rework)	Higher overall cost (Frequent changes + cleanup labor)	Direct impact on your shop’s profitability and efficiency.

Material Science: The Foundation of Durability and Performance

The exceptional performance of the Thermal Dynamics 22-1062 Plasma Nozzle begins at the molecular level. It is crafted from oxygen-free high thermal conductivity (OFHC) copper. This specialized copper is free of impurities that can create localized hot spots or erratic electrical pathways, ensuring uniform current transfer and efficient heat conduction away from the critical bore area.

The nozzle is then finished with a high-purity silver plating. This coating is strategically chosen for its superior properties:

1. Enhanced Electrical Conductivity: Silver is the most conductive metal, promoting easier arc ignition and a more stable pilot arc.

2. Superior Thermal Conductivity: It further aids in dissipating heat, protecting the underlying copper from softening.

3. Oxidation Resistance: Silver forms a less tenacious oxide layer than copper, which helps maintain surface integrity and performance over time.

This combination of premium OFHC copper and functional silver plating is a hallmark of the Thermal Dynamics 22-1062 Plasma Nozzle, ensuring it can withstand the intense thermal and electrical demands of plasma cutting.

Ideal Application Scenarios

The Thermal Dynamics 22-1062 Plasma Nozzle excels in applications where cut quality and precision are critical:

• Custom Metal Fabrication & Artwork: Producing clean, precise cuts for architectural elements, sculptures, and signs where the cut edge is visible or requires minimal finishing.

• Sheet Metal Shops: Ideal for HVAC ductwork, enclosures, and cabinets made from thinner gauge steel, aluminum, and stainless steel.

• Prototyping and Short-Run Production: Where consistent part quality from the first piece to the last is essential for fit and function.

• Maintenance & Repair Operations (MRO): Making accurate cuts for patches, brackets, and modifications without excessive post-cut grinding.

• General Fabrication: An excellent all-around nozzle for shops that handle a mix of material thicknesses but demand professional results.

The Complete Cutting System: Related Products

To achieve the full potential of the Thermal Dynamics 22-1062 Plasma Nozzle, it must be part of a properly maintained system using compatible components:

• Matching Electrode: Always replace the electrode when installing a new nozzle. A worn electrode is the leading cause of premature nozzle failure. Use the correct Thermal Dynamics part number specified for your torch.

• Shield Cap (e.g., 22-1007): A clean, undamaged shield cap is vital for proper gas shielding and to protect the nozzle from spatter. Inspect it regularly.

• Swirl Baffle/Retaining Cap: This component creates the initial gas vortex. Ensure it is the correct, undamaged part for your torch model.

• Gas Supply: Use only clean, dry, compressed air or the specified gas. Moisture and oil contamination destroy nozzle performance and lifespan.

Frequently Asked Questions (FAQ)

Q1: How do I confirm the Thermal Dynamics 22-1062 Plasma Nozzle is compatible with my plasma cutter?
A: Compatibility is determined by your specific torch model, not just the power supply brand. The Thermal Dynamics 22-1062 Plasma Nozzle is designed for specific Thermal Dynamics torch families. The safest method is to check your operator’s manual, look at the parts diagram on the official Thermal Dynamics website, or contact an authorized dealer with your torch’s model and serial number.

Q2: What are the signs that my 22-1062 nozzle needs to be replaced?
A: Watch for these indicators: a decline in cut quality (increased dross, more bevel), difficulty starting the arc or maintaining a stable cut, a visible change in the bore shape (oval instead of round), or heavy, eroded pitting around the orifice. For consistent quality, don’t wait for complete failure—replace based on performance drop.

Q3: Why is this nozzle worth a higher price than a generic brand?
A: The Thermal Dynamics 22-1062 Plasma Nozzle offers a lower Total Cost of Ownership (TCO). The higher initial cost is offset by: 1) Longer Life: You buy fewer nozzles over time. 2) Less Rework: Superior cut quality reduces or eliminates grinding time. 3) Increased Productivity: Consistent performance means fewer process interruptions and higher-quality parts. The real cost is in your labor and scrap rate, not just the part price.

Q4: Can I use this nozzle for both aluminum and stainless steel?
A: While the Thermal Dynamics 22-1062 Plasma Nozzle can cut aluminum and stainless steel with compressed air, for optimal results on these materials—especially regarding edge oxidation and dross—a different process is recommended. For stainless steel and aluminum, using nitrogen as the plasma gas with a dedicated nozzle and electrode set (like a “FineCut” or specialty gas kit) will produce a far superior, weld-ready edge.

Q5: What is the proper way to install and maintain this nozzle?
A:

• Installation: Ensure the torch is cool. Clean all threads and sealing surfaces on the torch head. Hand-tighten the retaining cap firmly—over-tightening can damage threads.

• Maintenance: Between uses, inspect for spatter. Clean only with a dedicated nozzle reamer or soft tool. Never use a metal drill bit or abrasive pad, as this will destroy the precision bore and plating. Store in a clean, dry environment.

Conclusion: The Definitive Choice for Quality-Conscious Professionals

The pursuit of excellence in metal fabrication is defined by attention to detail. The Thermal Dynamics 22-1062 Plasma Nozzle embodies this principle, transforming your plasma cutter from a simple cutting tool into a precision instrument. By investing in this OEM-engineered component, you are making a clear commitment to quality, efficiency, and professional results.

In an industry where time is money and quality is reputation, the right consumable is not an expense—it’s a strategic advantage. Choose the component engineered to enhance your work. Choose the Thermal Dynamics 22-1062 Plasma Nozzle.

Elevate your cutting standards. For precision, reliability, and performance you can measure in every cut, switch to the Thermal Dynamics 22-1062 Plasma Nozzle today.
