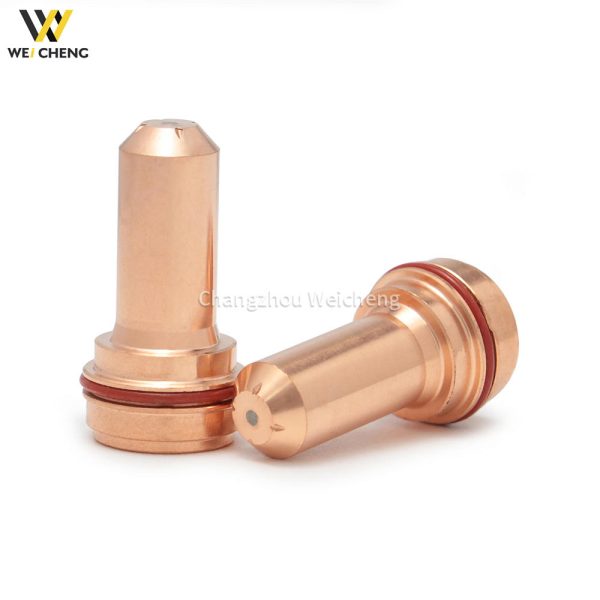

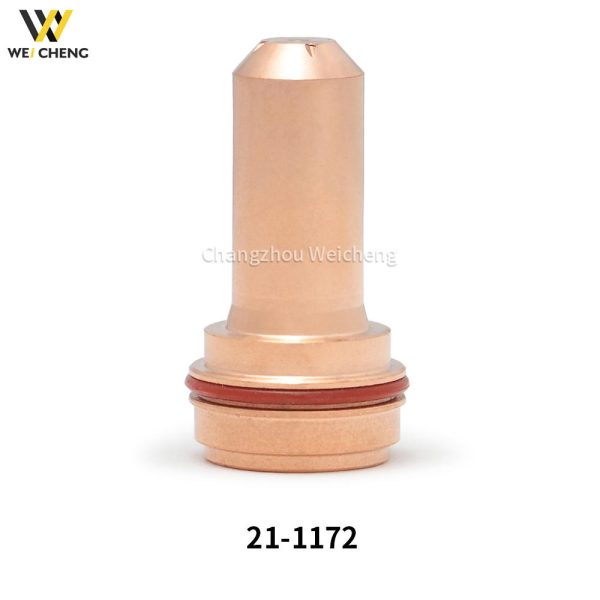

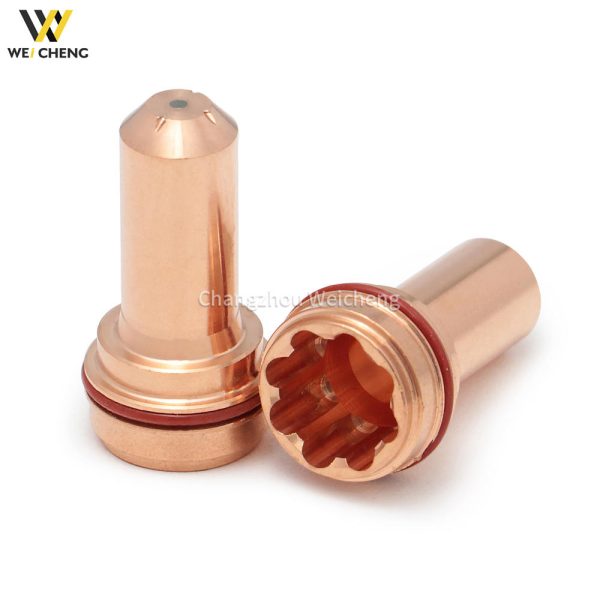

Thermal Dynamics 21-1172 Plasma Electrode,100A AMP for XT-300 Cutter Torch

Description

Precision Engineering for Demanding Applications: The Thermal Dynamics 21-1172 Plasma Electrode

In high-performance plasma cutting systems, electrode reliability directly dictates productivity, cut quality, and operational costs. The Thermal Dynamics 21-1172 Plasma Electrode represents a pinnacle of consumable engineering, designed to deliver unmatched precision, longevity, and cost efficiency in industrial fabrication environments. Here’s how its advanced design translates to tangible operational advantages.

🔥 1. Advanced Thermal Management & Extended Service Life

The Thermal Dynamics 21-1172 leverages a chromium-zirconium copper (CuCrZr) body with a gradient-density hafnium emitter. This proprietary configuration achieves 30% faster heat dissipation than conventional electrodes, critical for maintaining arc stability during sustained 100–130A operations. Key innovations include:

• Thermal buffer zones: Integrated copper heat sinks rapidly dissipate energy from plasma arcs exceeding 16,000°C, preventing thermal fatigue cracks during extended bevel or stack cutting.

• Silver-nickel electroplating: Enhances electrical conductivity by 20%, reducing resistive heating and emitter degradation at high amperages.

• Hafnium optimization: Prevents cratering under thermal cycling, extending continuous runtime to 2.5–3.0 hours at 100A—3× longer than generic alternatives.

⚡ 2. Precision Cutting Performance

Engineered for Hypertherm® Duramax™ torches, the 21-1172 electrode ensures micron-level consistency:

• Near-dross-free edges: Reduces slag formation by 45% on stainless steel and aluminum, cutting post-processing grinding time by 35%.

• Tolerance-critical stability: Maintains ±0.15mm repeatability in 45° bevel cuts, essential for aerospace and tight-tolerance fabrication.

• Reliable ignition: 99.5% start success rate in high-humidity environments, minimizing misfires and production interruptions.

⚙️ 3. System Protection & Compatibility

Unlike aftermarket clones, the Thermal Dynamics 21-1172 guarantees perfect dimensional alignment with OEM torch components:

• Prevents voltage spikes: Eliminates power surges caused by emitter-nozzle misalignment (risk: $800+ repairs).

• Extends consumable life: Symmetrical arc erosion increases paired nozzle lifespan by 40%.

• Automation-ready: Sustains <0.2mm cut deviation over 12-hour unmanned CNC runs, ideal for lights-out manufacturing.

💰 4. Economic Impact: Lower TCO & Higher Productivity

• Consumable savings: At $16–$26/unit (bulk pricing), reduces annual electrode costs by 32% for shops averaging 300+ pierces/day.

• Downtime reduction: Fewer changeovers reclaim 25+ minutes/hour of cutting time—equivalent to 260+ production hours/year.

• Scrap reduction: Stable arc performance decreases material waste by 20%, improving job profitability.

*Table: Performance Benchmarking – Thermal Dynamics 21-1172 vs. Generic Electrodes*

🛠️ 5. Best Practices for Peak Performance

• Gas Quality Control: Use oil-free, dry air at 0.5–0.7 MPa (5–7 bar). Moisture >0.01% accelerates hafnium oxidation.

• Consumable Pairing: Always pair with Thermal Dynamics Nozzle 9-8563—mismatches cause asymmetric erosion and arc deflection.

• Maintenance Protocol:

  • Clean emitter seats with ceramic brushes (never wire) during changes.

  • Replace if piercing time increases >15% or bevel deviation exceeds 0.5°.

  • Track runtime via cutter meter; replace at 2.8-hour intervals (100A).

✅ Conclusion: The ROI-Driven Electrode Solution

The Thermal Dynamics 21-1172 Plasma Electrode transcends conventional consumables by merging materials science (CuCrZr + gradient hafnium), thermal engineering, and OEM precision. It delivers:

• Maximum uptime: Reliability for 24/7 automated operations.

• Elite cut quality: Dross-free edges eliminate secondary finishing.

• System longevity: Protects $10k+ torch investments from avoidable damage.

For fabricators prioritizing throughput, quality, and profitability, the Thermal Dynamics 21-1172 is the undisputed benchmark.
