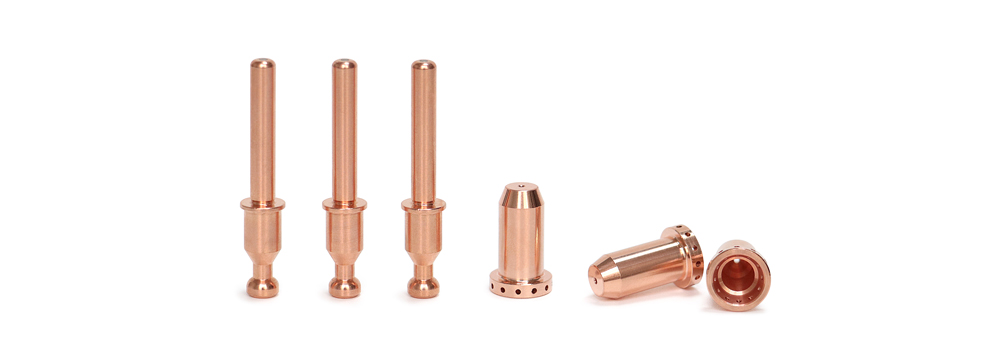

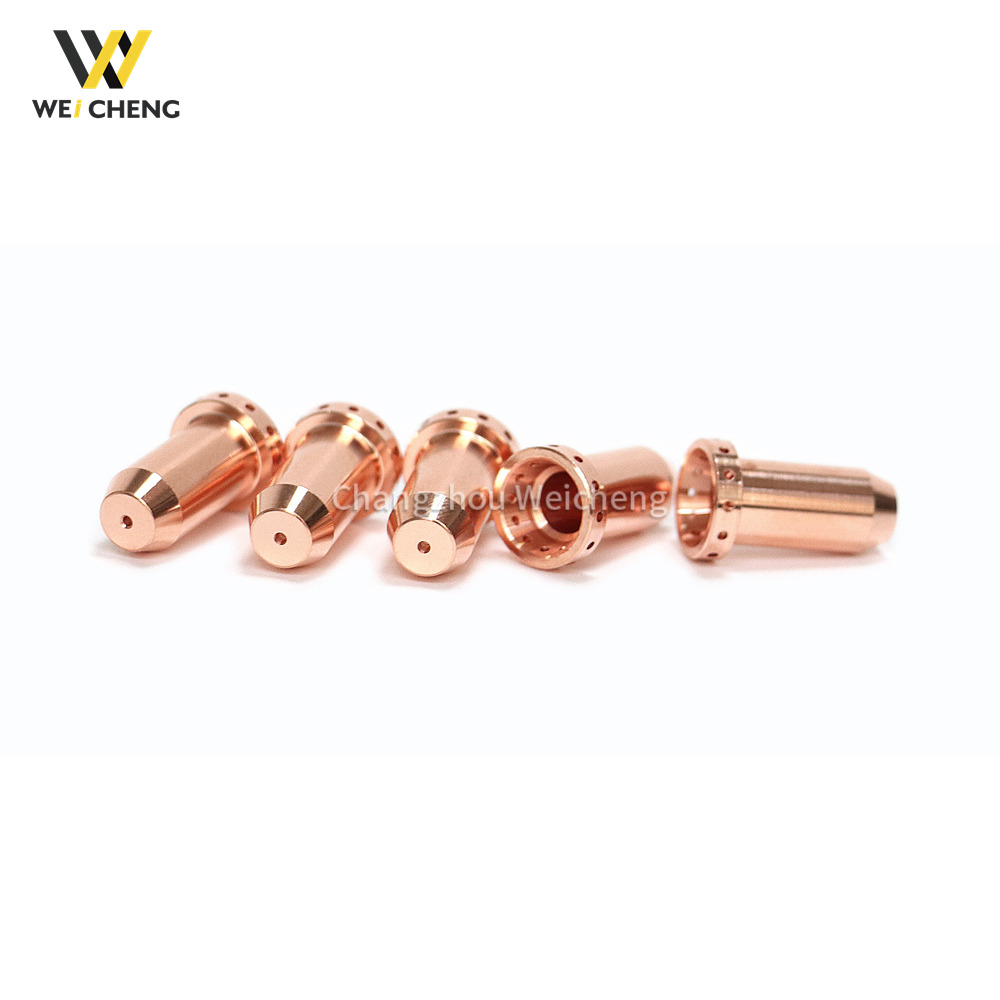

SL40 9-0094 Drag Tip: The Essential Consumable for Effortless, High-Quality Drag Cutting

Introduction: Revolutionizing Manual Plasma Cutting with Drag-and-Cut Simplicity

In the dynamic environment of maintenance shops, fabrication bays, and field service, the need for a plasma cutting process that is both fast and forgiving is paramount. For operators of the Hypertherm® SL40 plasma system, the SL40 9-0094 Drag Tip is not just a consumable—it is the key that unlocks the system’s most user-friendly and productive cutting mode: drag cutting. This specialized component transforms the manual cutting experience by allowing the torch to rest directly on the workpiece, eliminating the need for precise, steady hand-height control and enabling consistent, high-quality cuts with remarkable ease.

Unlike standoff nozzles that require maintaining a specific arc distance, the SL40 9-0094 Drag Tip is engineered for direct contact. Its design incorporates a durable, recessed nozzle surrounded by a sacrificial drag shield, which physically guides the torch along the metal surface. This intuitive method drastically reduces operator fatigue, speeds up cutting on thinner materials, and minimizes training time. This article serves as your definitive guide to understanding the design, benefits, and optimal use of the SL40 9-0094 Drag Tip, demonstrating why it is the go-to choice for professionals who value speed, simplicity, and reliable results in manual cutting applications.

Engineered for Contact: The Design Philosophy of the Drag Tip

The SL40 9-0094 Drag Tip is a consumable assembly specifically designed to enable the patented Drag Shield cutting technique. Its core innovation lies in its two-part construction: a durable copper nozzle housed concentrically within a proprietary, high-temperature composite drag shield. The shield’s extended front face is engineered to slide smoothly on the workpiece, physically setting the correct arc length (standoff distance) automatically.

When the torch trigger is pulled, the pilot arc initiates within the shielded cup. Once the arc transfers to the workpiece, cutting begins. The operator simply drags the torch along the cut line. The drag shield bears the physical contact and wear, protecting the critical nozzle orifice and ensuring a consistent cutting height. This eliminates the arc flutter and uneven cuts common when trying to manually hold a standoff distance, especially on long or intricate shapes.

Key Advantages of the SL40 9-0094 Drag Tip:

• Eliminates Steady-Hand Requirement: No need to maintain a perfect standoff distance, making clean cuts achievable for operators of all skill levels.

• Reduces Operator Fatigue: Allows the torch to be supported by the workpiece, freeing the operator to focus on guidance and speed.

• Faster Cutting on Thin Material: Optimized for rapid, clean cuts on sheet metal and materials up to approximately 3/16″ (5mm).

• Exceptional Cut Consistency: Produces uniform kerf and edge quality along the entire cut path, ideal for templates and patterns.

• Extended Nozzle Life: The sacrificial drag shield absorbs contact wear, protecting the more expensive nozzle component from damage.

Technical Specifications & Performance Comparison

Understanding when to use the SL40 9-0094 Drag Tip versus a standard shielded nozzle is crucial for optimal results. The following table clarifies the distinction.

Parameter	SL40 9-0094 Drag Tip (Drag Cutting)	SL40 Standard Shielded Nozzle (Standoff Cutting)	Best Use Case Scenario
Primary Cutting Method	Direct Contact (“Drag-and-Cut”)	Maintain a precise standoff distance (typically 1/16″ – 1/8″)	Drag: Fast, simple manual cuts. Standoff: Thicker plate, bevels, precision.
Ideal Material Thickness	Up to 3/16″ (5mm) Mild Steel	1/8″ to System Capacity (e.g., 1/2″ for SL40)	Drag: Sheet metal, HVAC, light gauge. Standoff: General fabrication, structural.
Operator Skill Required	Low to Moderate	Moderate to High (for consistent standoff)	Drag: Ideal for training, high-speed production.
Cut Quality on Thin Material	Excellent & Highly Consistent	Can be inconsistent if standoff varies	Drag tip provides superior repeatability on thin sheets.
Consumable Wear Point	Sacrificial Drag Shield (replaceable)	Nozzle Face & Bore	Drag shield is designed to wear, protecting the nozzle.
Process Speed	Very Fast for suitable thicknesses	Governed by operator ability to maintain speed/standoff	Drag enables maximum manual speed with consistency.

Visual Aid: *(Imagine an infographic with two side-by-side illustrations. Left: An operator smoothly dragging the torch with the 9-0094 tip along a line, producing a straight cut. Right: An operator struggling to maintain a steady arc height with a standard nozzle, resulting in a wavy cut line.)*

Material Science: Durability Through Layered Protection

The longevity and performance of the SL40 9-0094 Drag Tip are a result of its intelligent, two-material design. The internal nozzle is crafted from high-conductivity copper with a protective plating, similar to standard nozzles, responsible for constricting the plasma arc.

The true innovation is the external drag shield. This component is molded from a proprietary, fiber-reinforced ceramic composite. This material is chosen for its exceptional combination of properties:

• High-Temperature Resistance: Withstands the radiant heat from the arc and molten metal without deforming or melting.

• Abrasion Resistance: The hard, smooth surface slides over mill scale and rough surfaces with minimal wear.

• Electrical Insulation: Prevents the shield from becoming part of the electrical circuit, ensuring safety and proper arc transfer.

• Controlled Sacrificial Wear: It is designed to wear down evenly over time, providing a clear visual indicator for replacement before the nozzle is exposed to damage.

Ideal Application Scenarios

The SL40 9-0094 Drag Tip excels in applications where speed, ease of use, and consistency on thinner materials are the top priorities:

• Sheet Metal Fabrication: Perfect for HVAC ductwork, electrical enclosures, and light structural components.

• Maintenance & Repair Operations (MRO): Quickly cutting out damaged sections, modifying brackets, or trimming bolts on-site.

• Automotive Repair & Customization: Cutting body panels, exhaust components, or fabricating custom parts.

• Demolition and Scrap Processing: Rapidly cutting up light-gauge materials, rebar, or conduit.

• Artistic Metalwork and Signage: Allowing artists to follow complex templates or freehand designs with ease and control.

System Integration: The Complete Drag Cutting Consumable Set

The SL40 9-0094 Drag Tip is part of a matched consumable set designed for the drag cutting process. For correct and safe operation, it must be used with its specific partners:

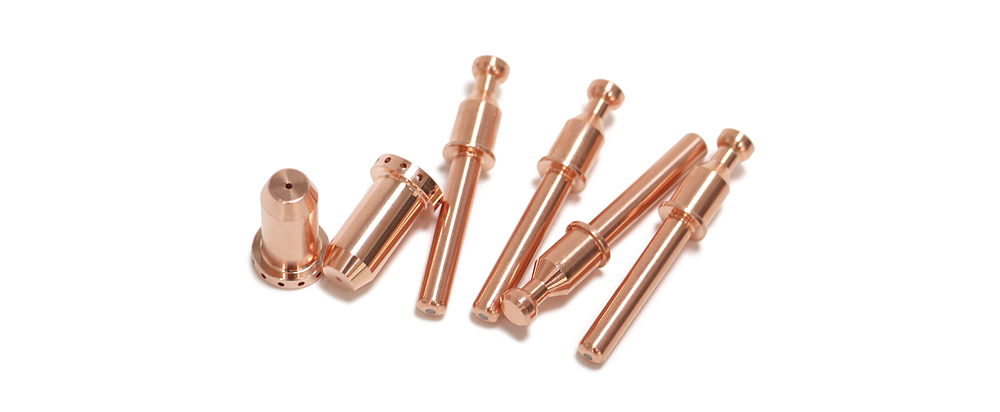

• Drag Cutting Electrode (e.g., 9-0093): This is mandatory. The electrode for drag cutting has a different emitter design optimized for the arc characteristics of this mode. Using a standard electrode will result in poor performance.

• Swirl Ring & Retaining Cap: Use the standard components specified for your SL40 torch. Ensure they are clean and in good condition.

• Power Supply Setting: Your Hypertherm SL40 power supply must be set to the correct amperage for the material and the “Drag” mode (if equipped). This mode may adjust gas flow and pilot arc parameters for optimal drag cutting.

Frequently Asked Questions (FAQ)

Q1: Can I use the SL40 9-0094 Drag Tip on any material thickness?
A: No. The SL40 9-0094 Drag Tip is specifically optimized for cutting thinner materials, typically up to 3/16″ (5mm) mild steel. Attempting to drag cut on thicker material can cause excessive shield wear, poor cut quality, and potential damage to the workpiece or tip. For thicker materials, you must switch to a standard shielded nozzle and use the standoff cutting technique.

Q2: How do I know when the drag shield is worn out and needs replacement?
A: Inspect the drag shield before each use. Replace the SL40 9-0094 Drag Tip when the protruding shield around the nozzle is worn down to the point where the nozzle face becomes exposed or nearly exposed. Continuing to use a severely worn drag shield will result in the nozzle making contact with the workpiece, causing double-arcing and immediate, costly damage to the nozzle and potentially the torch.

Q3: Is the drag cutting technique safe? It seems like the torch is short-circuiting.
A: Yes, it is a safe, manufacturer-engineered process. The drag shield is an electrical insulator. When the shield is in contact with the workpiece, the pilot arc initiates inside the cup. Once the arc ionizes a path, it transfers through the shield’s exit orifice to the workpiece. The shield itself does not create a direct electrical short. Always follow all standard plasma cutting safety procedures.

Q4: My drag tip seems to be wearing out very quickly. What could be the cause?
A: Rapid wear is usually caused by one of three factors: 1) Cutting material that is too thick, 2) Excessive downward pressure – you only need to let the weight of the torch rest on the shield, not push down, or 3) Cutting very abrasive surfaces like heavy rust or concrete-coated steel. Ensure you are using the correct technique and application.

Q5: Can I use a standard nozzle if I run out of drag tips?
A: Yes, your SL40 system will still function with a standard shielded nozzle (like a 9-8190). However, you must switch your technique to standoff cutting, maintaining a consistent 1/8″ arc distance. You will lose the benefits of the drag-and-cut simplicity, and cut quality on thin material may vary with your skill level.

Conclusion: Unlocking Simplicity and Speed in Your Shop

The SL40 9-0094 Drag Tip is more than a consumable; it is a productivity tool that simplifies one of the most common tasks in metalworking. By embracing the drag-and-cut technique, shops can accelerate training, improve results on thin materials, and reduce operator strain. It represents the smart application of engineering to solve a practical challenge, making professional-grade plasma cutting more accessible and efficient.

For any SL40 owner who regularly works with sheet metal or values a faster, easier manual cutting process, keeping a supply of SL40 9-0094 Drag Tips on hand is essential. It’s the simplest way to ensure every cut is straight, clean, and effortless.
