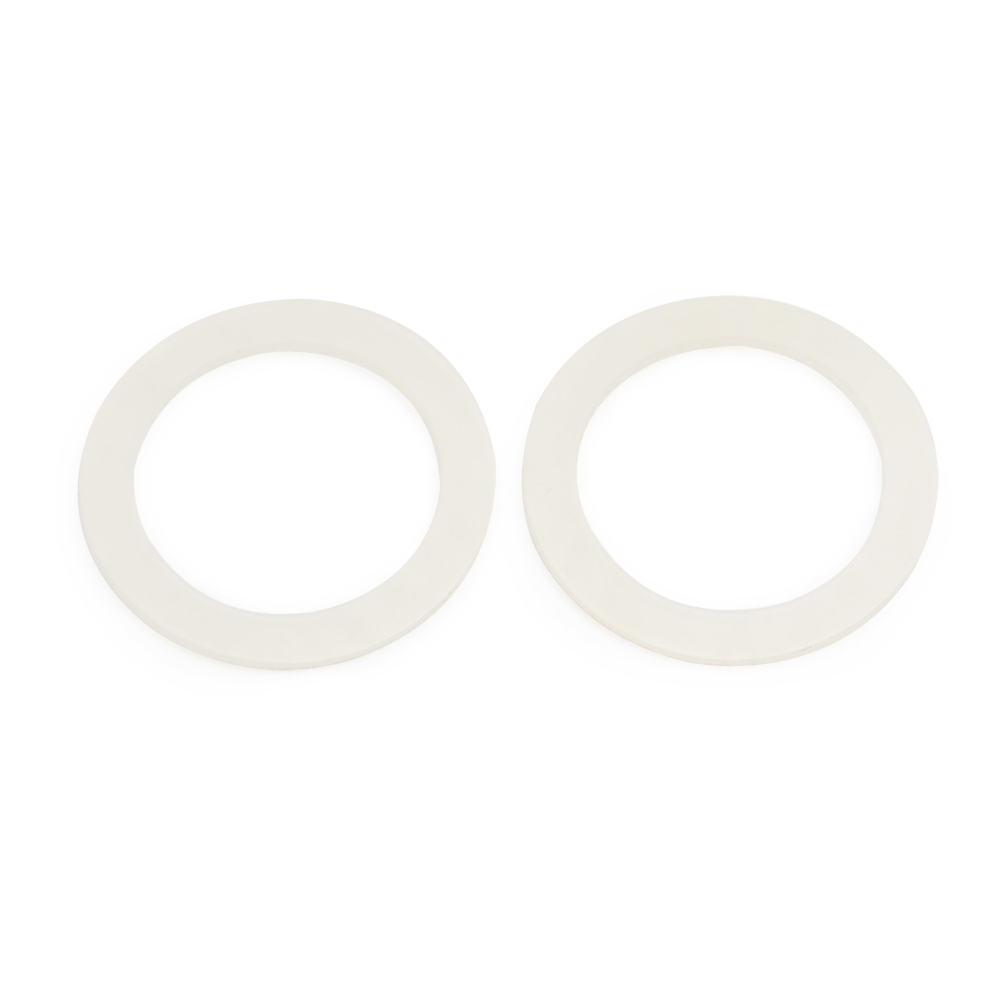

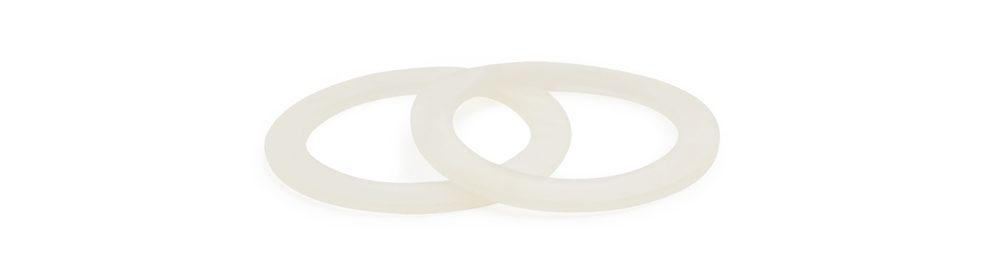

PWM300 Gasket 8-6512: The Essential Seal for Uncompromised Torch Performance and Reliability

Introduction: The Small Component with a Critical System-Wide Impact

In the high-stakes environment of industrial plasma cutting and welding, system integrity is paramount. Performance issues often arise not from the failure of major components, but from the degradation of the smallest, most overlooked parts. For PWM300 system operators, the PWM300 Gasket 8-6512 is precisely such a component—a precision-engineered sealing gasket that plays an indispensable role in maintaining torch efficiency, process stability, and operational safety. This is not a generic seal; it is the OEM-specified barrier designed to contain critical gases and coolants under extreme conditions, ensuring your PWM300 torch assembly functions as a perfectly sealed system.

A compromised or incorrect gasket can lead to a cascade of problems: gas leaks that ruin cut quality and waste expensive gases, coolant seepage that risks torch overheating and electrical failure, and the introduction of atmospheric contaminants that oxidize the weld or cut. The genuine PWM300 Gasket 8-6512 is engineered to prevent these failures. This guide details its design, material science, and the substantial operational benefits of using the correct seal, highlighting why it is a non-negotiable component for professionals committed to peak equipment performance and cost-effective operation.

Core Function: The Guardian of System Integrity

The PWM300 Gasket 8-6512 serves as a critical static seal within the torch assembly, typically seated between the torch body and the front-end consumable retaining mechanism (such as the swirl ring or nozzle retaining cap). Its primary functions are multi-faceted and vital:

1. Gas Sealing: It creates an airtight seal for the plasma and shield gas passages. Any leak here reduces gas pressure at the nozzle, leading to an unstable, oxygen-contaminated arc, poor cut quality, excessive dross, and wasted gas.

2. Coolant Containment (in liquid-cooled torches): In water-cooled PWM300 models, it seals the coolant circulation channels. A failure allows coolant to leak into gas passages or externally, causing immediate performance collapse and potential torch damage.

3. Electrical Isolation: It provides precise dielectric separation between components, preventing unintended electrical tracking or short circuits that can damage the torch’s power electronics.

4. Contaminant Exclusion: It acts as a barrier, preventing external contaminants like moisture, dust, or metallic spatter from entering the torch’s internal precision mechanics.

Key Advantages of the PWM300 Gasket 8-6512:

• Guaranteed Sealing Performance: Ensures 100% containment of gases and coolants as per original OEM design specifications.

• Maintains Optimal Process Parameters: Preserves correct gas pressures and flow dynamics for consistent, high-quality cuts and welds.

• Prevents Costly Secondary Damage: A single leak can lead to oxidized consumables, torch overheating, and component corrosion. This gasket prevents these chain-reaction failures.

• Extended Consumable Life: By maintaining a clean, dry, and correctly pressurized internal environment, it allows nozzles, electrodes, and swirl rings to achieve their full lifespan.

• Engineered Material Compatibility: Made from a compound specifically formulated to resist torch temperatures, ozone, and coolant chemicals without degrading.

Technical Specifications & Failure-Prevention Analysis

The value of the genuine PWM300 Gasket 8-6512 is best understood by analyzing the consequences of seal failure and comparing material properties.

Material Science: Engineered for the Hostile Torch Environment

The PWM300 Gasket 8-6512 is manufactured from advanced elastomer compounds, typically Fluorocarbon (FKM/Viton®) or similarly engineered materials. This selection is critical due to the unique environment inside a plasma torch:

• Ozone Resistance: The electrical arc generates ozone, a highly aggressive gas that rapidly deteriorates standard rubbers like nitrile. FKM is exceptionally resistant to ozone cracking.

• High-Temperature Stability: The gasket must maintain elasticity and sealing force at the elevated temperatures found near the torch front end, without taking a permanent set or melting.

• Coolant and Chemical Compatibility: It must not swell, shrink, or degrade when in contact with water-based coolants and their anti-corrosion additives.

• Compression Set Resistance: It must reliably return to its original shape after being compressed during torch assembly, maintaining seal force over thousands of thermal cycles.

The gasket is also precision-molded to its exact final form—whether a flat face seal, a molded profile, or a bonded seal—ensuring it fills the specific sealing cavity in the PWM300 torch perfectly without needing to deform or stretch like a standard O-ring might.

Application Scenarios & Proactive Maintenance

The PWM300 Gasket 8-6512 is a critical wear item that should be replaced proactively during torch service. Key scenarios include:

• Scheduled Torch Overhaul: Whenever the torch is disassembled for deep cleaning or inspection.

• Consumable Change Cycles: Consider replacing it every 3-5 nozzle/electrode change cycles in high-use environments.

• After a Torch Crash or Impact: Physical shock can compromise seals.

• If Any Leak is Suspected: Evidence includes hissing sounds, coolant droplets, or unexplained degradation in cut/weld quality.

• During Conversion or Rebuild: When switching torch heads or after repairing internal components.

System Integration: Related Parts & Installation Protocol

For a perfect seal, the PWM300 Gasket 8-6512 must be installed correctly within a clean system:

1. Torch Body & Cavity: The sealing surfaces on the torch body and retaining cap must be clean, smooth, and free of nicks or old gasket material.

2. Compatible Consumables: Use with genuine PWM300 nozzles, retainers, and swirl rings. Non-OEM parts may have incompatible sealing dimensions.

3. Installation Practice: Place the gasket gently in its groove or seat. Do not stretch or twist it. Assemble parts evenly, following the manufacturer’s torque specifications if available. Over-tightening can crush and destroy the seal.

4. Lubrication: If specified by the manual, use only the recommended, compatible lubricant (e.g., silicone grease) sparingly on the gasket to aid installation—never on sealing faces.

Frequently Asked Questions (FAQ)

Q1: My torch seems to work fine. Why should I proactively replace this gasket?
A: Gasket failure is often gradual and not immediately apparent. A minor leak might slightly reduce shield gas pressure, subtly increasing dross or edge oxidation long before a major failure occurs. Proactive replacement during routine maintenance is the most cost-effective strategy, preventing hidden process degradation and avoiding catastrophic failure mid-job.

Q2: Can I use a standard O-ring of the same size instead of the 8-6512 gasket?
A: Strongly not recommended. Even if the diameter seems similar, a standard O-ring is designed for radial sealing (sealing on its inner and outer diameters in a groove). The PWM300 Gasket 8-6512 is almost certainly a face seal (sealing on its top and bottom surfaces). Using the wrong seal type will result in leakage. The material is also likely incorrect for the environment.

Q3: How do I know if my gasket is failing?
A: Signs include: audible hissing from the torch front end, visible coolant mist or droplets during operation, unexplained consumable oxidation (colored nozzles/electrodes), or a gradual, inexplicable loss of cut or weld quality (more dross, porosity). Often, the gasket will appear flattened, brittle, or cracked upon inspection.

Q4: Is this gasket used in both air-cooled and water-cooled PWM300 torches?
A: The specific PWM300 Gasket 8-6512 is designed for a particular torch model variant. Water-cooled torches typically have more complex sealing requirements for coolant channels. You must verify the part number against your specific torch’s parts list. Using a gasket from an air-cooled torch in a water-cooled model (or vice versa) will result in immediate leakage and damage.

Q5: What is the proper way to install and torque the parts that compress this gasket?
A: Clean all surfaces. Place the gasket evenly in its seat. Hand-tighten the retaining cap or component until it is snug. If a specific torque value is provided in your service manual, use a torque wrench. If not, the general rule is “hand-tight plus a quarter turn” with the appropriate wrench. The goal is to compress the gasket sufficiently to seal, not to crush it into its housing. Over-torquing is a common cause of premature seal failure and thread damage.

Conclusion: The Foundation of a Closed, Controlled System

The PWM300 Gasket 8-6512 exemplifies the principle that reliability is built on attention to detail. It transforms a collection of precision components into a sealed, controlled system where gases, coolants, and electrical currents are perfectly managed. By ensuring this seal is genuine and in good condition, you protect your investment, guarantee your process parameters, and eliminate a primary source of unpredictable performance.

Don’t let the smallest link compromise your entire chain of productivity. For guaranteed sealing integrity and torch performance, insist on the precise component engineered for the task. Choose the genuine PWM300 Gasket 8-6512.
