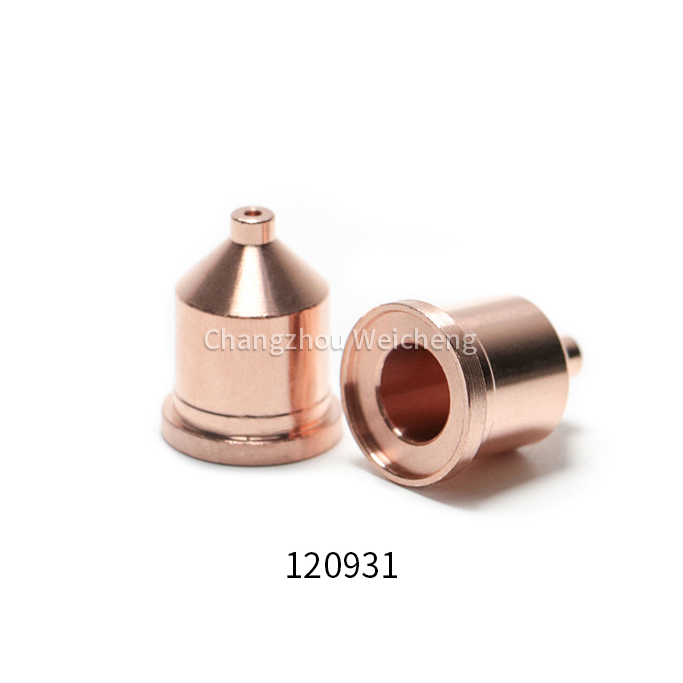

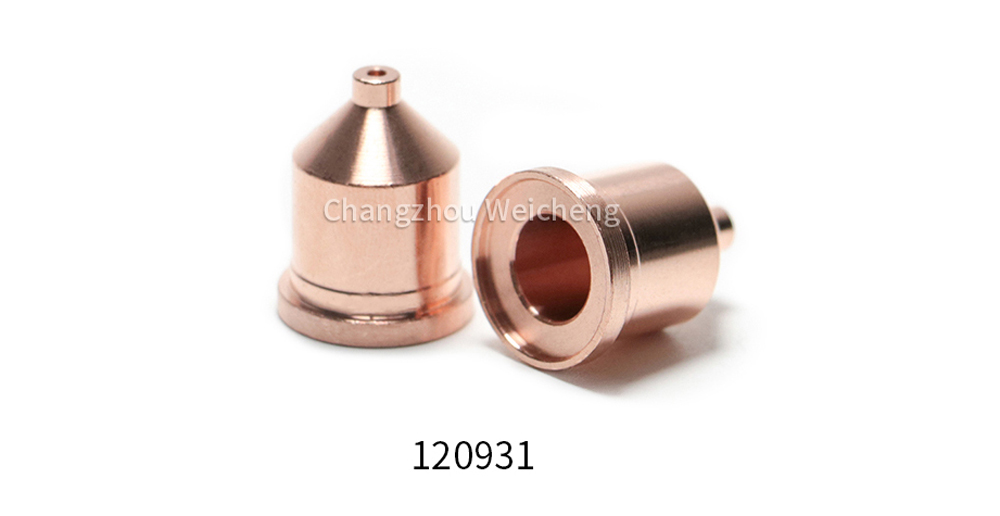

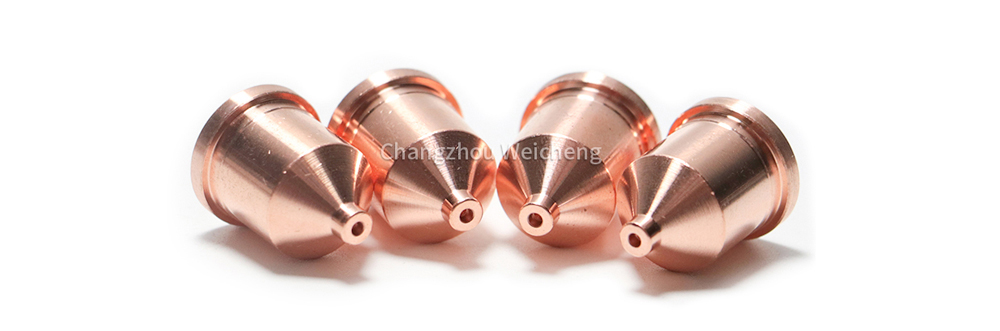

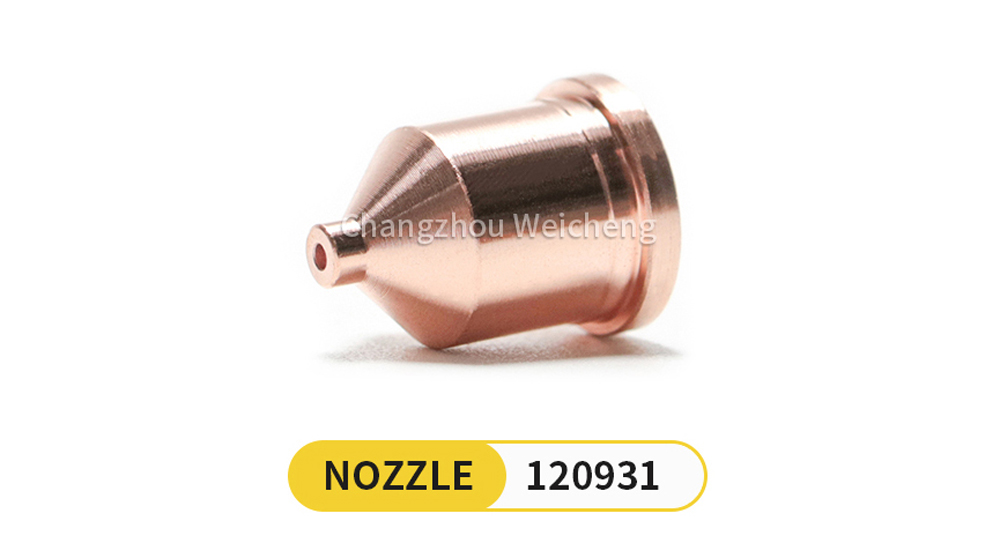

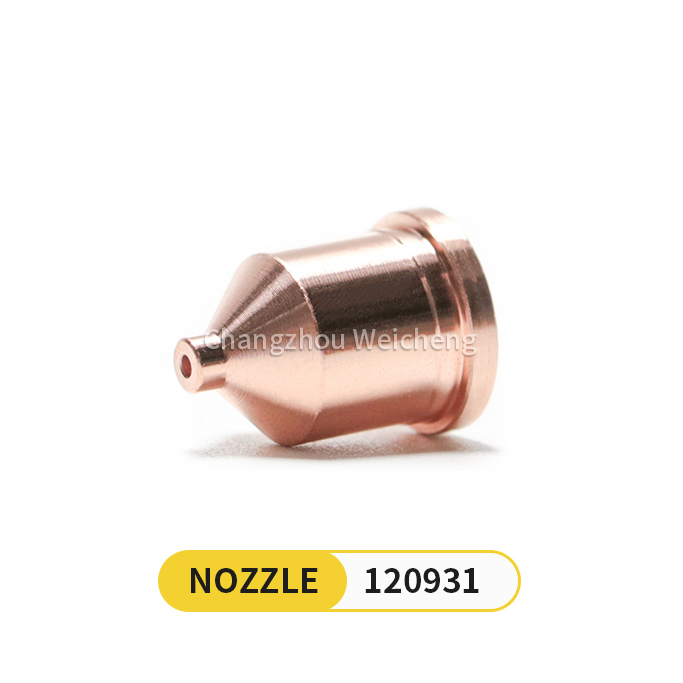

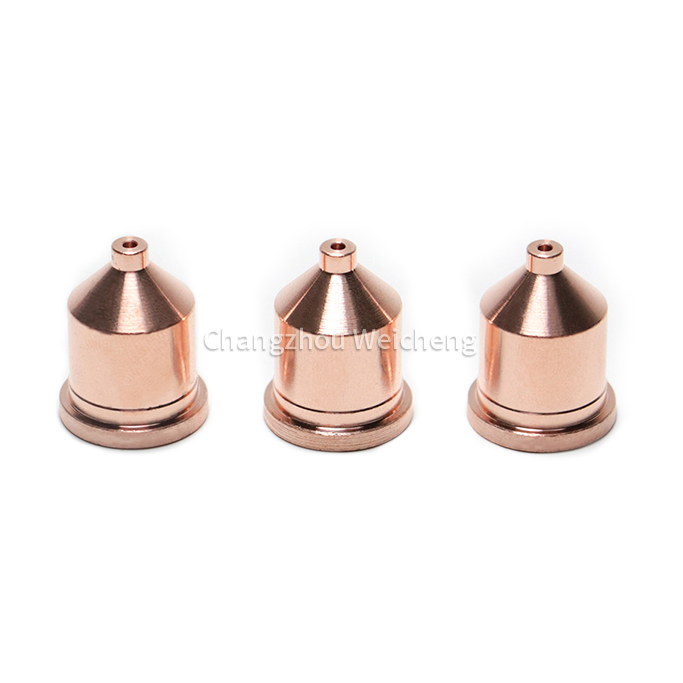

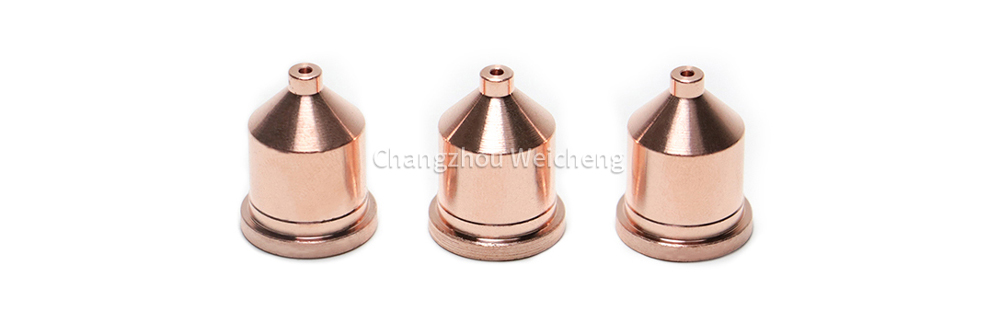

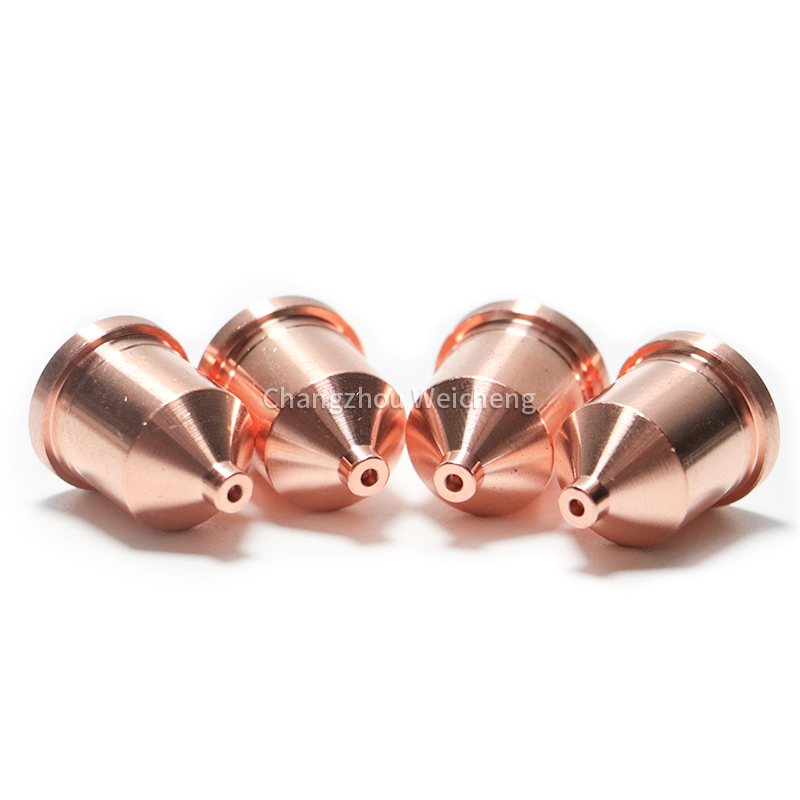

Powermax1650 Nozzle 120931 Plasma Cutting Torch Gun

Description

Powermax1650 Nozzle 120931: The Precision Electrode—The Critical Heart of Your Hypertherm Powermax1650 Plasma Cutting System

Within the powerful ecosystem of the Hypertherm Powermax1650, a 130-amp industrial plasma cutting and gouging powerhouse, every component is engineered for extreme performance. While attention often focuses on the visible nozzle, the true genesis of the plasma arc is a more critical consumable: the Powermax1650 Nozzle 120931. It is crucial to clarify that part number 120931 is, in fact, the genuine Hypertherm electrode, not the cutting nozzle. This distinction is vital. This electrode is the essential cathode that initiates and maintains the plasma arc, and its quality directly dictates system reliability, cut quality, and your total operating cost. Choosing the authentic Powermax1650 Electrode 120931 is the definitive safeguard for your system’s performance and longevity.

This comprehensive guide provides an in-depth analysis of the Powermax1650 Electrode 120931. We will explore its unique design as the arc-initiation component, the advanced materials that ensure its durability, and the profound impact it has on the entire cutting process. Through detailed technical specifications, a clear comparison against counterfeit electrodes, and an examination of its symbiotic relationship with other consumables, this article will demonstrate why the genuine 120931 electrode is a non-negotiable investment for professionals who rely on the Powermax1650 for demanding, high-amperage work.

The Core Function: Generating and Stabilizing the Plasma Arc

The Powermax1650 Electrode 120931 is the consumable component inside the torch that serves as the negative terminal (cathode). Its primary function is twofold: to provide a durable point for the high-frequency pilot arc to ignite and to serve as the stable attachment point for the main cutting arc. The insert at its tip, made from high-purity hafnium, erodes sacrificially with each start and during cutting. The design and material quality of the genuine Powermax1650 Electrode 120931 ensure this erosion happens evenly and predictably, which is fundamental to consistent arc starts, stable cutting performance, and the protection of the more expensive torch body.

Core Selling Points of the Powermax1650 Electrode 120931:

• Reliable Arc Ignition in Demanding Conditions: The genuine 120931 electrode is engineered for consistent pilot arc generation, which is critical for reliable starts, especially in challenging environments or when the torch tip is worn. This reliability prevents frustrating work delays and failed pierces on thick material.

• Extended Service Life & Predictable Wear: Utilizing a high-density hafnium insert and superior silver-bearing copper body, the authentic electrode erodes uniformly. This provides a longer, more predictable service life compared to imitations, allowing for better consumable management and lower cost-per-operating-hour.

• Critical System Protection: A failing or poor-quality electrode is a leading cause of double-arcing—a catastrophic event where the arc jumps to the nozzle, often destroying both consumables and potentially damaging the torch’s internal swirl ring and baffle. The genuine Powermax1650 Electrode 120931 is your primary defense against this costly failure.

• Optimized Thermal Management: The silver-bearing copper body offers exceptional thermal conductivity, rapidly pulling heat away from the hafnium insert and into the torch’s cooling systems. This prevents overheating, which can lead to premature emitter failure and melting of the copper body.

• Guaranteed Compatibility and Performance: As the OEM part, it ensures perfect dimensional fit, electrical contact, and gas flow characteristics within the Powermax1650 torch. This guarantees the system operates as Hypertherm engineered it, delivering optimal cut quality and gouging performance.

Technical Specifications & Product Parameters

The performance of the Powermax1650 Electrode 120931 is defined by its precise engineering specifications.

Performance Comparison: Genuine Powermax1650 Electrode 120931 vs. Aftermarket Electrode

The risks and hidden costs of using a non-genuine electrode are severe and measurable.

*This comparison reveals that the genuine Powermax1650 Electrode 120931 is not a component to compromise on. It is the guardian of your torch’s health and the cornerstone of cost-effective operation.*

Material Science & Construction: The Anatomy of Reliability

The durability of the Powermax1650 Electrode 120931 is a result of Hypertherm’s specialized material science and manufacturing.

• High-Purity Hafnium Emitter: Hafnium is chosen for its exceptional ability to emit electrons at extremely high temperatures while resisting oxidation. The genuine 120931 electrode uses a precisely formed insert that erodes in a controlled, concave manner, maintaining a stable arc attachment point until the hafnium is fully consumed.

• Silver-Bearing Copper Alloy Body: The electrode body is made from oxygen-free copper infused with a small percentage of silver. This dramatically increases the alloy’s resistance to annealing (softening) under the intense thermal cycling of plasma cutting. A soft electrode can deform, losing critical dimensional tolerances and leading to system failure.

• Precision Machining and Assembly: The interface between the hafnium insert and the copper body is critical. It must be flawless for optimal electrical conductivity and thermal transfer. The genuine electrode is manufactured to exacting tolerances to prevent separation or hot spots at this junction.

• Electro-Plated Nickel Finish (on some variants): Many genuine Hypertherm electrodes feature a nickel-plated surface. This plating enhances corrosion resistance during storage, improves electrical conductivity, and helps prevent spatter adhesion.

Ideal Application Scenarios for the Powermax1650 Electrode 120931

This electrode is essential for every application that utilizes the Powermax1650, especially under strenuous conditions.

1. High-Amperage Cutting of Thick Plate (Up to 1.5”): When pushing the system to its rated capacity on heavy structural steel, the electrode must handle immense thermal loads. The genuine 120931 is engineered for this.

2. Severe Plasma Gouging: Gouging is exceptionally harsh on consumables. The violent, high-heat process demands the robust hafnium insert and superior heat dissipation of the authentic Powermax1650 Electrode 120931 to maintain performance and prevent failure.

3. Production Environments with High Duty Cycles: In fabrication shops or shipyards where the cutter is in near-constant use, the extended life of genuine electrodes reduces changeover frequency and maintains consistent quality throughout a shift.

4. Dirty or Challenging Conditions: Cutting painted, rusty, or primed material can be harder on the arc-starting system. The reliable pilot arc of a fresh, genuine electrode is more likely to power through contamination.

5. Preventative Maintenance: The most cost-effective practice is to replace the electrode as part of a planned consumable set change before it fails, protecting the nozzle and torch from secondary damage.

System Integration: The Essential Powermax1650 Consumable Set

The Powermax1650 Electrode 120931 must be used as part of a matched consumable set for safe and effective operation.

• Cutting Nozzle (Hypertherm Part 120932): This is the correct corresponding nozzle. The electrode and nozzle are a married pair. Always replace them together. A worn nozzle will destroy a new electrode instantly, and vice-versa.

• Shield Cup (Hypertherm Part 120933): The shield protects both the nozzle and electrode from physical damage and spatter. Using the correct shield (120933) is vital for safety and consumable life.

• Swirl Baffle / Retaining Cap: This component ensures proper gas vortex. Always inspect and clean it, replacing if damaged, to ensure correct gas flow to the Powermax1650 Electrode 120931.

• Powermax1650 Torch & Power Supply: The electrode is designed exclusively for this system’s electrical and gas dynamics.

The Cardinal Rule: Change as a Complete Set. Never install a new Powermax1650 Electrode 120931 into a torch with a worn nozzle. Always replace the electrode, nozzle (120932), and shield cup (120933) simultaneously. This is the single most important practice for maximizing consumable life, ensuring cut quality, and protecting your torch from expensive damage.

Conclusion: The Intelligent Foundation for Uninterrupted Power

The Powermax1650 Electrode 120931 is the foundational component upon which every cut and gouge is built. Compromising on this part jeopardizes everything downstream: nozzle life, cut quality, torch integrity, and ultimately, your productivity and profitability. It is a precision component disguised as a consumable.
