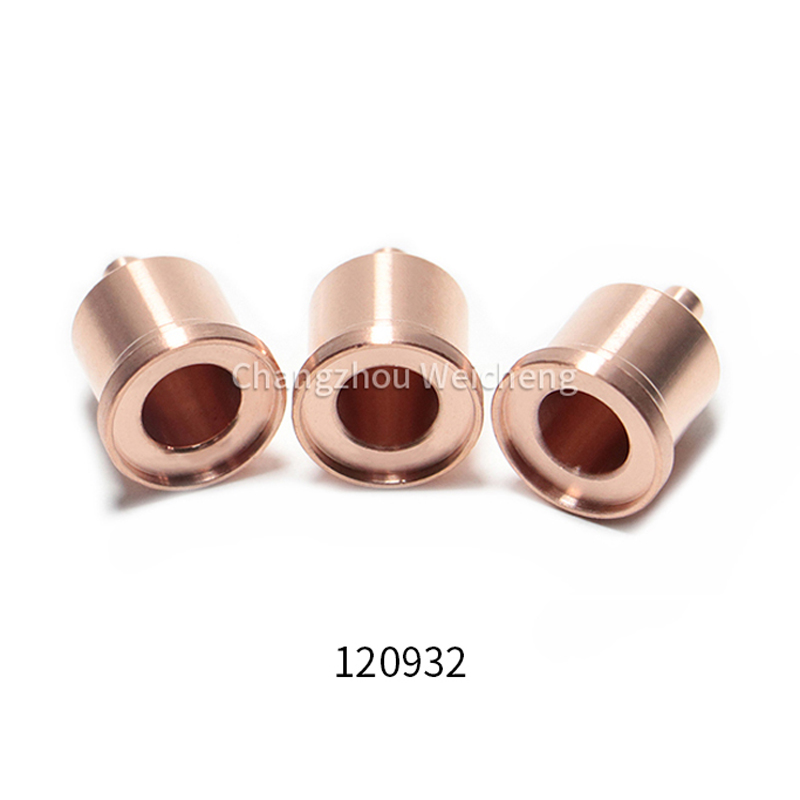

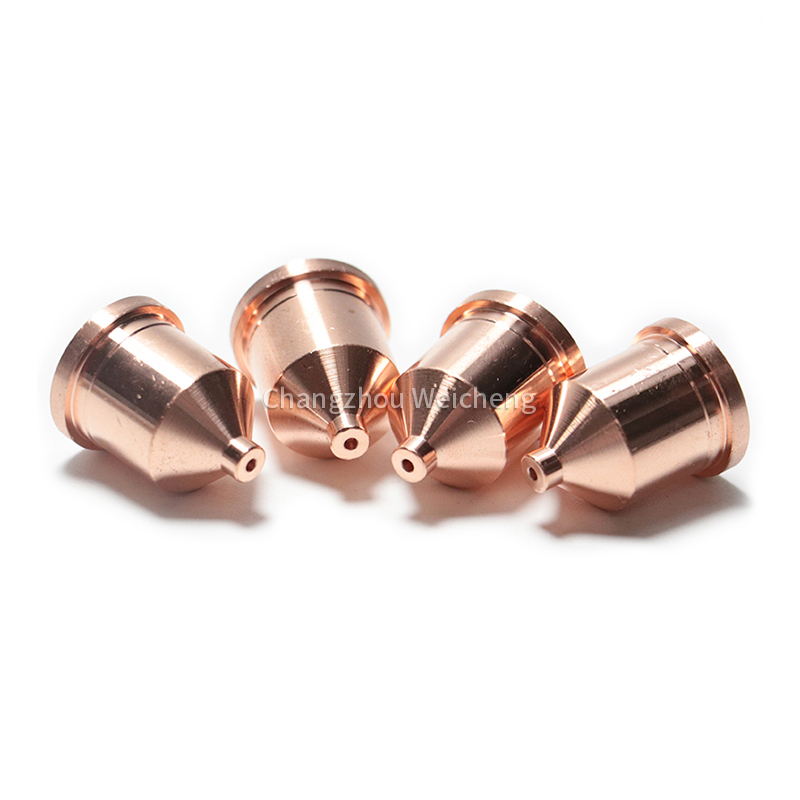

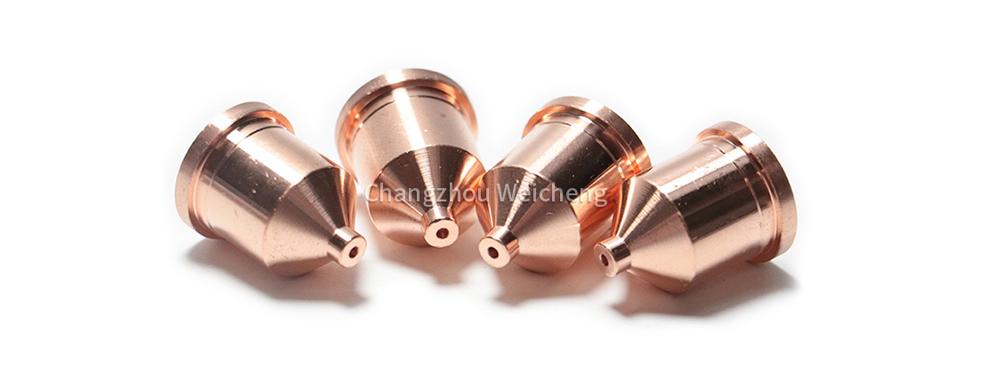

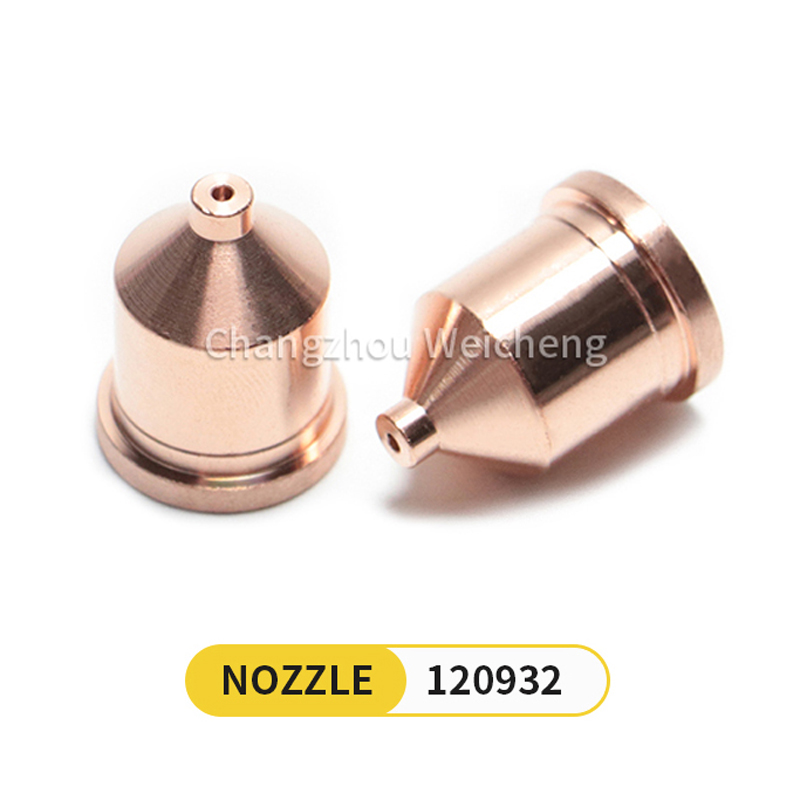

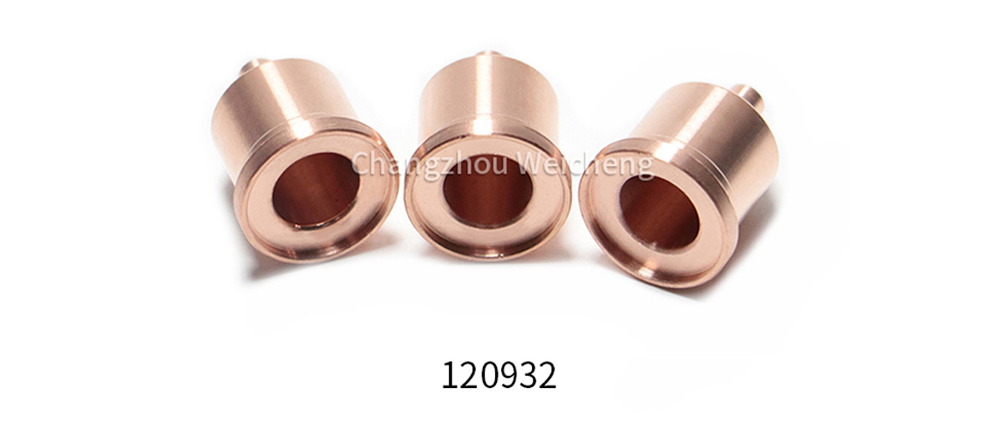

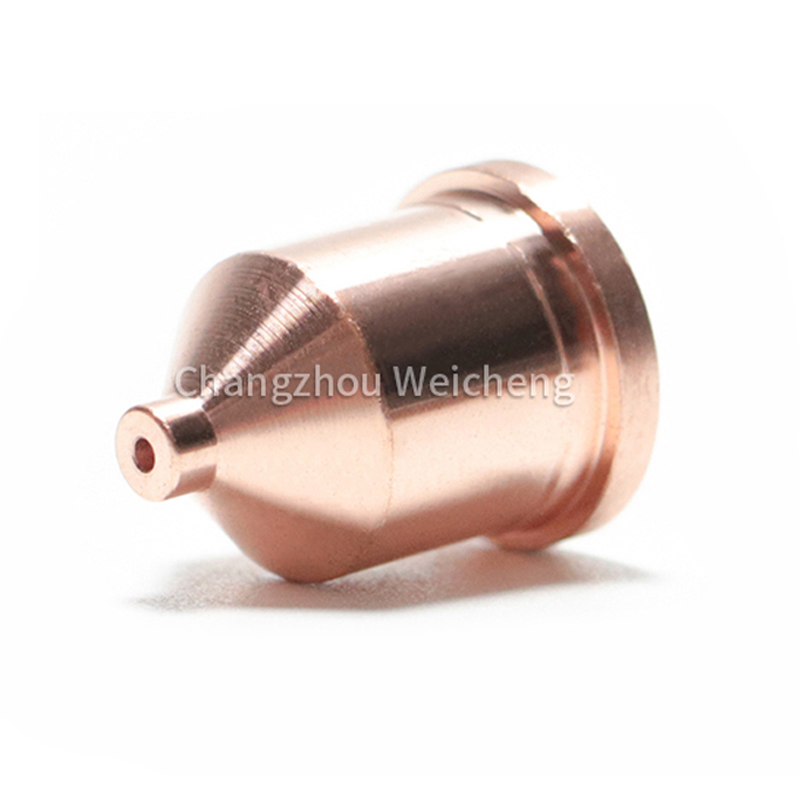

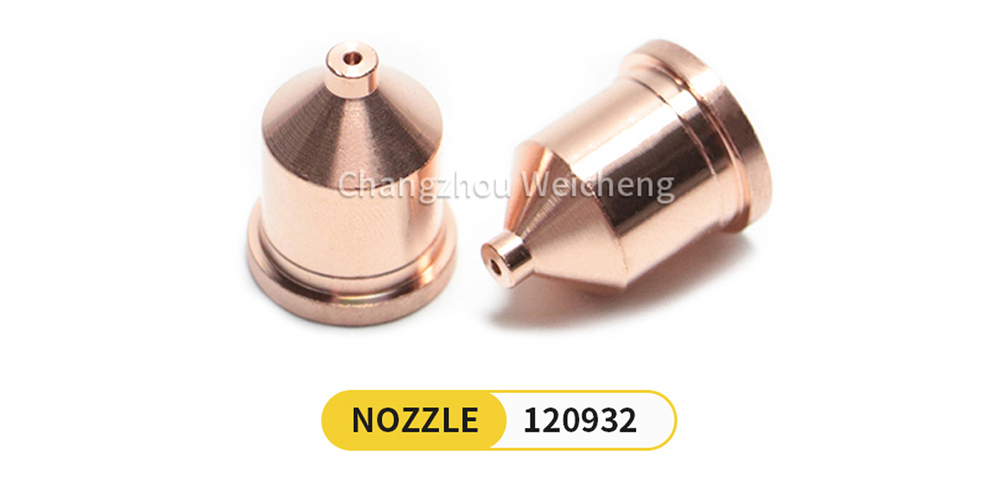

Powermax1650 Nozzle 120932 Plasma Cutting Torch Gun

Description

Powermax1650 Nozzle 120932: The Precision-Crafted Consumable for Hypertherm’s Most Demanding High-Amperage Plasma Cutting

In the upper echelon of industrial plasma cutting, where the task is to sever and shape the thickest, toughest steels with unwavering reliability, every component must perform under extreme duress. The Hypertherm Powermax1650 represents this pinnacle of power, capable of 130-amp cutting and heavy gouging. At the heart of its cutting performance lies a critical, yet consumable, component: the Powermax1650 Nozzle 120932. This is not a generic orifice; it is the genuine Hypertherm nozzle, precision-engineered to focus the immense energy of the Powermax1650 into a stable, clean-cutting plasma arc. For operators who depend on maximum uptime and consistent quality from their most powerful hand plasma system, understanding and using the authentic Powermax1650 Nozzle 120932 is paramount to achieving operational excellence and controlling costs.

This definitive guide provides a comprehensive analysis of the Powermax1650 Nozzle 120932. We will explore its technical design, the advanced materials that grant its durability, and the tangible impact it has on cut quality and consumable life. Through detailed specifications, a clear comparison against inferior alternatives, and an examination of its role within the Powermax1650 ecosystem, this article will demonstrate why the genuine 120932 nozzle is a non-negotiable investment for professionals who cannot afford the hidden costs of substandard parts.

The Engineering Mission: Constraining Extreme Power with Precision

The Powermax1650 Nozzle 120932 is the specific front-end consumable designed for the Powermax1650 torch. Its primary function is to constrict and focus the superheated, electrically conductive gas (plasma) generated by the electrode into a coherent, high-energy jet. The precision of its orifice diameter and the integrity of its internal geometry are what determine cut straightness, edge bevel, and dross levels. The genuine Powermax1650 Nozzle 120932 is engineered to perform this task consistently while withstanding the intense thermal and physical stresses of cutting materials up to 1-1/2 inches thick.

Core Selling Points of the Powermax1650 Nozzle 120932:

• Optimized for High-Amperage Stability: The Powermax1650 Nozzle 120932 is designed specifically for the 130-amp output of the Powermax1650. Its geometry ensures a stable arc at full power, preventing flicker or wander that leads to poor cut quality and irregular wear on other components.

• Extended Service Life & Cost Efficiency: Manufactured from premium, high-heat-resistant materials, the genuine 120932 nozzle offers significantly longer life than counterfeit or generic nozzles. This reduces changeover frequency, lowers consumable inventory costs, and delivers a lower cost-per-foot of cut.

• Guaranteed Cut Quality: Using the authentic nozzle ensures you achieve the cut quality Hypertherm engineered the system to deliver: cleaner edges, more consistent bevel angles, and minimal dross. This reduces post-cut cleanup time and improves weld readiness.

• System Protection and Safety: A properly functioning nozzle is critical for maintaining correct gas flow and preventing double-arcing—a condition where the arc jumps to the nozzle itself, causing catastrophic failure that can damage the torch. The genuine Powermax1650 Nozzle 120932 is your first line of defense for protecting your entire torch assembly.

• Genuine Hypertherm Fit and Compatibility: It is guaranteed to thread and seat perfectly with the Powermax1650 electrode and shield, ensuring optimal gas dynamics and electrical characteristics. This perfect fit is impossible to guarantee with aftermarket parts.

Technical Specifications & Product Parameters

The performance of the Powermax1650 Nozzle 120932 is defined by its exacting specifications.

Performance Comparison: Genuine Powermax1650 Nozzle 120932 vs. Aftermarket Nozzle

The risks of using a non-genuine nozzle become starkly apparent in direct comparison.

The data is conclusive: the genuine Powermax1650 Nozzle 120932 is the only economically and operationally sensible choice for protecting your investment and ensuring reliable performance.

Material Science & Construction: The Foundation of Durability

The extended lifespan of the Powermax1650 Nozzle 120932 is a direct result of Hypertherm’s advanced material science.

• High-Conductivity Copper Alloy: The nozzle body is machined from a specially formulated copper alloy. Copper is chosen for its exceptional thermal conductivity, which rapidly pulls heat away from the critical orifice area, preventing melt-back and deformation.

• Proprietary Silver Plating: A key differentiator of the genuine 120932 nozzle is its silver plating. Silver provides superior surface conductivity for the pilot arc and dramatically increases resistance to oxidation and corrosion. This prevents the buildup of scale that can disrupt gas flow and arc stability, a common failure point in plain copper nozzles.

• Precision CNC Machining: The orifice is not simply drilled; it is machined using computer-controlled processes to ensure perfect roundness, a smooth interior finish, and exact dimensional tolerances. This precision is critical for forming a laminar, stable plasma jet.

• Engineered Thermal Mass: The physical design incorporates optimal mass to act as a heat sink, managing the intense thermal load from 130-amp cutting and gouging operations, thereby maintaining structural integrity.

Ideal Application Scenarios for the Powermax1650 Nozzle 120932

This nozzle is essential for all applications that leverage the full power of the Powermax1650 system.

1. Heavy Plate Fabrication and Structural Steel: Cutting thick plate (1/2″ to 1-1/2″) for construction, mining equipment, and industrial bases where cut quality and speed are paramount. The Powermax1650 Nozzle 120932 delivers the necessary stability and longevity.

2. Severe Gouging and Weld Preparation: The Powermax1650 is renowned for its gouging capability. The robust construction of the 120932 nozzle withstands the violent, high-heat process of removing weld material or preparing bevels on thick sections.

3. Shipyard and Barge Construction: In environments dealing with heavy plate and demanding schedules, the reliability and long life of genuine consumables like the Powermax1650 Nozzle 120932 minimize downtime and keep projects on track.

4. Demolition and Scrap Processing: Cutting through heavy structural members, machinery bases, and reinforced material requires a nozzle that can handle dirt, paint, and uneven surfaces without failing prematurely.

5. Maintenance and Repair of Heavy Assets: For in-field repair of large industrial assets, agricultural equipment, or infrastructure, where the first cut must be the right cut, using the genuine nozzle ensures performance when it matters most.

System Integration: The Complete Powermax1650 Consumable Set

The Powermax1650 Nozzle 120932 is one part of an integrated consumable system. Peak performance and safety require using all genuine, matched components.

• Electrode (Hypertherm Part 120931): The nozzle must always be paired with the correct genuine electrode (120931). They are engineered as a set. A worn or mismatched electrode will instantly destroy a new nozzle.

• Shield Cup (Hypertherm Part 120933): The shield protects the nozzle from physical damage and double-arcing. Using the correct shield (120933) is crucial for safety and nozzle life.

• Swirl Ring (If applicable to your torch model): This component creates the gas vortex. Always ensure you are using the correct, undamaged swirl ring for optimal gas flow to the Powermax1650 Nozzle 120932.

• Powermax1650 Torch & Power Supply: The nozzle is designed exclusively for use with this system. Its performance specifications are tied to the Powermax1650’s output characteristics.

Non-Negotiable Best Practice: Change Consumables as a Complete Set. Never install a new Powermax1650 Nozzle 120932 on a worn electrode or vice-versa. Always replace the nozzle, electrode, and shield cup together. This ensures optimal performance, maximizes the life of all components, and protects your torch from damage.

Conclusion: The Intelligent Investment in Uncompromised Performance

The Powermax1650 Nozzle 120932 embodies the principle that the quality of your results is determined by the quality of your consumables. In a system designed for the most demanding work, compromising on the component that directly creates the cut is a false economy that leads to hidden costs, operational delays, and equipment risk.
