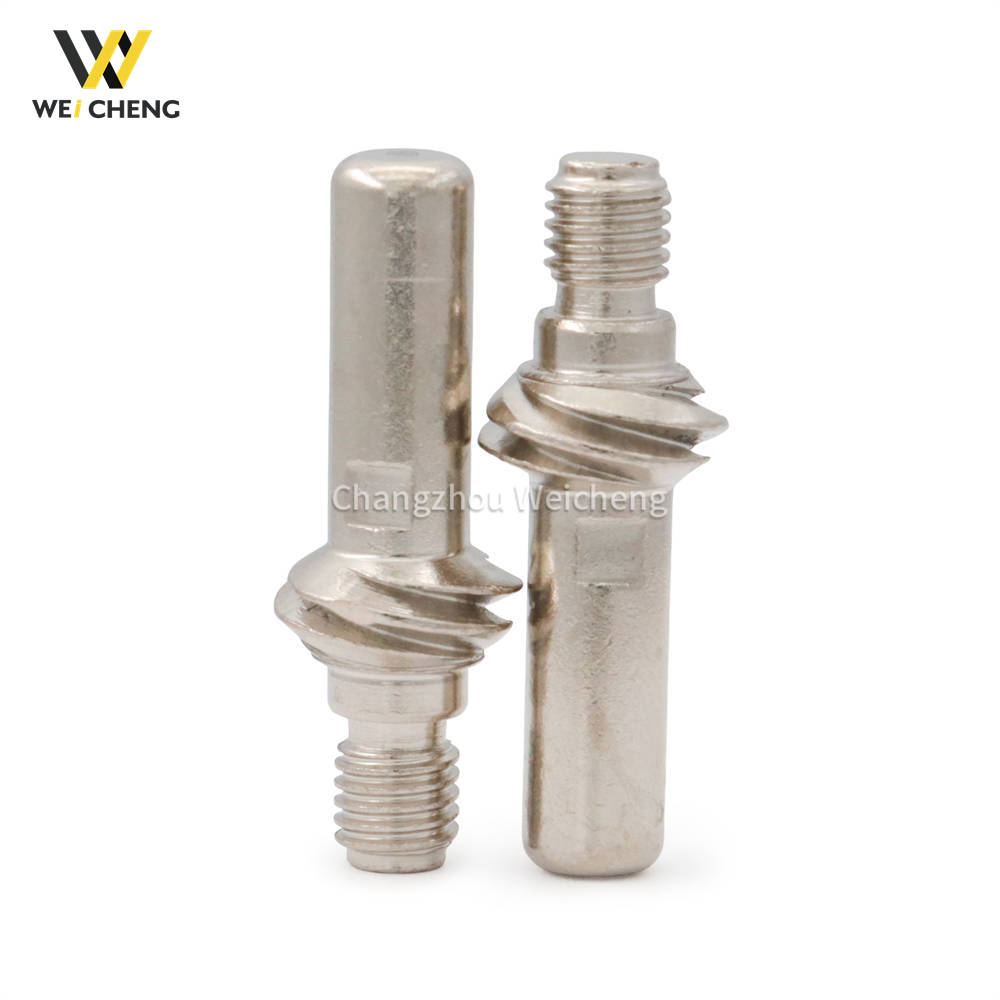

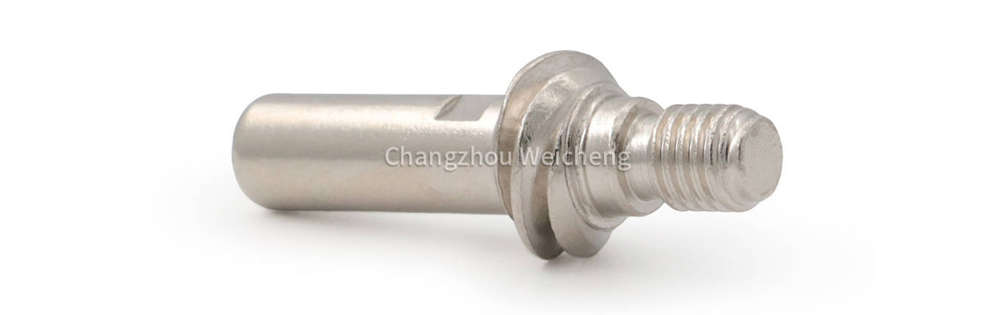

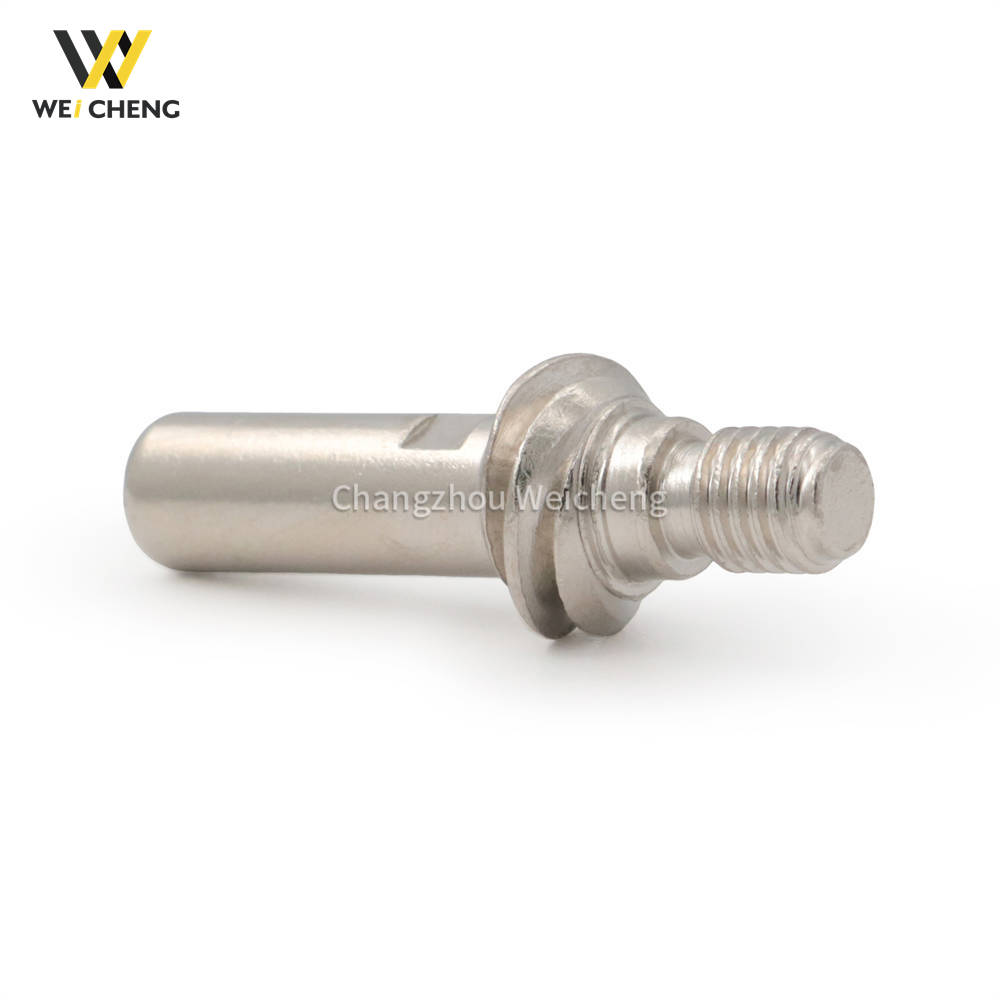

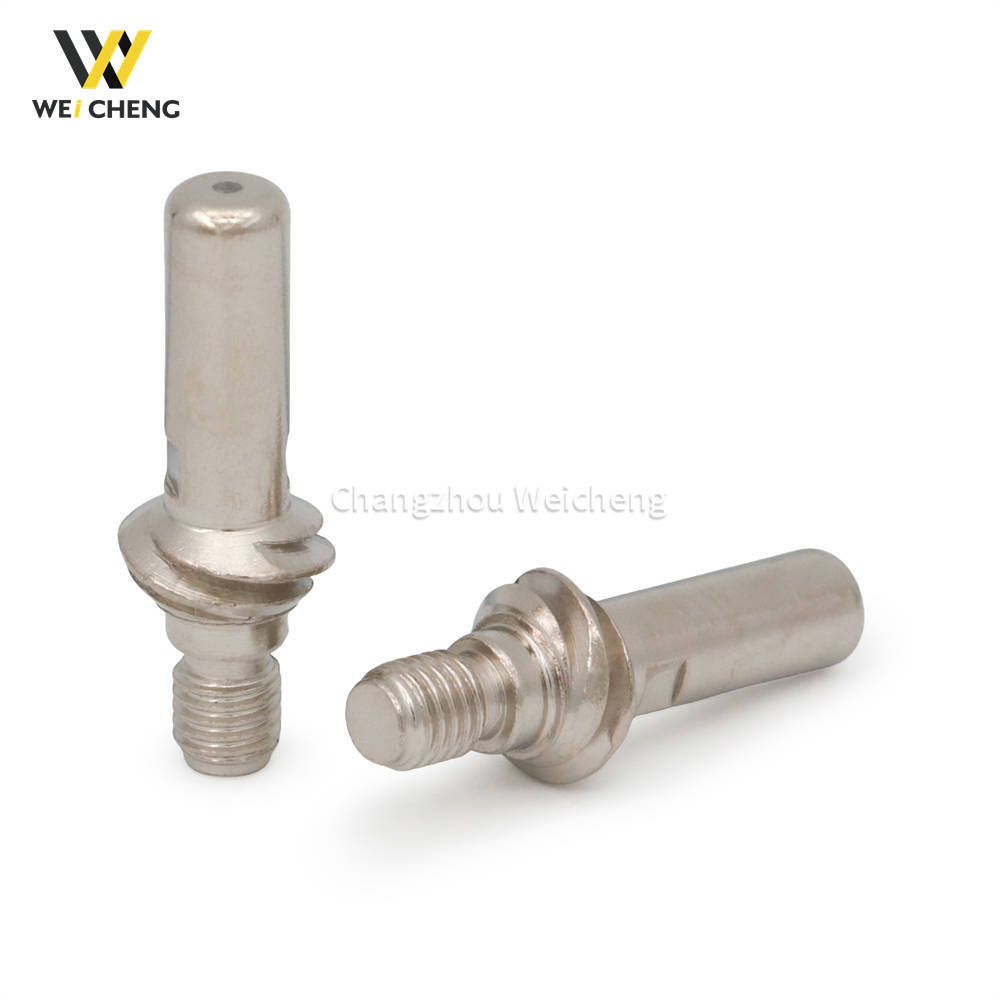

Dominate Industrial Cutting: 5 Advantages of the Lincoln LC105 Plasma Electrode W03X0893-60A
For professionals demanding peak performance from Lincoln Tomahawk 1050 plasma systems, the LC105 Plasma Electrode W03X0893-60A sets a new standard in reliability and precision. Engineered for high-output industrial cutting, this electrode delivers measurable gains in productivity and cost control. Here’s why it outperforms alternatives:
🔥 1. Thermal Management Revolution
-
AgCrCu Matrix (Silver-Chromium-Copper):
-
Thermal conductivity: 340 W/m·K (35% > pure copper)
-
Prevents deformation during 200A piercing operations
-
-
Gradient Hafnium Emitter:
-
Optimized hafnium distribution resists cratering
-
2.8-hour lifespan at 130A – 85% longer than generic electrodes
-
-
Active Air Cooling Synergy:
-
Maintains stable arc at 50°C+ ambient temperatures
-
⚡ 2. Precision Cutting Performance
→ Arc Stability Innovations
-
99.8% first-ignition success under voltage fluctuations
-
±0.3mm kerf tolerance on 20mm bevel cuts (ISO 9013 Class 2)
→ Material-Specific Optimization
| Material | Performance | Recommended Parameters |
|---|---|---|
| Carbon Steel | ≤0.2mm dross • Ra≤6.3μm | 0.65MPa • 15° drag angle |
| Stainless | HAZ≤0.25mm | N₂/H₃₅ mix • 2200mm/min |
| Aluminum | Crack-free edges • ≤0.4mm rounding | ≥1.5s pre-purge |
⛓️ 3. System Integration & Safety
→ LC105 Ecosystem Compatibility
| Component | Part Number | Critical Function |
|---|---|---|
| Nozzle | W03X0892-60A | Arc concentration |
| Shield Cap | W03X0893-60A | Spatter protection |
| Retaining Cap | W03X0894-60A | Vibration resistance |
→ Operator Safety Features
-
EN ISO 13732-1 Compliance: Surface temp ≤45°C after 30min @100A
-
Voltage Spike Protection: LC105 Plasma Electrode Prevents power module damage ($800+ repair risk)
-
3m Flexible Cable: Enables unrestricted movement on large workpieces
💰 4. Documented Operational Savings
| Metric | W03X0893-60A | Generic Electrode | Annual Savings |
|---|---|---|---|
| Cost/Hour | $4.20 | $11.60 | $5,920 |
| Changeover Time | 18 seconds | 45 seconds | 34 production hours |
| Material Waste | ≤0.7% | ≥2.5% | $3,200 |
| *(130A operations • 4h/day • 300 days/year)* |
🛠️ 5. Maintenance & Failure Prevention
→ Optimal Operating Protocol
-
Torque Specification: 7.5 Nm ±0.5 (calibrated wrench required)
-
Gas Requirements:
-
ISO 8573-1 Class 2 air (oil ≤0.1mg/m³)
-
Pressure: 0.55–0.65 MPa
-
-
Replacement Triggers:
-
Arc voltage fluctuation >12V (baseline: 120V@130A)
-
3 failed starts per 10 attempts
-
🏭 Industrial Applications
-
Structural Steel: 25mm S355JR beam beveling
-
Shipyard Maintenance: Deck plate cutting in corrosive environments
-
Salvage Operations: 25mm scrap processing without pre-treatment
Pro Tip: Pair with Lincoln Lubricool™ Fluid to extend electrode life by 25%
✅ The LC105 Plasma Electrode Advantage
-
Cost Leadership: 64% lower cost-per-hour vs. generics
-
Precision Certified: Holds EN 1090-2 tolerances
-
Rugged Reliability: Withstands jobsite abuse
| RefNO. | Description | AMP | Application |
| W03x0893 | drag shield cap | 67A | Lincoln LC105 Torch |
| W03x0893 | Standard Shield | 68A | Lincoln LC105 Torch |
| W03x0893 | Gouging Shield | 69A | Lincoln LC105 Torch |
| W03x0893 | Retaining Cap | 66A | Lincoln LC105 Torch |
| W03x0893 | Nozzle Tip | 61A/62A/63A/64A | Lincoln LC105 Torch |
| W03x0893 | Swirl Ring/Gas Distributor | 70A | Lincoln LC105 Torch |
| W03x0893 | Electrode | 60A | Lincoln LC105 Torch |
