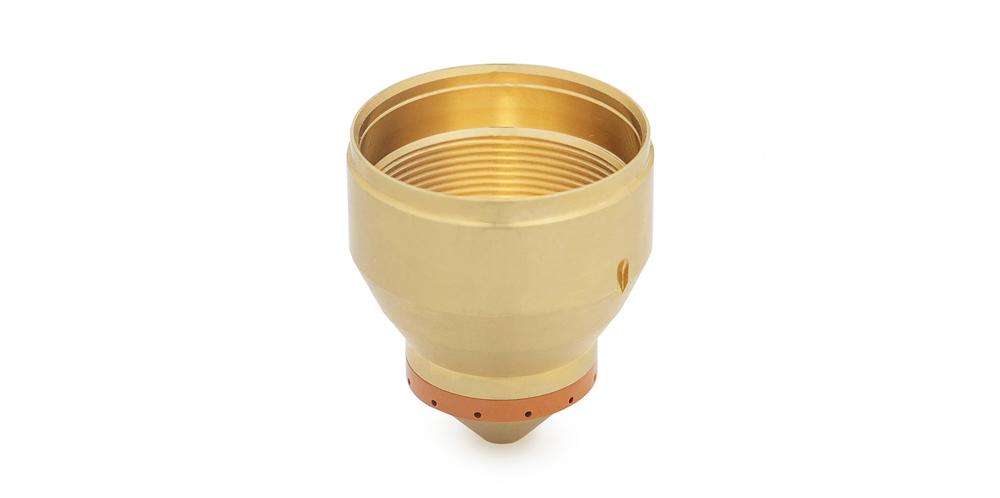

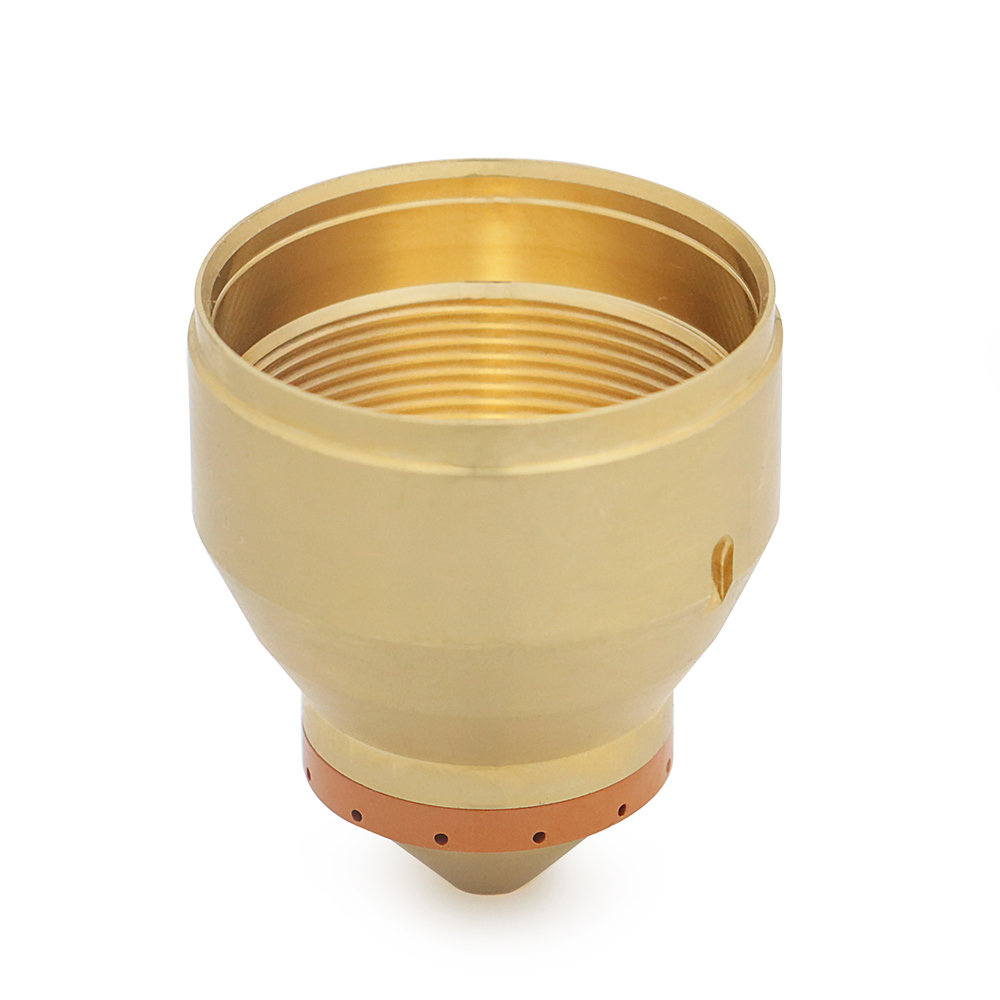

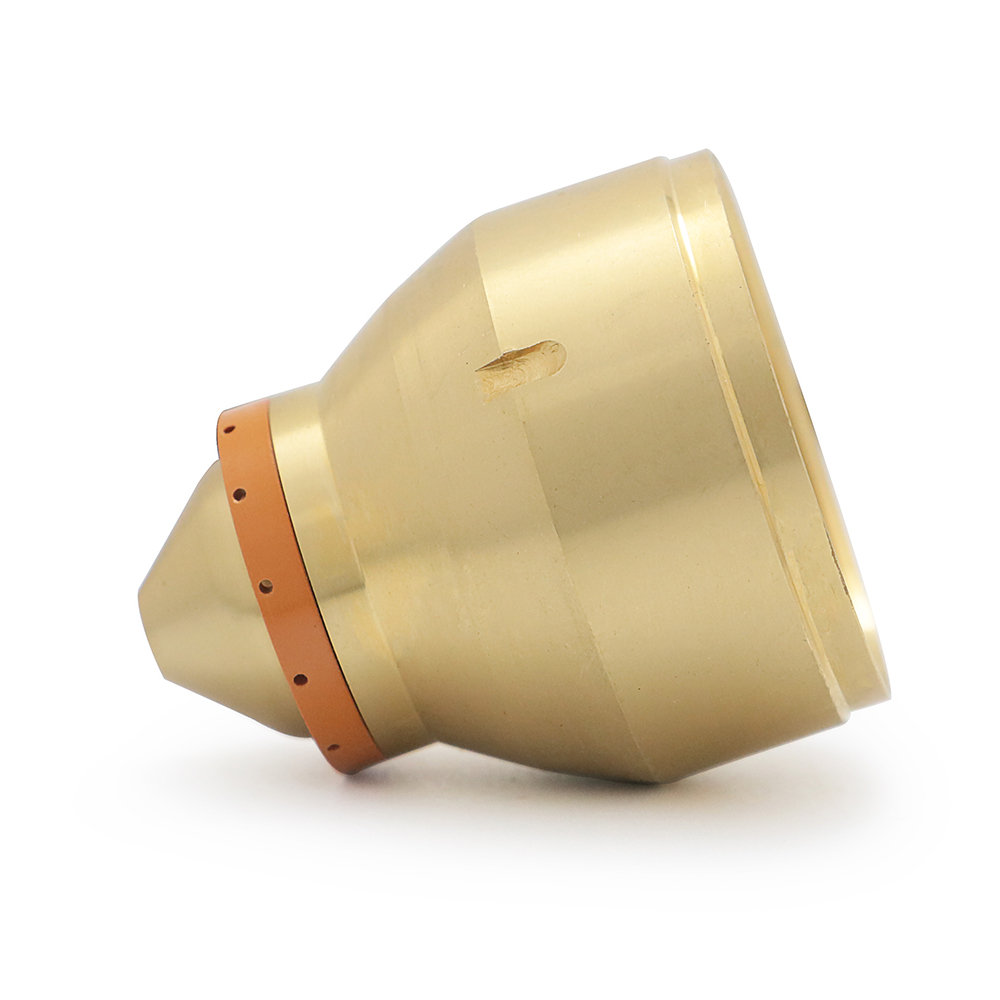

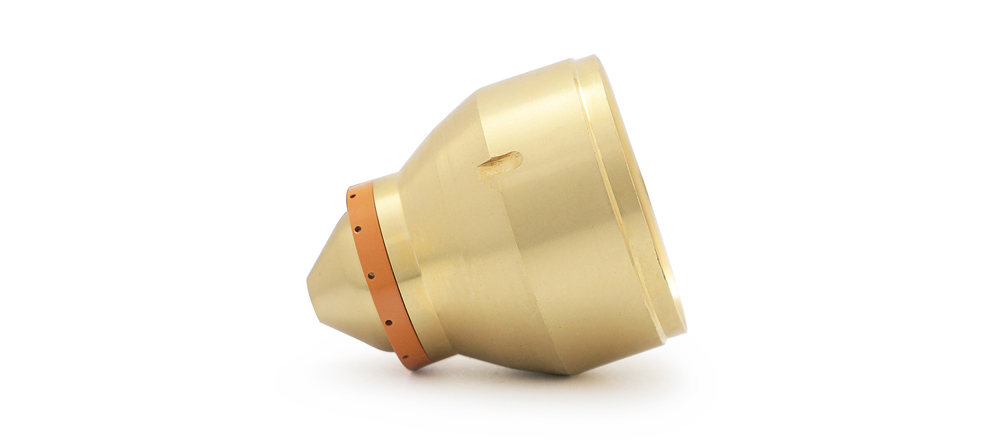

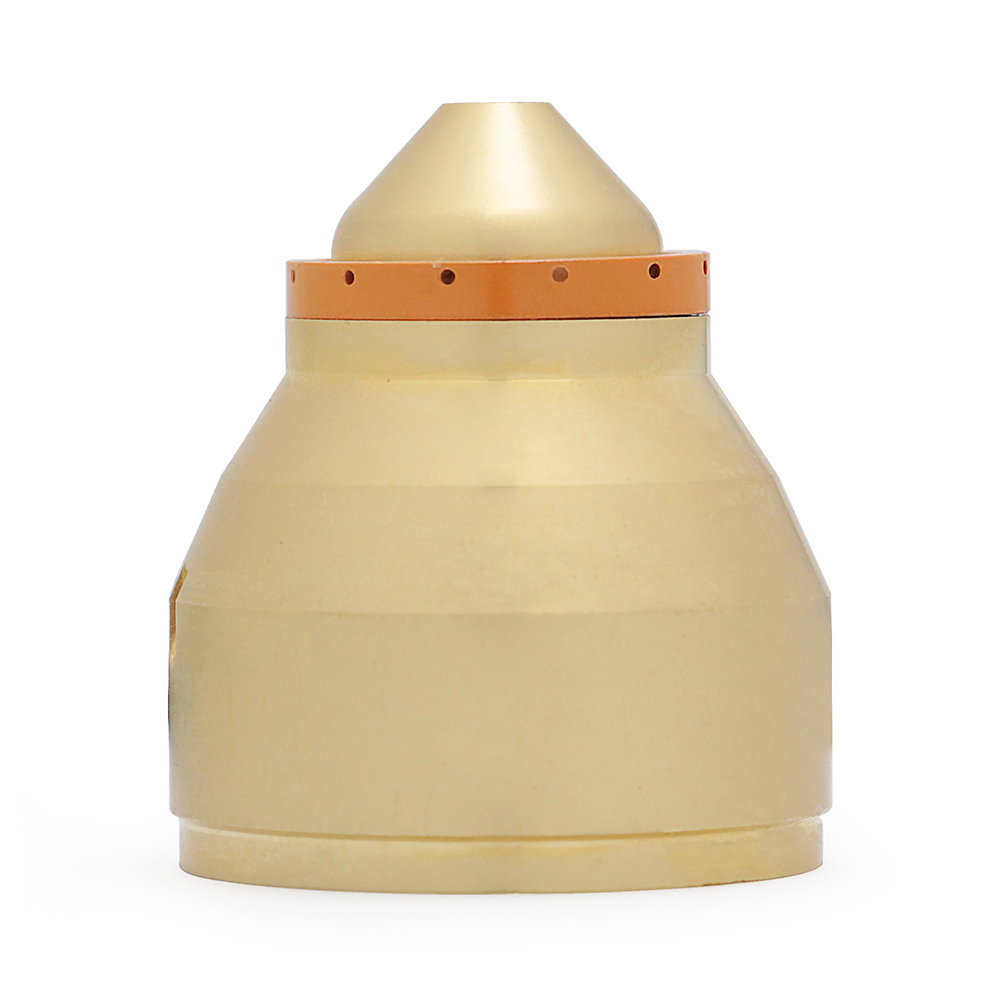

Kjellberg Nozzle Cap R3028 11.842.601.1622 Plasma Cutting Consumables

Description

Kjellberg Nozzle Cap R3028: The Essential Guardian for Peak Plasma Cutting Performance and Consumable Life

In the focused world of plasma cutting, attention naturally falls on the dynamic components—the electrode that creates the arc and the nozzle that constricts it into a cutting jet. However, overlooking the critical, protective role of the nozzle cap is a costly mistake. This unsung hero is the Kjellberg Nozzle Cap R3028, a precision-engineered shield designed not to cut, but to protect. It is the first line of defense for your most valuable consumables, a key to maintaining perfect cut quality, and a simple yet profound investment in reducing your total operating costs. For operators who value system integrity and consistency, understanding the Kjellberg Nozzle Cap R3028 is as crucial as knowing your nozzle itself.

This definitive guide explores the Kjellberg Nozzle Cap R3028 in full detail. We will analyze its protective design, durable material composition, and the specific operational benefits it delivers. Through clear technical specifications, a direct comparison against worn or generic caps, and a breakdown of its role within the consumable set, this article demonstrates why the genuine Kjellberg Cap R3028 is a non-negotiable component for professional, reliable plasma cutting.

The Protective Mission: More Than Just a Cover

The Kjellberg Nozzle Cap R3028 is a specifically designed protective shroud that threads onto the front of compatible Kjellberg plasma torches. Its primary function is threefold: to physically protect the nozzle and electrode from impact and spatter damage, to properly shape and direct the secondary shielding gas flow, and to maintain the correct critical standoff distance between the nozzle and the workpiece. The Kjellberg Cap R3028 is not a passive piece of metal; it is an active part of the gas dynamics and cooling system, essential for achieving the cut quality promised by your nozzle and electrode.

Core Selling Points of the Kjellberg Nozzle Cap R3028:

• Maximum Consumable Protection: The robust design of the Kjellberg Cap R3028 acts as a sacrificial barrier against molten spatter, physical knocks, and double-arcing events. By absorbing this damage, it directly extends the service life of the more expensive nozzle and electrode seated within it.

• Optimized Shield Gas Flow & Cooling: Its internal geometry is precisely machined to channel the shield gas (air or nitrogen) in a uniform, laminar flow around the plasma arc. This stabilizes the arc, improves cooling of the nozzle, and results in cleaner cuts with less top-edge rounding and dross. The Kjellberg Nozzle Cap R3028 is integral to the system’s designed performance.

• Guaranteed Standoff & Cut Consistency: The cap establishes and maintains the precise torch-to-work distance (standoff). A worn or incorrect cap alters this distance, leading to erratic arc behavior, poor cut quality, and accelerated consumable wear. The Kjellberg R3028 cap ensures repeatable, correct positioning.

• Enhanced Safety & Process Reliability: By securely containing the plasma arc and preventing accidental contact with live electrical components, it is a key safety device. A properly fitted Kjellberg Nozzle Cap R3028 also prevents gas leaks that can destabilize the cutting process.

• Cost-Effective System Preservation: As the least expensive part of the front-end consumable set, regularly replacing the Kjellberg Cap R3028 is the most economical way to protect your investment in nozzles and electrodes, preventing small issues from causing catastrophic failures.

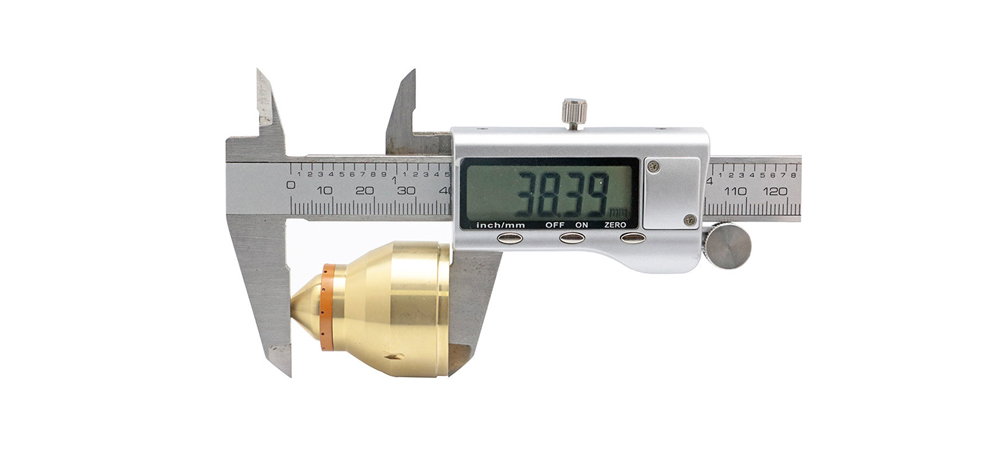

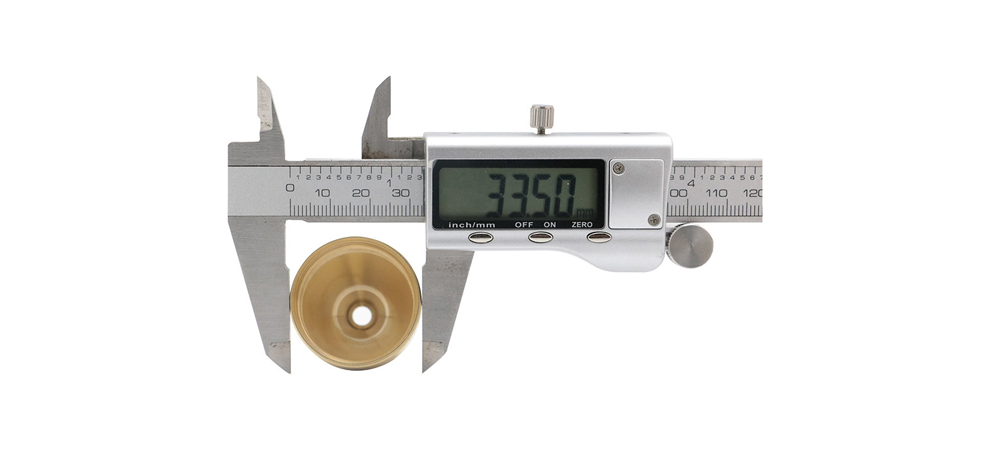

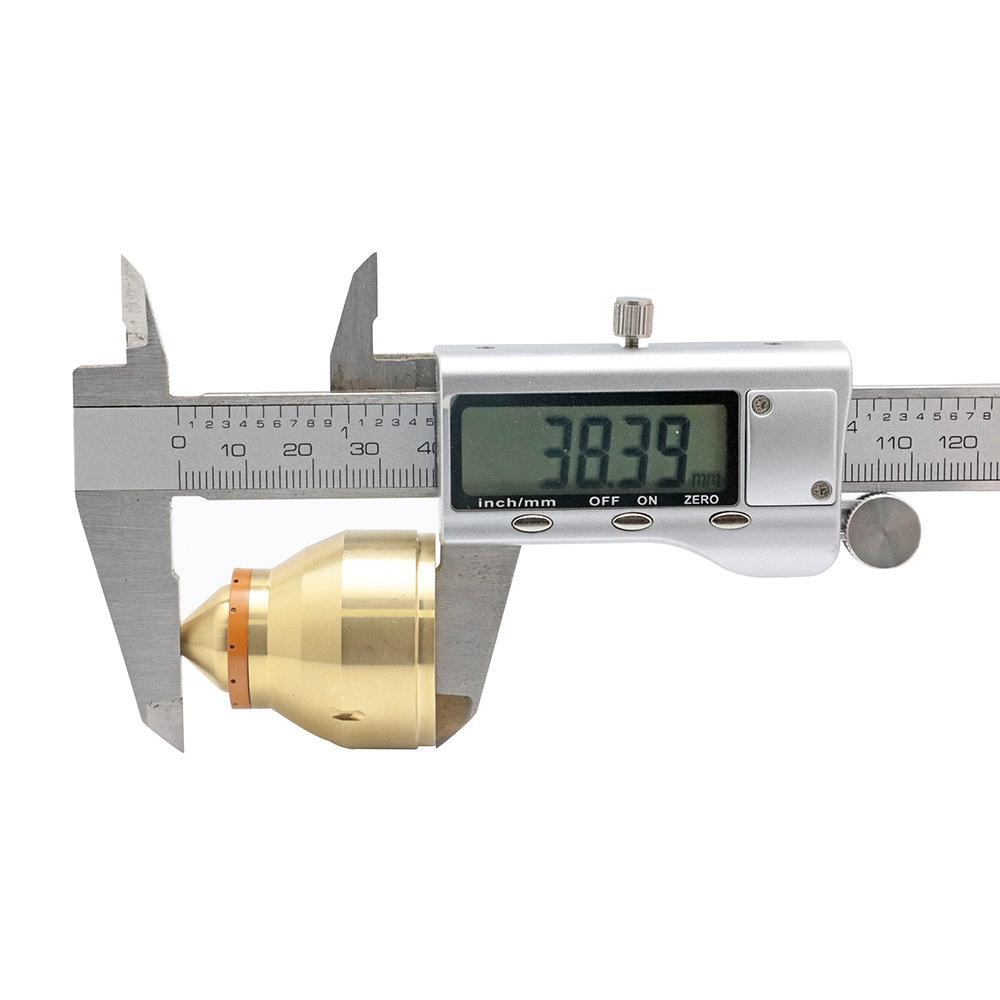

Technical Specifications & Product Parameters

The protective efficacy of the Kjellberg Nozzle Cap R3028 is defined by its precise specifications.

Performance Comparison: Genuine Kjellberg Nozzle Cap R3028 vs. Worn/Generic Cap

The impact of using a genuine, new Kjellberg Cap R3028 versus a compromised alternative is stark.

The verdict is clear: neglecting the Kjellberg Nozzle Cap R3028 undermines the entire cutting process. It is a vital, active component, not a passive cover.

Material Science & Construction: Engineered for the Front Line

The durability of the Kjellberg Nozzle Cap R3028 stems from intelligent material selection and manufacturing.

• High-Strength Aluminum Alloy: Aluminum is chosen for its ideal balance of properties. It is significantly lighter than steel, reducing torch weight, while still offering excellent mechanical strength to withstand impacts. Its high thermal conductivity also helps dissipate heat from the front-end assembly.

• Hard-Anodized Surface Treatment: The cap undergoes a hard anodizing process. This creates an extremely hard, ceramic-like oxide layer on the aluminum surface. This coating gives the Kjellberg Cap R3028 exceptional resistance to abrasion from spatter and greatly reduces the tendency for molten metal to adhere (spatter stick), making it easier to clean and maintain.

• Precision CNC Machining: The internal gas channels, threading, and contact surfaces are machined to exacting tolerances. This precision ensures a perfect seal against the torch body, precise alignment of gas ports, and consistent standoff height—factors critical for the performance of the Kjellberg Nozzle Cap R3028.

• Thermal and Chemical Resilience: The materials are selected to resist the continuous thermal cycling and chemical exposure from cutting different metals (especially when using oxygen), preventing degradation that could alter its dimensions or clog the gas ports.

Optimal Application Scenarios for the Kjellberg Nozzle Cap R3028

The Kjellberg Cap R3028 is essential in any scenario where cut quality and consumable cost control matter.

1. High-Production CNC Cutting: On automated plasma tables, a worn cap is a major source of process variation. A new Kjellberg Nozzle Cap R3028 ensures every part in a nested sheet is cut with identical quality, minimizing scrap and rework.

2. Heavy-Duty and High-Amperage Cutting: When cutting thick plate at high amperages, spatter and heat are intense. The Kjellberg Nozzle Cap R3028 provides essential protection and cooling to maintain system stability under these extreme conditions.

3. Cutting Coated or Primed Materials: Cutting painted, galvanized, or primed steel generates excessive, sticky spatter. The hard-anodized surface of the Kjellberg Cap R3028 resists adhesion, preventing spatter buildup that would disrupt gas flow on a standard cap.

4. Environments with Stringent Quality Control: For fabricators supplying to aerospace, defense, or architectural industries, part consistency is contractual. The Kjellberg R3028 cap is a tool for guaranteeing repeatable process parameters.

5. Preventative Maintenance Programs: Savvy operations include the Kjellberg Nozzle Cap R3028 as part of a scheduled consumable change-out kit (with nozzle and electrode). This proactive approach is the most reliable way to avoid unplanned downtime.

System Integration: The Complete Consumable Set

The Kjellberg Nozzle Cap R3028 is one part of a tightly engineered system. For guaranteed results, it must be used with its matched consumables.

• Nozzle (e.g., Kjellberg Nozzle S2007X): The cap is designed to work with specific nozzle geometries. The spacing between the nozzle tip and the cap’s internal features is critical for gas dynamics. Always use the cap specified for your nozzle type.

• Electrode (e.g., Kjellberg Electrode S002Y): While the cap does not contact the electrode directly, it protects the entire assembly. A failing cap can lead to conditions that destroy a good electrode.

• Swirl Ring / Gas Distributor: This component sits behind the nozzle and dictates the initial gas vortex. The Kjellberg Cap R3028 works downstream of the swirl ring to finalize the gas flow pattern to the workpiece.

• Torch Body: The cap threads directly onto the torch body. Using the correct Kjellberg Nozzle Cap R3028 ensures a proper seal and electrical connection for the pilot arc circuit in many torch designs.

Critical Operational Advice: Inspect and Replace the Cap with Every Nozzle Change. Even if it looks intact, microscopic wear on the contact points and minor spatter in the ports degrade performance. Making the Kjellberg Nozzle Cap R3028 a standard part of your consumable kit is the simplest, most effective practice for maintaining peak cutting performance and protecting your more expensive components.

Conclusion: The Smart Operator’s First Defense

The Kjellberg Nozzle Cap R3028 embodies the principle that excellence in engineering extends to every component, no matter how seemingly simple. It is a pivotal element in transforming electrical energy and gas into a precise, reliable cutting tool. Neglecting this component is akin to removing the protective housing from a precision instrument and expecting it to perform flawlessly in a harsh environment.
