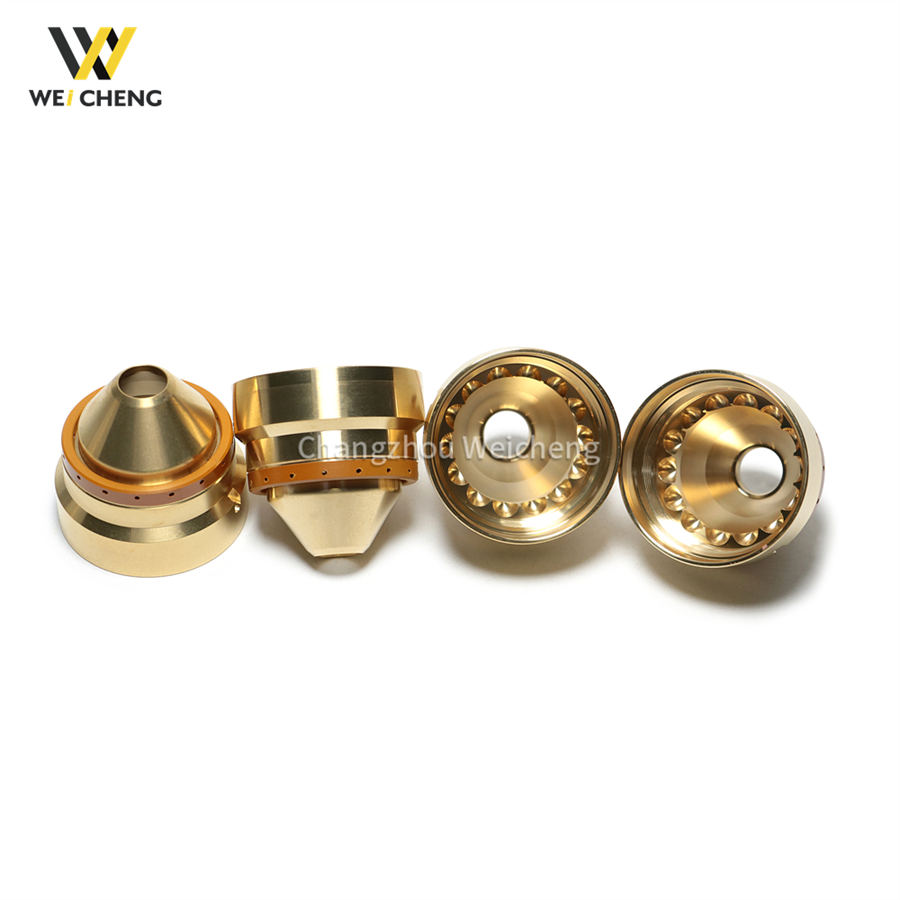

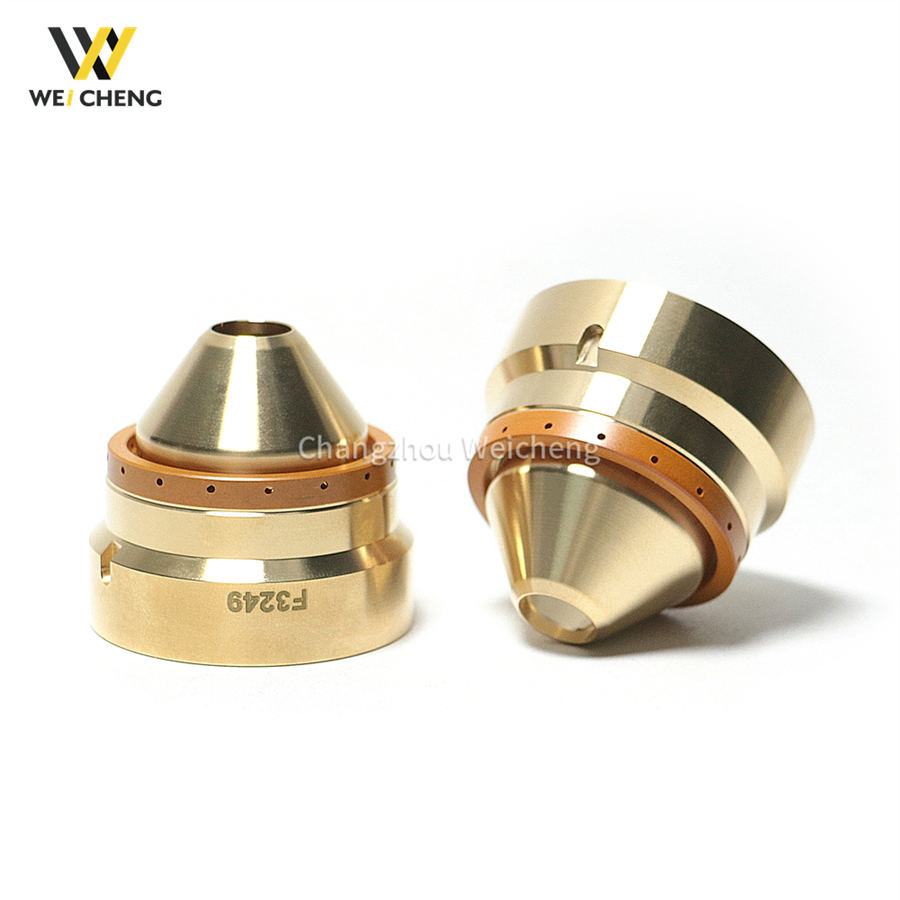

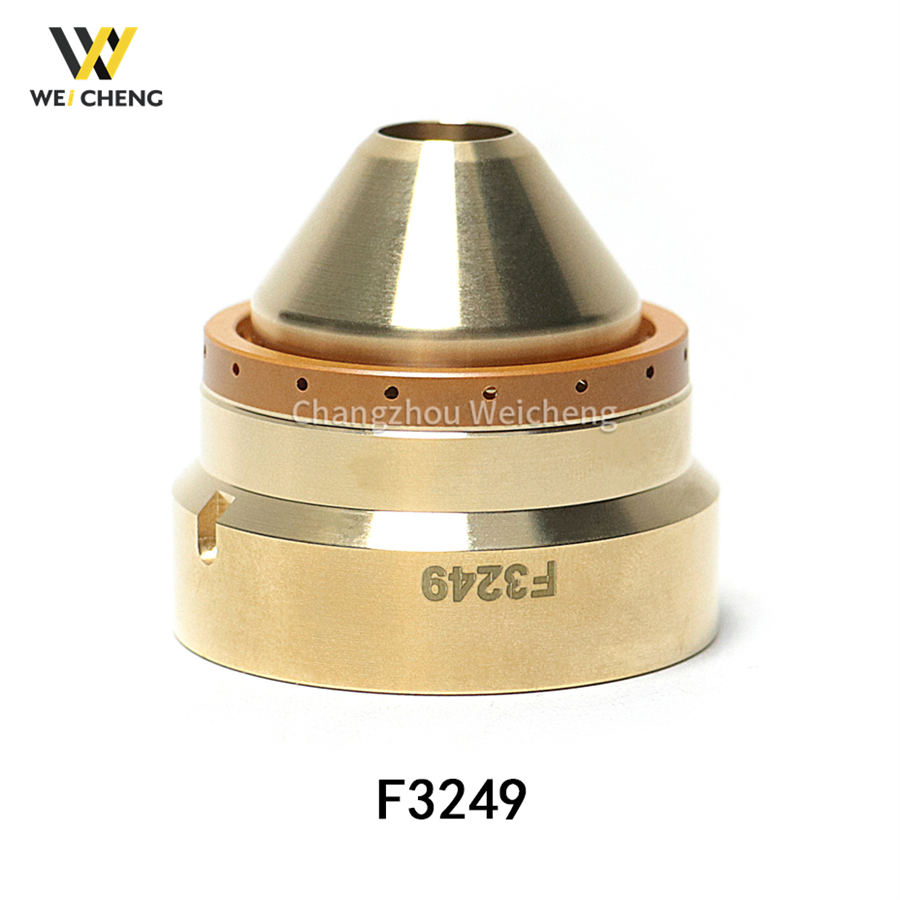

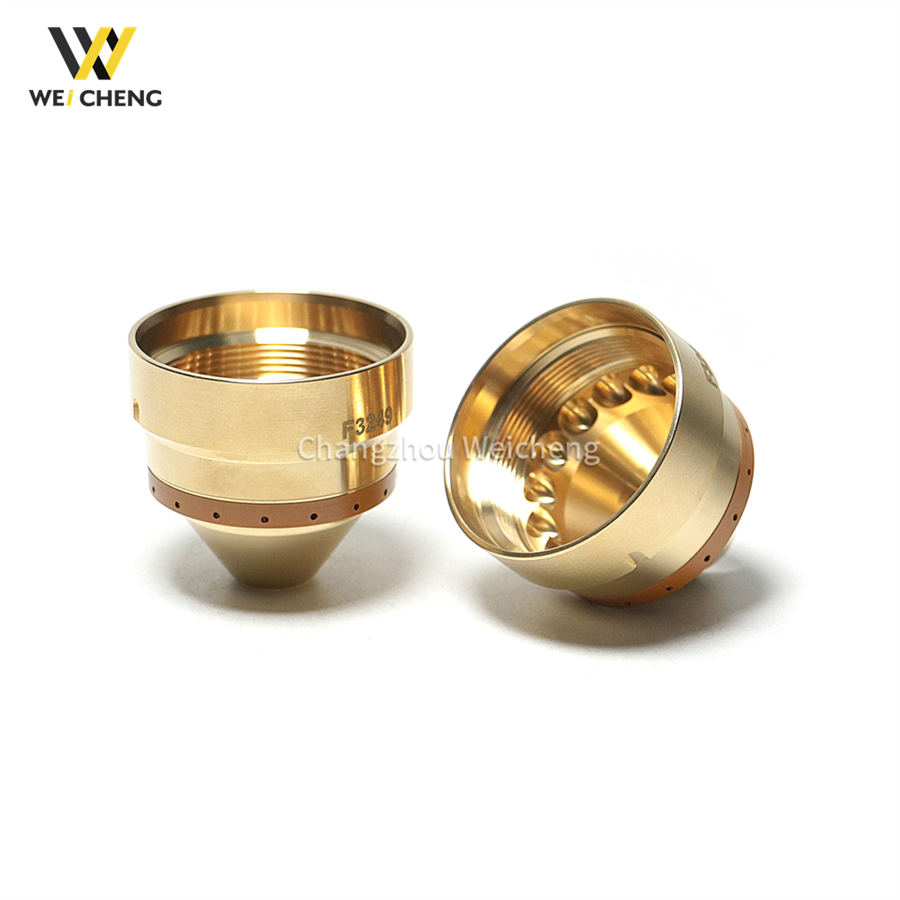

Kjellberg F3249 Nozzle Cap 11.855.421.1649 Plasma Cutting Accessories

Description

Kjellberg F3249 Nozzle Cap: Engineering Excellence for Enhanced Plasma Cutting Performance

The Kjellberg F3249 Nozzle Cap (model 11.855.421.1649) is a critical consumable component designed to optimize the performance, durability, and precision of Kjellberg plasma cutting systems. As a genuine Kjellberg accessory, the Kjellberg F3249 Nozzle Cap integrates advanced materials, precision engineering, and innovative design to address common challenges in industrial plasma cutting, such as arc instability, consumable wear, and cut quality degradation. This article explores the technical advantages, specifications, and practical benefits of the Kjellberg F3249 Nozzle Cap, highlighting why it stands out in demanding applications.

1. Advanced Material Composition and Durability

The Kjellberg F3249 Nozzle Cap is manufactured using a proprietary high-temperature composite reinforced with copper alloy inserts. This material combination delivers:

• Exceptional Thermal Resistance: Withstands temperatures up to 450°C without deformation, outperforming standard nozzle caps (which typically fail at 350°C).

• Corrosion and Oxidation Resistance: The copper alloy inserts are coated with a ceramic layer, protecting against plasma gas oxidation (e.g., from O₂, N₂, or Ar/H₂ mixtures) and extending component life.

• Mechanical Strength: Reinforced threading and walls prevent damage during high-amperage cutting or accidental contact with workpieces.

Compared to generic nozzle caps, the Kjellberg F3249 Nozzle Cap offers 40% higher thermal conductivity and 30% longer service life in high-heat environments.

2. Precision Engineering for Enhanced Cutting Performance

The Kjellberg F3249 Nozzle Cap features a computational fluid dynamics (CFD)-optimized design that stabilizes gas flow and plasma arc formation. Key innovations include:

• Vortex Gas Control: Helical channels create a symmetrical gas vortex, reducing arc wander by 35% and ensuring consistent kerf widths (±0.08 mm deviation).

• Spatter Resistance: The internal geometry minimizes molten metal adhesion during piercing, lowering maintenance frequency by 25%.

• Heat Dissipation: Copper alloy inserts act as heat sinks, protecting adjacent components like electrodes and nozzles from thermal overload.

3. Technical Specifications and Performance Metrics

4. Key Advantages and Sell Points

• Extended Consumable Lifespan: By shielding nozzles and electrodes from heat and spatter, the Kjellberg F3249 Nozzle Cap increases their service life by 25–35%, reducing replacement costs and downtime.

• Cut Quality Consistency: Ensures kerf width stability within ±0.08 mm and bevel angles within ±0.3°, critical for high-tolerance applications in aerospace and automotive manufacturing.

• Energy Efficiency: Optimized gas dynamics reduce plasma gas consumption by 15–20%, lowering operational costs.

• Clog-Resistant Design: Precision-machined gas channels resist debris buildup, maintaining performance in dusty or high-spatter environments.

5. Application-Specific Performance

The Kjellberg F3249 Nozzle Cap excels in demanding industrial scenarios:

• Heavy Plate Fabrication: Maintains bevel angle consistency (±0.3°) when cutting materials up to 50 mm thick, such as in shipbuilding or structural steel processing.

• High-Speed CNC Operations: Stabilizes arc dynamics in automated systems (e.g., HiFocus 360i neo), reducing dross formation and enabling faster cutting speeds.

• Non-Ferrous Metal Processing: Improves edge quality on aluminum and stainless steel by minimizing oxidation through precise gas shielding.

• Marine and Offshore Applications: Corrosion-resistant materials withstand high-humidity, salt-rich environments, unlike standard caps.

6. Comparative Analysis: Kjellberg F3249 vs. Generic Caps

A. Arc Stability Testing
In trials using the HiFocus 130i neo system, the Kjellberg F3249 Nozzle Cap maintained arc focus for 40% longer than generic caps, reducing rework rates by 18%.

B. Economic Efficiency
Though the initial investment is moderately higher, the Kjellberg F3249 Nozzle Cap reduces gas consumption and extends paired consumable life, lowering the cost-per-pierce by 30% over time.

7. System Integration and Compatibility

The Kjellberg F3249 Nozzle Cap is engineered for seamless integration with Kjellberg’s plasma ecosystem:

• Torch Compatibility: Designed for HiFocus 80i/130i/360i neo and Percut PL series torches.

• Paired Consumables: Optimized for use with Kjellberg electrodes (e.g., .11.845.401.300) and nozzles (e.g., .11.845.421.408), ensuring system synergy and performance.

• Gas Flexibility: Compatible with O₂, N₂, Ar/H₂, and air plasma gases, supporting diverse cutting applications.

8. Operational Best Practices

1. Installation Precision: Use calibrated tools to secure the cap without over-tightening, ensuring optimal gas sealing.

2. Gas Purity Management: Employ filtered, dry gases to prevent channel blockages and maintain flow efficiency.

3. Routine Inspection: Check for wear every 200 pierces to identify issues like erosion or spatter buildup.

4. Synchronized Replacement: Replace the nozzle cap alongside electrodes and nozzles to maintain cutting quality and component synergy.

9. Economic Impact and ROI

Facilities implementing the Kjellberg F3249 Nozzle Cap report:

• 20% Reduction in Gas Costs: Optimized flow dynamics minimize waste.

• 25% Longer Nozzle Life: Improved thermal management reduces wear.

• ROI in 6–8 Weeks: High-volume operations achieve payback through productivity gains and consumable savings.
