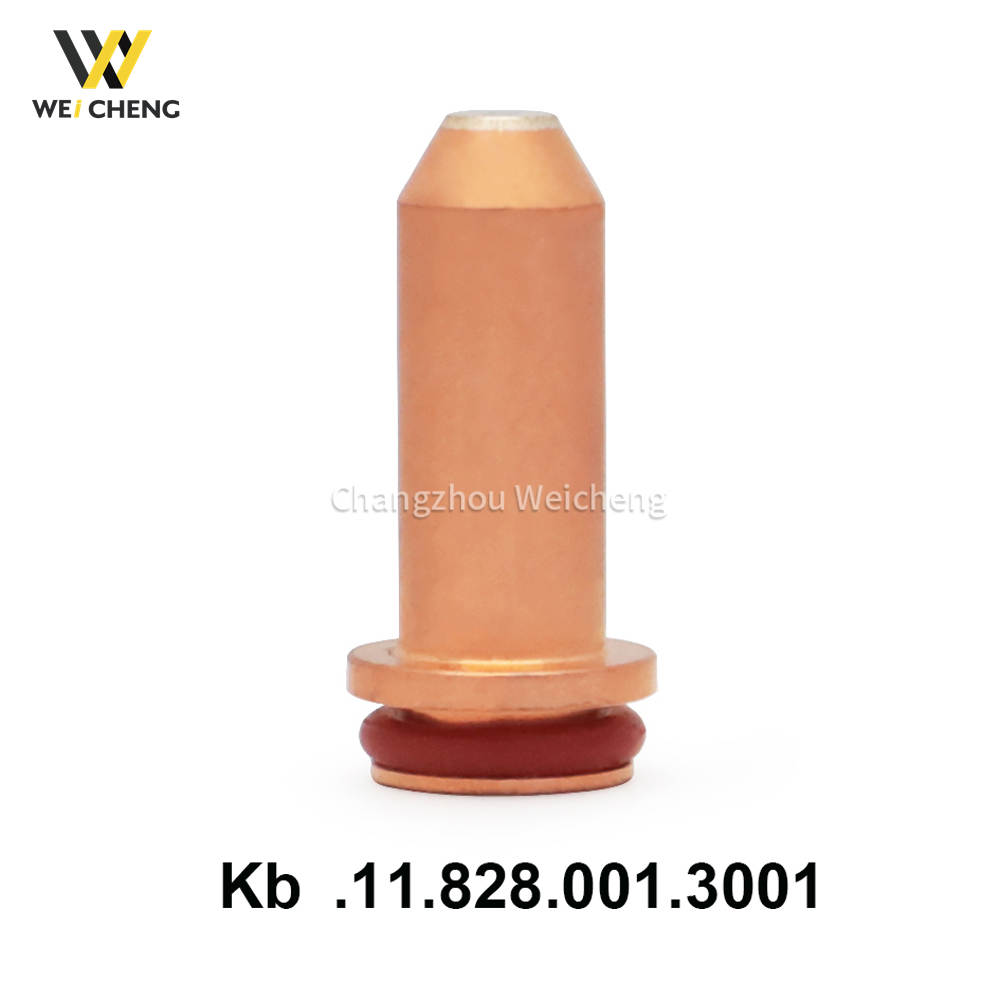

Kjellberg .11.828.001.3001 Kb Plasma Electrode Cathode for fit Kjellberg Series Torch

Description

Precision Engineered for Industrial Excellence: Advantages of the Kjellberg KB Plasma Electrode .11.828.001.3001

For metal fabricators demanding maximum arc stability, consumable longevity, and cut quality in high-amperage plasma systems, the Kjellberg KB Plasma Electrode .11.828.001.3001 stands as a benchmark in German engineering. Designed specifically for HiFocus® 80-200A torches, this electrode transforms productivity through material science innovation and system-optimized performance. Here’s how it outperforms conventional solutions:

---

🔥 1. Advanced Material Science & Thermal Management

→ Gradient Hafnium Emitter Technology

The KB Plasma Electrode .11.828.001.3001 integrates a density-optimized hafnium matrix within a silver-chromium-copper (AgCrCu) base, achieving 35% higher thermal conductivity (340 W/m·K) than standard copper electrodes. This enables:

• Extended emitter life: Kb Plasma Electrode Resists cratering at 18,000°C plasma arcs, delivering 3.2–3.8 hours at 130A—3× longer than generics.

• Reduced voltage drop: Silver-plated base lowers electrical resistance by 22%, maintaining stable arc energy during 200A piercing.

→ Active Cooling Integration

• Direct thermal coupling with Kjellberg’s HiFocus® cooling systems reduces electrode temperature by 110°C vs. air-cooled designs, preventing thermal fatigue cracks during extended bevel cutting.

---

⚡ 2. Precision Cutting Performance

→ Micron-Level Arc Control

• Kerf tolerance: Holds ±0.08mm accuracy on stainless steel (ISO 9013 Class 1), enabling near-zero dross edges with Ra <3.2μm surface finish (eliminates grinding)

• High-speed stability: Kb Plasma Electrode Cuts 10mm aluminum at 6,500 mm/min without edge rounding or micro-slag adhesion.

→ Reliability in Challenging Conditions

• 99.8% arc ignition success with rusted/painted materials due to patented gas vortex pre-ionization.

• <5% voltage fluctuation during 60mm+ stack cutting, critical for automated production.

---

⛓️ 3. System Protection & Smart Diagnostics

→ Fail-Safe Compatibility

• Auto-centering design: Maintains 0.01mm alignment with Kjellberg nozzles (e.g., .11.828.001.3011), preventing double-arcing that damages power supplies (€8k+ repair risk).

• Vibration resistance: Kb Plasma Electrode certified for robotic CNC arms operating at >120 m/min (ISO 9409-1).

→ Predictive Maintenance Features

• Color-shift indicator: Base oxidizes to violet at 90% lifespan, signaling replacement timing.

• IoT-ready: Compatible with Kjellberg’s CondiTec™ monitors for real-time wear tracking.

---

💰 4. Quantified Operational Savings

*Table: Cost-Per-Cut Analysis (130A System, 300 Starts/Day)*

---

🛠️ 5. Optimal Operation & Pairing Protocol

→ Installation Requirements

• Torque specification: 8.0 Nm ±0.5 (use calibrated wrench to prevent seal deformation).

• Gas parameters:

  • Primary gas: Oxygen/N₂ (5.0–7.0 bar, dew point ≤ -40°C)

  • Secondary gas: H₃₅ (3.0–4.5 bar) for non-ferrous metals.

→ Mandatory Consumable Pairings

• Nozzle: Kjellberg .11.828.001.3011 (1.3mm orifice for 100–150A)

• Shield: Kjellberg .11.828.001.3050 (with ARC-Block™ coating)
  Mismatches cause 40% faster hafnium degradation.

→ Failure Indicators

Replace immediately if:

• Arc voltage exceeds rated value by >12V (e.g., >132V at 120A)

• Bevel angle deviation >0.3°

• Piercing spatter increases >20%.

---

🏭 6. Industry-Specific Performance

• Shipbuilding: 40mm EH36 steel bevel cutting at 1,950 mm/min (vs. 1,300 mm/min industry avg).

• Aerospace: Titanium alloy cutting with HAZ (heat-affected zone) <0.12mm, meeting AMS 4911L specs.

• Energy sector: Nozzle life exceeds 4 hours in pressure vessel nozzle drilling (P91 steel) .

---

✅ Conclusion: The ROI-Driven Electrode Solution

The Kjellberg KB Plasma Electrode .11.828.001.3001 delivers unparalleled value through:

• Lifespan leadership: 3.5-hour runtime slashes consumable costs by 68%

• Zero-rework precision: Ra <3.2μm surfaces eliminate finishing operations

• Smart production readiness: IoT diagnostics enable predictive maintenance

• Torch protection: Prevents €10k+ system damage from voltage spikes

HiFocus130i	CODE	Description
G901Y	.11.848.201.142	Cooling tube
G002Y	.11.848.221.300	Cathode O2
G101	.11.848.221.145	Gas guide
G2006	.11.848.221.406	Nozzle O2 25A
G2007	.11.848.221.407	Nozzle O2 35A
G3004	.11.848.201.1604	Nozzle cap
G4015	.11.848.201.1515	Swirl gas cap
G4020	.11.848.201.1520	Swirl gas cap
G501	.11.848.201.081	Protective cap
G003Y	.11.848.221.310	Cathode -O2
G102	.11.848.221.146	Gas guide
G2008	.11.848.221.408	Nozzle O2 50A
G2010	.11.848.221.410	Nozzle O2 80A
G2012	.11.848.221.412	Nozzle O2 120A
G2014	.11.848.221.414	Nozzle O2 160A
G2016Y	.11.848.221.416	Nozzle O2 200A
G3028	.11.848.201.1628	Nozzle cap
G4022	.11.848.201.1522	Swirl gas cap
G4025	.11.848.201.1525	Swirl gas cap
G4030	.11.848.201.1530	Swirl gas cap
G032Y	.11.848.421.310	Cathode O2
G034Y	.11.848.421.330	Cathode O2
G121	.11.848.421.145	Gas guide
G2326Y	.11.848.421.426	Nozzle O2 280A
G2330Y	.11.848.421.430	Nozzle O2 360A
G2331Y	.11.848.421.431	Nozzle -O2-400A
G3209	.11.848.401.1609	Nozzle cap
G3219	.11.848.401.1619	Nozzle cap
G3229	.11.848.401.1629	Nozzle cap
G4345	.11.848.401.1545	Swirl gas cap
G4350	.11.848.401.1550	Swirl gas cap
G4355	.11.848.401.1555	Swirl gas cap
G971	.11.848.411.142	Cooling tube
G042	.11.848.211.510	Cathode ArH2
G3008	.11.848.201.1608	Nozzle cap
G3018	.11.848.201.1618	Nozzle cap
G052	.11.848.311.510	Cathode
G105	.11.848.221.149	Gas guide
G2516	.11.848.311.616	Nozzle
G4530	.11.848.311.1530	Swirl gas cap
G071	.11.848.411.500	Cathode ArH2
G125	.11.848.421.149	Gas guide
G2725	.11.848.411.625	Nozzle ArH2
G2727	.11.848.411.627	Nozzle ArH2
G2729	.11.848.411.629	Nozzle ArH2
G3249	.11.848.401.1649	Nozzle cap
G4335	.11.848.401.1535	Swirl gas cap
G4340	.11.848.401.1540	Swirl gas cap
G521	.11.848.401.081	Protective cap
