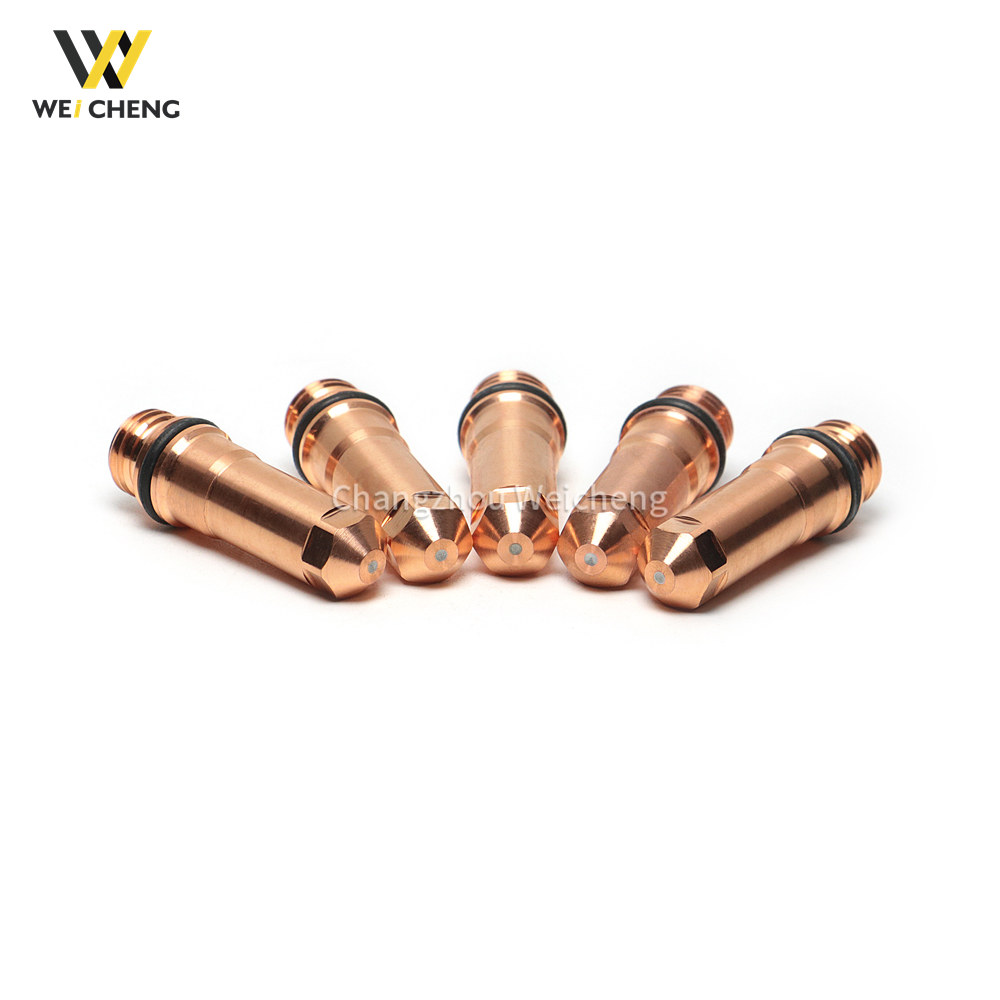

HPR130 260 Electrode 220187 Plasma Torch Consumable

Description

HPR130 260 Electrode 220187: The High-Performance Electrode Engineered for Extended Duty Cycles and Superior Thermal Management

In the demanding landscape of high-definition plasma cutting, where prolonged operation and thermal stability are critical to productivity, every component must be engineered to perform under sustained load. For operations that utilize the Hypertherm HPR130 system in extended production runs, high-duty-cycle applications, or processes generating significant heat, standard electrodes may face accelerated wear. Addressing this specific challenge is the HPR130 260 Electrode 220187. This component is a high-performance electrode variant, meticulously designed to offer enhanced durability, superior thermal management, and consistent arc stability for applications where maintaining peak performance over longer periods is paramount.

This comprehensive guide provides an in-depth examination of the HPR130 260 Electrode 220187. We will analyze its advanced design focused on sustained operation, the specialized materials that facilitate its robust performance, and the tangible benefits it delivers in high-throughput environments. Through detailed technical specifications, a clear comparative analysis, and an exploration of its ideal operational ecosystem, this article will demonstrate why the 220187 high-performance electrode is the strategic choice for fabricators prioritizing uninterrupted production and long-term cost efficiency.

The Sustained Performance Mission: Engineered for Reliability in High-Heat Environments

The HPR130 260 Electrode 220187 serves as the critical cathode for plasma arc generation. Its design philosophy extends beyond basic functionality to address the challenges of thermal accumulation and extended duty cycles. It is engineered to maintain its structural integrity and optimal emissivity even as torch temperatures rise during long cutting sessions or repeated high-amperage piercing. This focus on sustained thermal management results in more predictable wear, extended service life under continuous operation, and unwavering cut quality from the beginning to the end of a long production shift.

Core Selling Points of the HPR130 260 Electrode 220187:

• Enhanced Thermal Management for Extended Runs: The HPR130 260 Electrode 220187 is designed with materials and geometry that optimize heat dissipation away from the critical hafnium emitter. This prevents overheating and the associated premature wear or deformation, allowing the electrode to maintain stable performance throughout prolonged, high-heat cutting applications.

• Extended Service Life in High-Duty-Cycle Applications: In CNC production cells, robotic applications, or manual operations with minimal cool-down intervals, electrode life is often limited by thermal fatigue. The 220187 electrode is built to withstand these conditions, offering a longer operational lifespan compared to standard electrodes, thereby reducing changeover frequency and associated downtime.

• Consistent Arc Stability Under Thermal Load: A common challenge in extended cutting is the gradual degradation of arc quality as components heat up. This electrode is engineered to resist this drift, providing a stable, focused plasma arc that ensures consistent cut quality—edge squareness, dross control, and kerf width—even during marathon cutting sessions.

• Optimized for High-Amperage and High-Speed Processes: When pushing the HPR130 to its 130-amp capacity or utilizing higher cutting speeds, the thermal load on the electrode increases significantly. The HPR130 260 Electrode 220187 provides the necessary resilience for these demanding parameters, supporting both productivity and quality goals.

• Reliable Performance in Challenging Piercing Scenarios: Repeated piercing of thick plate generates intense, localized heat. The robust construction and thermal handling of this electrode make it a reliable choice for applications involving frequent piercing, reducing the risk of premature failure during this most stressful phase of cutting.

Technical Specifications & Product Parameters

The performance-oriented design of the HPR130 260 Electrode 220187 is defined by its specialized specifications.

Performance Comparison: HPR130 260 Electrode 220187 vs. Standard Electrode

The value of the high-performance electrode is most evident when evaluated in scenarios of sustained thermal load.

Material Science & Construction: Built for Endurance

The enhanced capabilities of the HPR130 260 Electrode 220187 are rooted in material science aimed at combating thermal fatigue.

• High-Temperature Copper Alloy: The body utilizes a copper alloy formulated for superior high-temperature strength and thermal conductivity. This ensures efficient heat transfer from the emitter and resists the softening (annealing) that can occur in standard copper under sustained high heat, which is critical for maintaining dimensional stability.

• Optimized Hafnium Emitter Interface: The hafnium emitter and its bond with the copper body are engineered to handle thermal cycling. This interface is designed to remain secure and conductive, preventing the formation of hot spots or gaps that could lead to erratic arcing or premature failure.

• Advanced Thermal Pathway Design: The physical design of the electrode may incorporate features that enhance its role as a heat sink, effectively pulling thermal energy away from the arc attachment point and into the larger mass of the electrode and the torch’s cooling system.

• Precision Manufacturing for Reliability: As with all genuine Hypertherm consumables, it is manufactured to exacting tolerances. This precision ensures consistent electrical contact and seating within the torch, which is itself crucial for reliable heat transfer and overall system performance.

Ideal Application Scenarios for the HPR130 260 Electrode 220187

This electrode is designed for environments where cutting continuity and thermal management are primary concerns.

1. Extended Unattended CNC Production (Lights-Out Manufacturing): In automated cells running for 8-16 hours continuously, the HPR130 260 Electrode 220187 helps maintain process stability and prevents mid-run failures due to thermal buildup.

2. High-Speed Cutting of Medium to Thick Plate: Cutting at elevated speeds generates more heat. This electrode manages that increased thermal load, supporting both the speed and quality objectives of the operation.

3. Production Shops with High Machine Utilization: In job shops or fabricators running multiple shifts where plasma systems are in near-constant use, the extended thermal resilience reduces unscheduled downtime for consumable changes.

4. Applications with Frequent Piercing: Any process involving a high number of pierces per sheet or per shift, such as cutting nested parts from thick plate, will benefit from the electrode’s ability to handle repeated thermal shock.

5. Environments with Limited Auxiliary Cooling: In systems where torch cooling is primarily provided by gas flow, the inherent thermal management of the 220187 electrode provides an additional margin of safety and performance consistency.

System Integration: Partnering for Peak Performance

To achieve its full potential, the HPR130 260 Electrode 220187 should be part of a well-maintained system.

• High-Quality Nozzle (220191 or 220632): Always pair with a new or near-new genuine nozzle. Consider using a nozzle also designed for consistent performance, such as the 220632, for synergistic benefits.

• Appropriate Shield: Ensure the shield is clean and in good condition to maintain proper gas shielding, which also contributes to front-end cooling.

• Effective Swirl Ring (e.g., 220179): A clean, undamaged swirl ring is essential for proper gas vortex and cooling flow to the electrode tip.

• Optimal Gas Supply and Torch Condition: Clean, dry gas and a torch in good repair are foundational to realizing the benefits of any performance consumable.

Conclusion: The Strategic Enabler of Uninterrupted Production

The HPR130 260 Electrode 220187 represents an investment in production reliability and predictability. It is engineered for the fabricator whose competitive edge relies on the ability to execute long production runs with unwavering quality and minimal interruption. By directly addressing the challenge of thermal management within the consumable stack, it provides a tangible advantage in the most demanding production scenarios.
