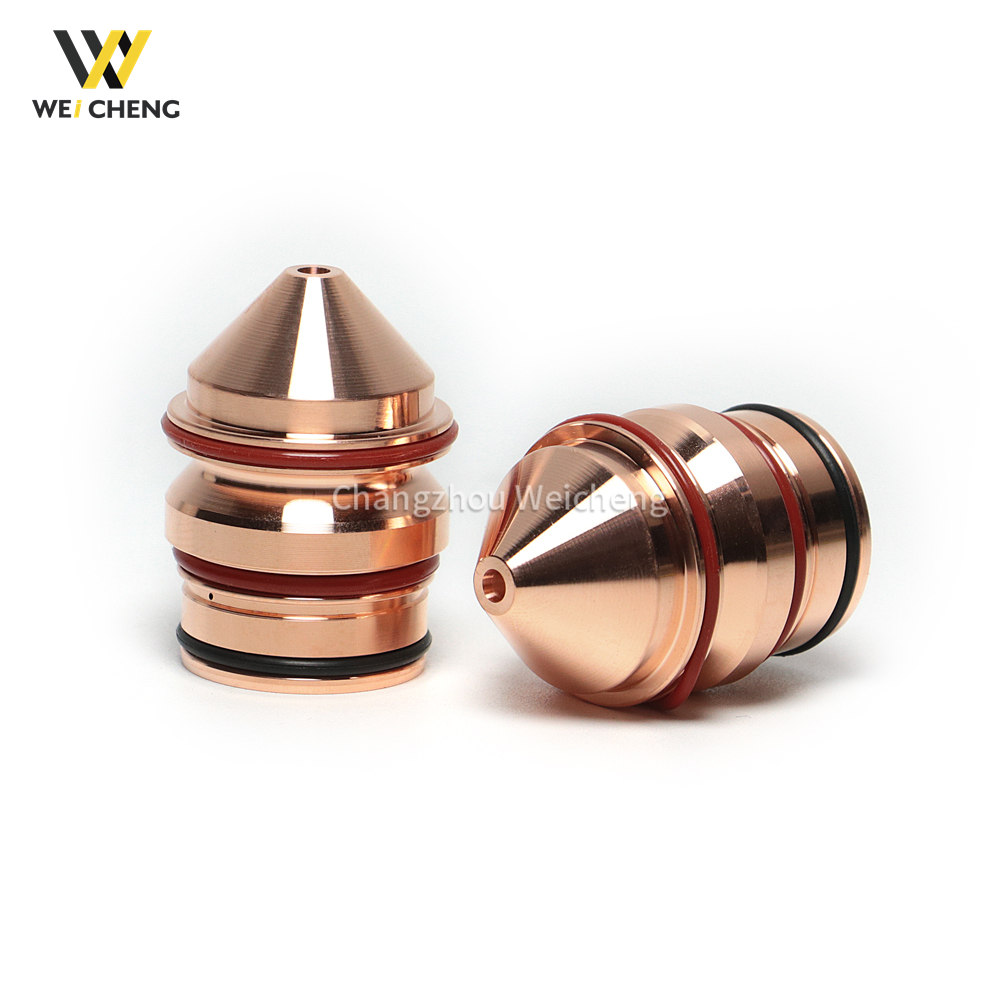

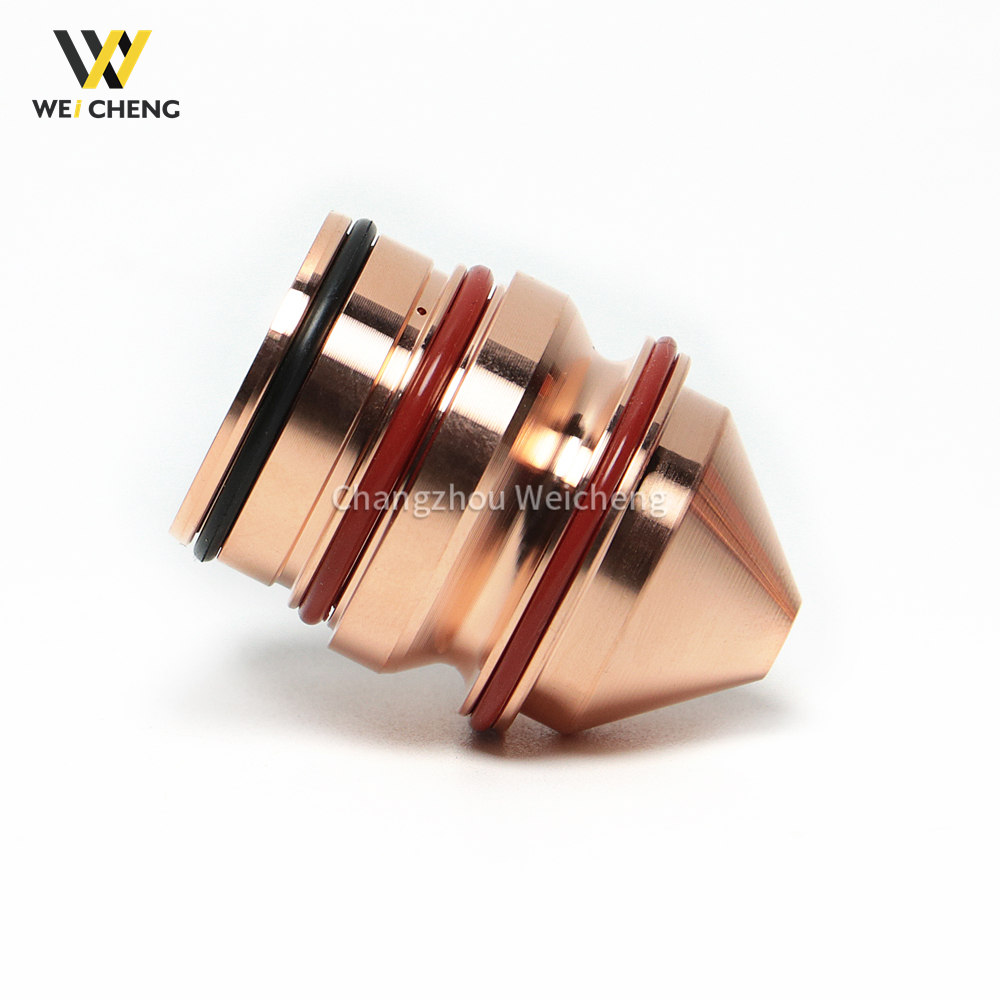

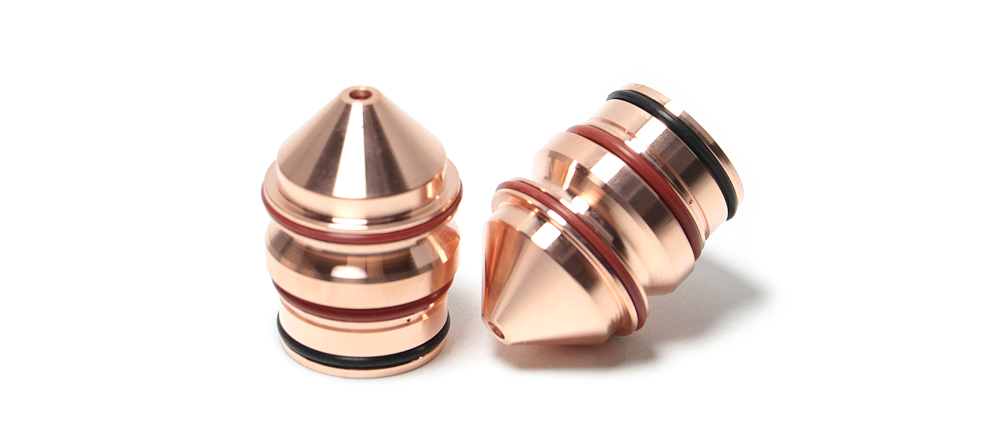

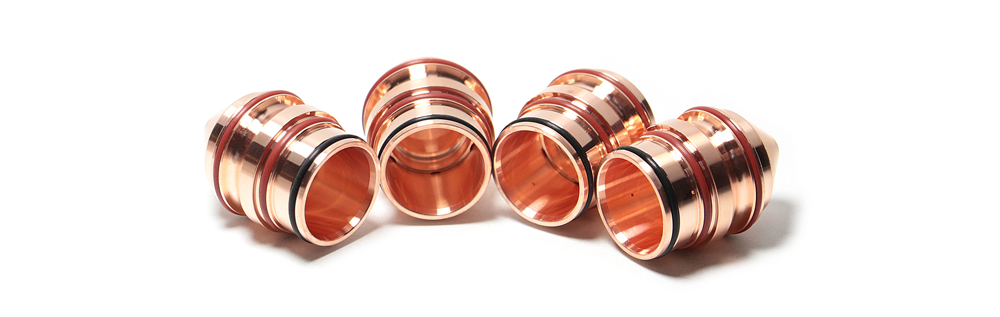

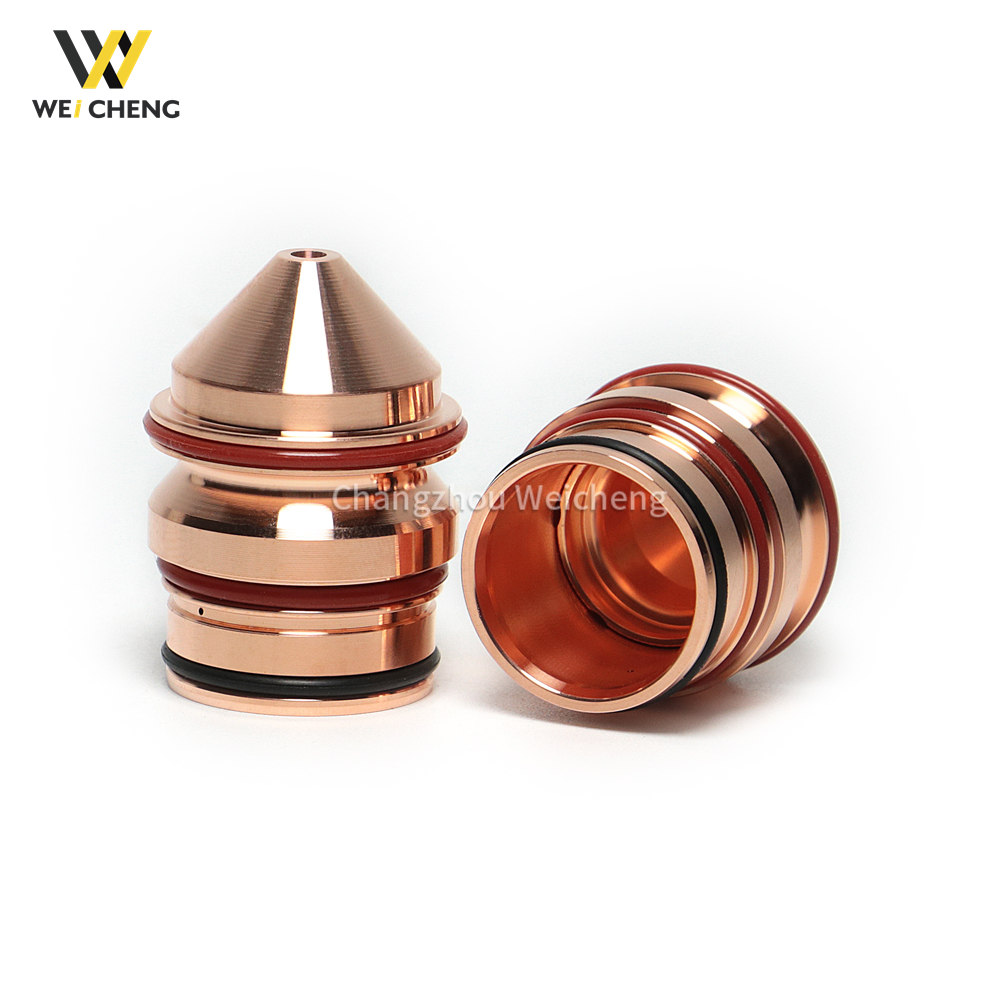

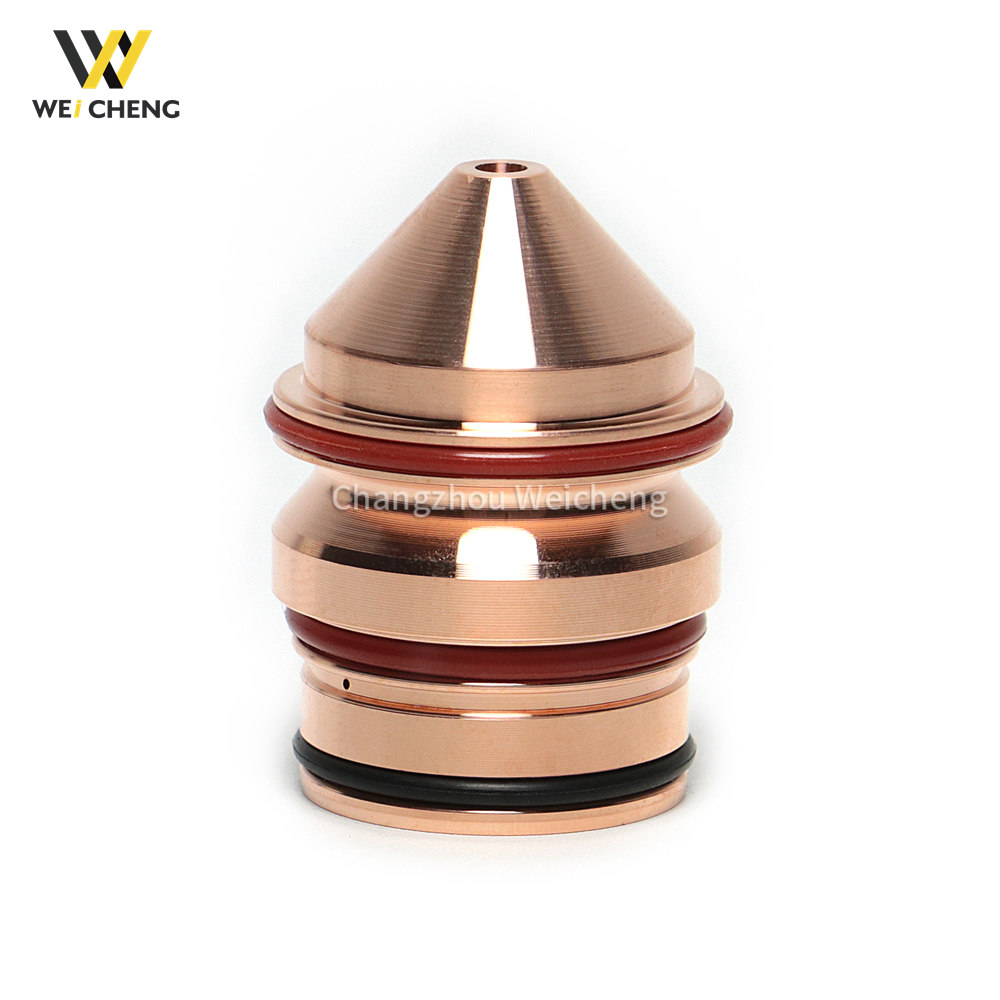

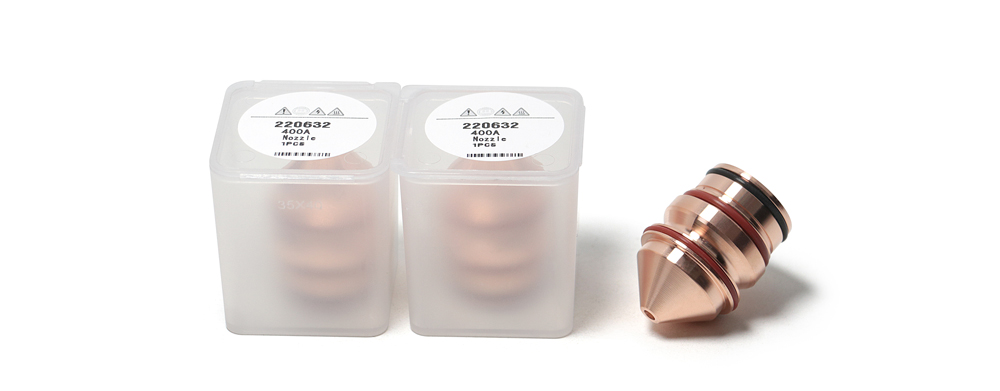

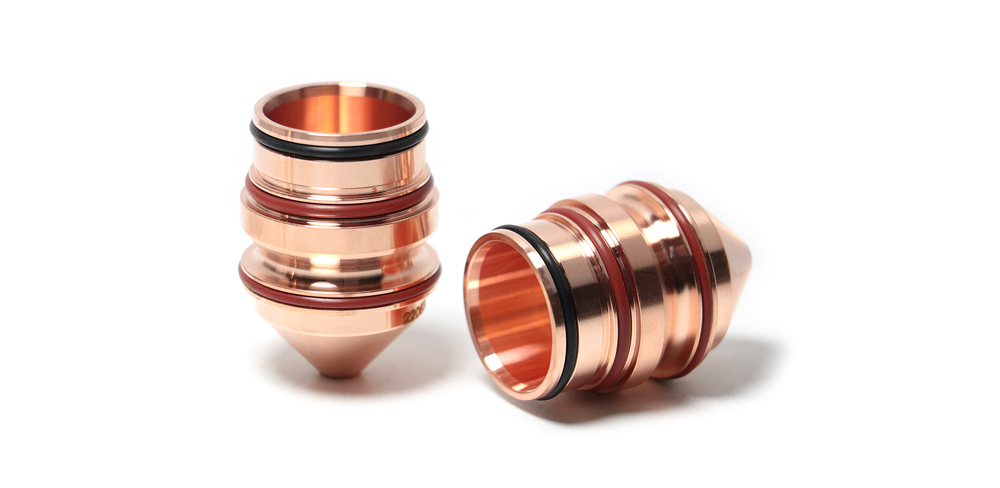

Consommable pour torche à plasma HPR130 260, buse 220632

Description

HPR130 260 Nozzle 220632: The Precision-Optimized Nozzle for Superior Edge Quality in Advanced Material Processing

Within the high-stakes domain of precision metal fabrication, the difference between an acceptable cut and an exceptional one often lies in the subtleties of edge quality, angularity, and metallurgical integrity. For operators of the Hypertherm HPR130 system working with advanced alloys, thin-gauge materials, or applications where the cut edge is functionally critical, a standard high-definition nozzle may not suffice. This is the precise engineering gap filled by the HPR130 260 Buse 220632. This component is not merely a consumable; it is a precision tool engineered to refine the plasma arc’s characteristics, delivering optimized performance for applications where exceptional edge finish, minimal heat input, and superior cut-face quality are the primary objectives.

Ce guide complet fournit une analyse approfondie de la HPR130 260 Buse 220632. We will examine its specialized design parameters, the materials that enable its performance, and the specific operational benefits it delivers. Through detailed technical specifications, a clear comparison with standard high-definition nozzles, and an exploration of its ideal use cases, this article will demonstrate why the 220632 precision nozzle is the definitive choice for fabricators pushing the boundaries of quality in aerospace, medical, and high-tolerance manufacturing.

The Precision Mission: Optimizing Arc Characteristics for Flawless Results

Le HPR130 260 Buse 220632 performs the fundamental task of constricting the plasma arc, but its engineering focuses on refining the arc’s properties for premium outcomes. It is designed to produce a exceptionally stable, concentrated, and consistent plasma jet. This optimization leads to measurable improvements in cut edge characteristics: reduced top-edge rounding, near-vertical sidewalls, a smoother cut face finish, and minimized dross formation across a wider parameter window. The HPR130 260 Buse 220632 is engineered for the user whose priority is achieving the absolute best possible edge condition from the HPR130 system.

Core Selling Points of the HPR130 260 Nozzle 220632:

• Exceptional Edge Finish and Angularity: Le principal avantage du HPR130 260 Buse 220632 is its ability to produce cuts with superior edge quality. This includes significantly less top-edge rounding or beading, straighter sidewalls (bevel angles often under 2-3 degrees), and a noticeably smoother surface finish on the cut face, reducing or eliminating secondary finishing operations.

• Enhanced Process Stability for Intricate Work: La buse’s design promotes remarkable arc stability, which is critical when cutting fine features, small holes, or complex contours. This stability minimizes arc wander and fluctuation, ensuring dimensional accuracy and edge consistency in delicate or detailed parts.

• Optimized for Thin to Medium Material Excellence: While capable on thicker plate, the 220632 nozzle truly excels in the range from gauge material up to approximately 25mm (1″), where control over heat input and kerf quality is most challenging and impactful on the final part.

• Reduced Heat-Affected Zone (HAZ): A more focused and efficient arc can translate to a narrower heat-affected zone along the cut edge. This is a critical benefit for materials sensitive to thermal distortion or for applications where subsequent welding requires a minimal HAZ.

• Superior Performance on Stainless Steel and Aluminum: The refined arc characteristics are particularly beneficial when cutting non-ferrous metals and stainless steels, where controlling dross formation and edge oxidation is paramount for achieving weld-ready or aesthetically perfect edges.

Spécifications techniques & Paramètres du produit

The precision performance of the HPR130 260 Buse 220632 is defined by its specialized specifications

Performance Comparison: HPR130 260 Nozzle 220632 (Precision) vs. Standard HD Nozzle (220191)

The value of the precision-optimized nozzle is revealed in a direct, quality-focused comparison.

*Cette comparaison positionne le HPR130 260 Buse 220632 as a specialist tool for quality-critical applications, where the cost of secondary processing or part rejection outweighs the premium consumable cost.*

Science du matériel & Construction: Precision at the Orifice

Les performances améliorées du HPR130 260 Buse 220632 is rooted in precision engineering and meticulous manufacturing.

• High-Fidelity Copper Alloy: Utilizes an oxygen-free, high-conductivity copper to ensure rapid and uniform heat dissipation, which is essential for maintaining the precise orifice geometry under thermal load.

• Micro-Precision Orifice Machining: The critical orifice is manufactured to exceptional tolerances regarding diameter, concentricity, and internal surface finish. A perfectly round, smooth bore is fundamental to creating a symmetrical, stable plasma column. This level of precision exceeds that of a standard nozzle.

• Optimized Internal Gas Flow Paths: The internal geometry leading to the orifice is designed to accelerate and condition the gas flow with minimal turbulence. This « pre-conditioning » results in a more laminar and focused plasma stream as it exits the nozzle.

• Specialized Surface Treatments: May feature advanced surface preparations or platings that enhance emissivity or protect the orifice from micro-erosion in its early life, helping to maintain peak performance characteristics longer.

Ideal Application Scenarios for the HPR130 260 Nozzle 220632

This nozzle delivers its maximum return in environments where cut quality is a direct component of product value or compliance.

1. Fabrication de composants aérospatiaux : Cutting titanium, Inconel, aluminum, and high-grade stainless steels where edge quality, minimal HAZ, and dimensional accuracy are critical for structural integrity and certification.

2. Fabrication de dispositifs médicaux et d’instruments chirurgicaux : Producing implants, instrument bodies, and device components from stainless steels and specialty alloys, where edge finish directly impacts biocompatibility, cleanability, and performance.

3. High-End Architectural Metalwork and Sculpture: Creating visible elements from stainless steel, aluminum, or weathering steel where the cut edge is an aesthetic feature and must be smooth, consistent, and free of discoloration.

4. Electronics and Precision Enclosure Manufacturing: Cutting sheet metal for chassis, panels, and shields where burr-free, dross-free edges are required to ensure proper fit-up, electrical safety, and a premium appearance.

5. Prototyping and Research & Développement: Where material costs are high and first-cut success is paramount, the precision and consistency offered by the 220632 nozzle reduce waste and ensure reliable results.

System Integration: The Complete Precision Cutting Ensemble

Pour atteindre sa performance nominale, le HPR130 260 Buse 220632 requires a system calibrated for precision.

• High-Quality Electrode (220190): Must be paired with a genuine, new, or near-new electrode. A worn electrode will destabilize the arc and negate the nozzle’s benefits.

• Compatible Precision Shield (e.g., 220636): For optimal results, use a shield designed for quality-focused processes, such as the 220636 optimized for oxygen cutting, to ensure proper gas shielding.

• Clean Swirl Ring (220179/220553): A clean, undamaged swirl ring is non-negotiable. Consider using a performance variant (220553) for the most consistent vortex delivery.

• Impeccable Machine Calibration: This includes precise automatic height control (AHC), accurate cutting speed, and clean, dry, high-purity gases. The nozzle’s potential is unlocked only within a well-tuned system.

Meilleure pratique : Lors de la mise en œuvre du HPR130 260 Buse 220632, conduct test cuts to fine-tune speed, height, and gas pressure parameters. Its optimized design may allow for slight increases in cutting speed while maintaining or improving quality compared to standard nozzles.

Conclusion: The Strategic Investment in Uncompromised Quality

Le HPR130 260 Buse 220632 represents a commitment to achieving the pinnacle of plasma cutting quality. It is engineered for the fabricator who recognizes that in high-value manufacturing, the cost of consumables is insignificant compared to the cost of rework, scrap, or compromised product performance. By delivering measurable improvements in edge finish, angularity, and process consistency, it transforms the plasma cut from a fabrication step into a value-adding process.
