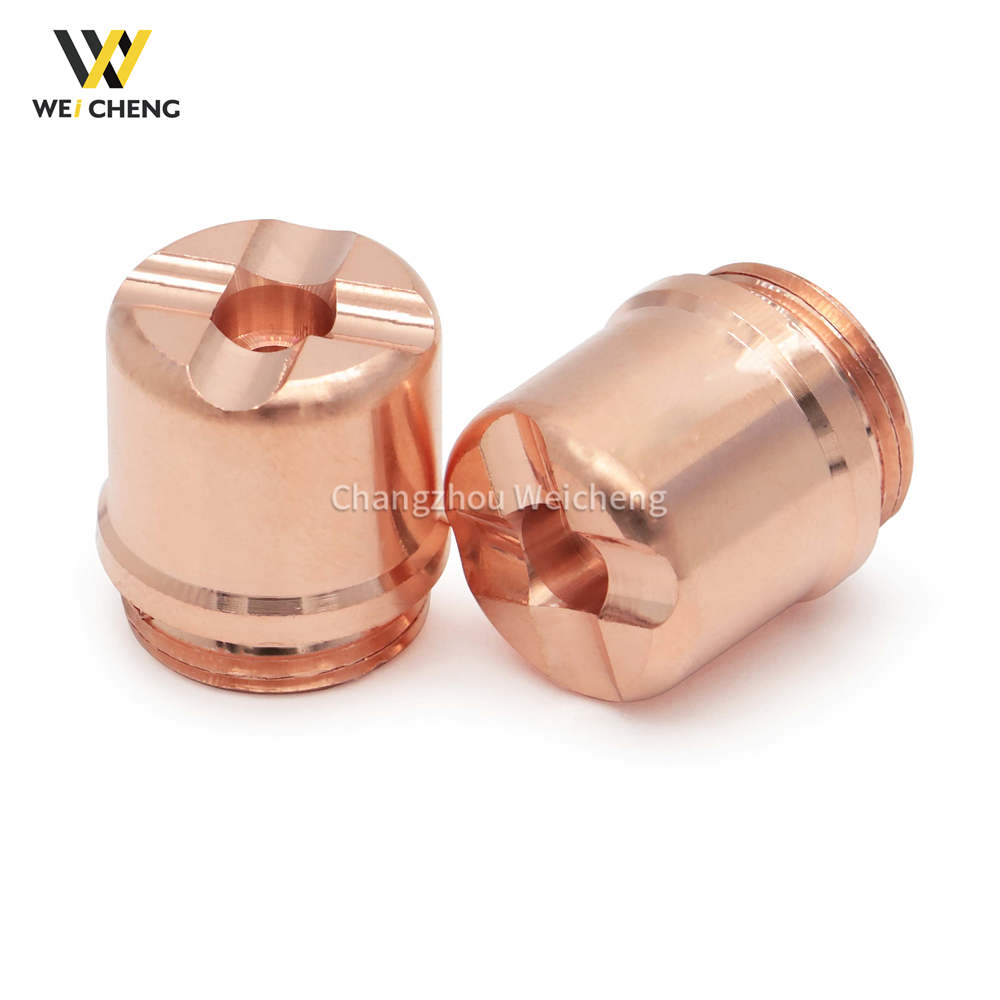

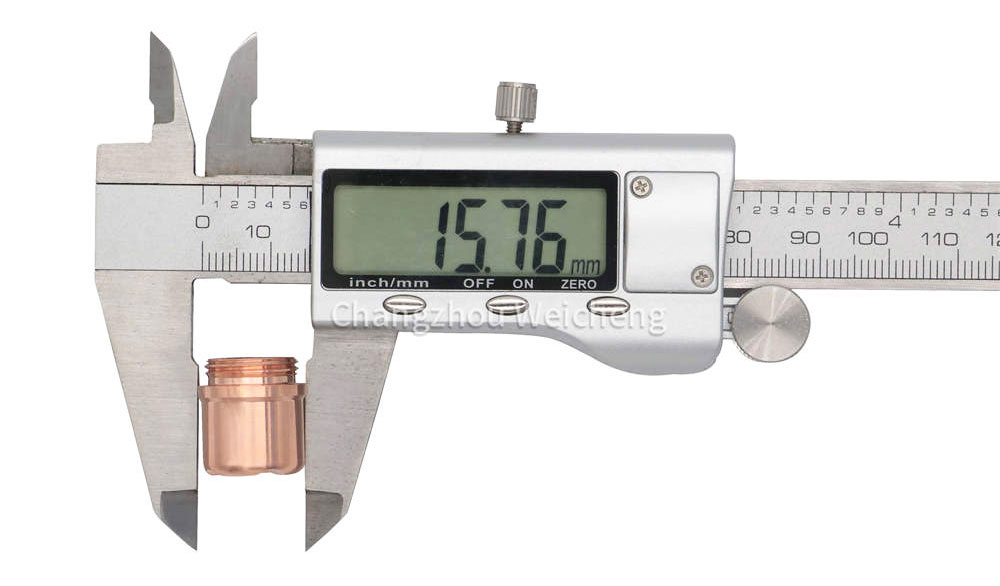

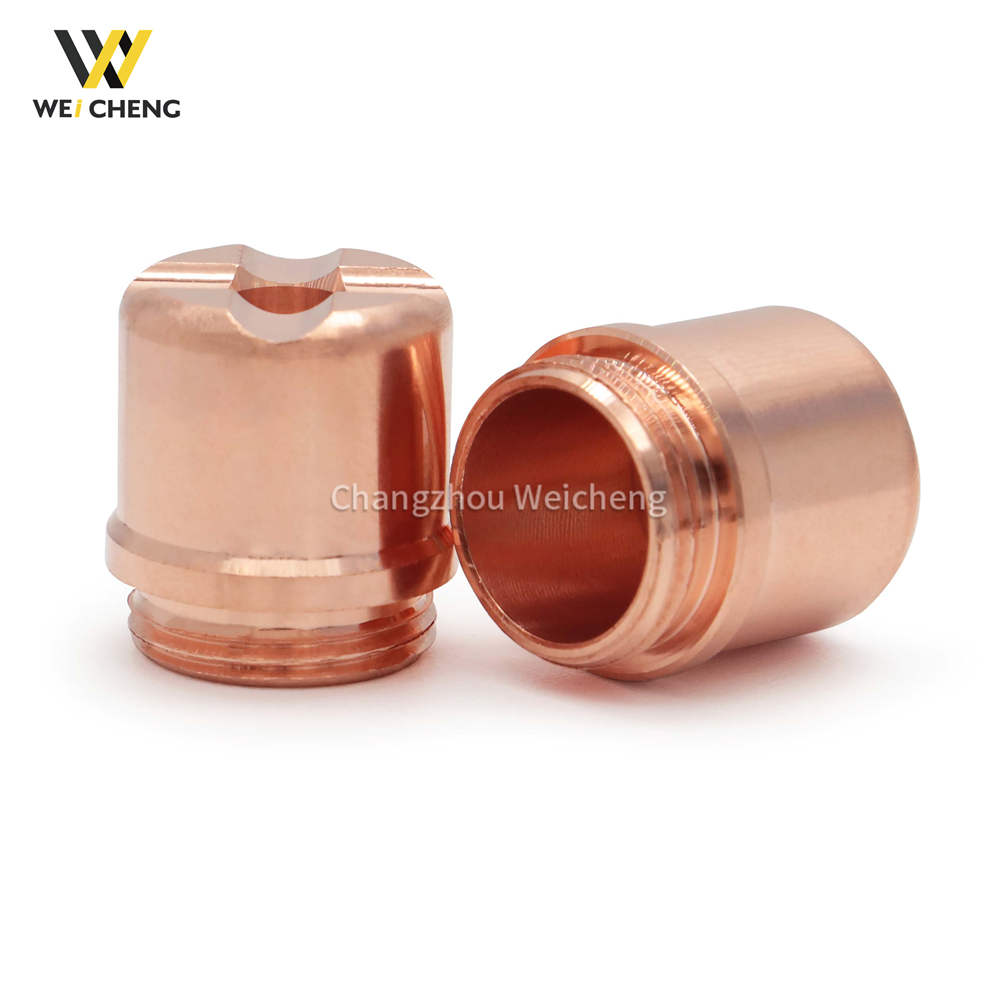

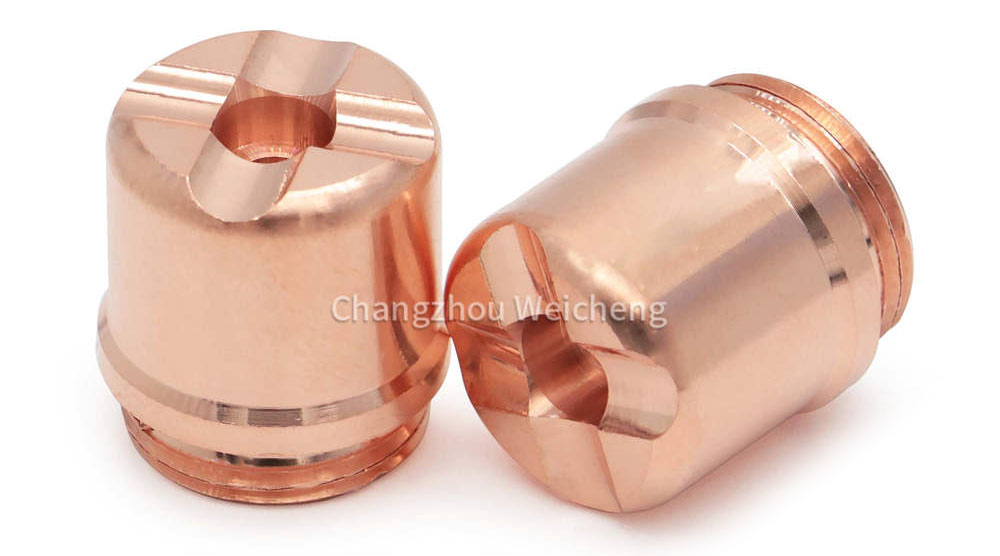

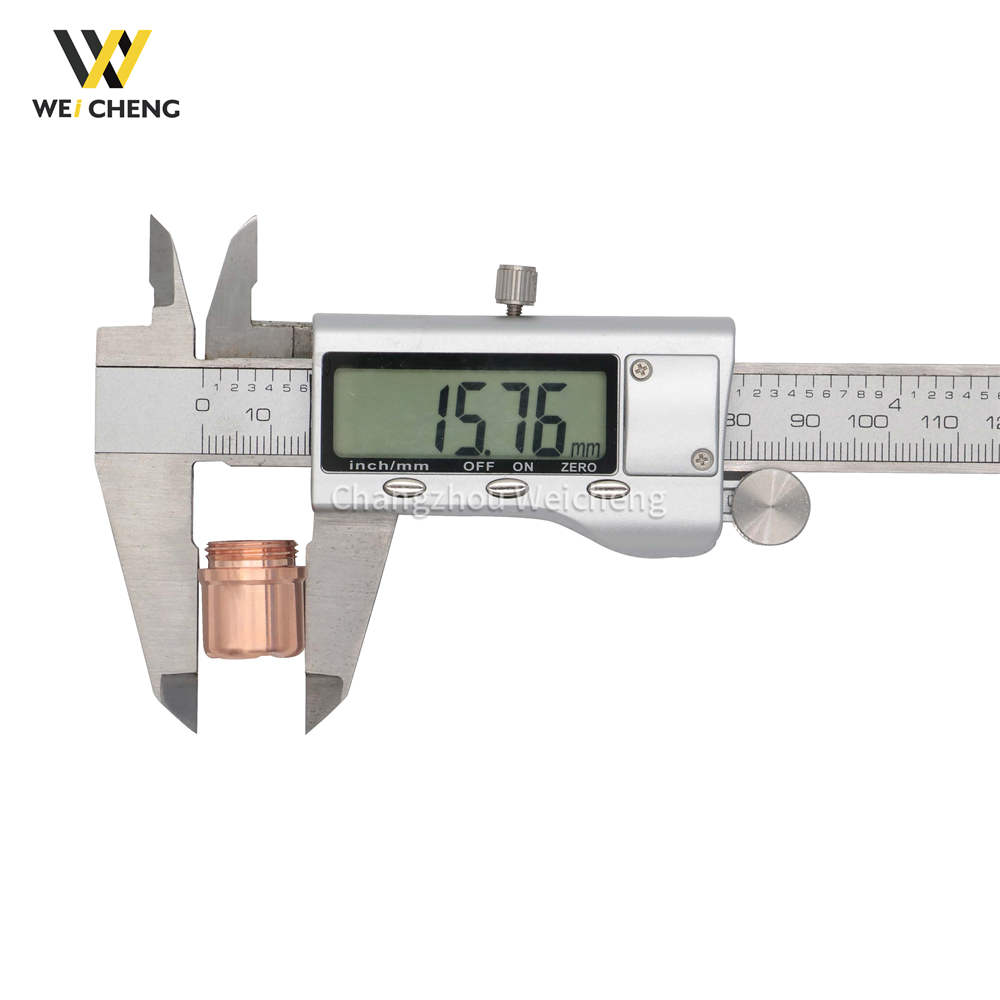

SL60 SL100 Plasma Shield 9-8236 for CutMaster 42/52 Plasma Power Cutter

Compatibility, materials and application analysis of SL60 SL100 plasma shield 9-8236

The plasma shield 9-8236 is a high-performance protective component designed for SL60 and SL100 plasma cutting systems, offering robust durability, precision, and universal adaptability. Engineered to optimize system longevity and operational efficiency, this shield is critical for industries demanding reliability in harsh environments. Below, we analyze its compatibility, material innovations, and practical applications.

Compatibility: Universal Integration with SL60/SL100 Systems

The plasma shield 9-8236 ensures seamless compatibility with both SL60 and SL100 plasma systems, addressing diverse operational needs:

• OEM-Identical Design: Matches original equipment specifications for threading, dimensions, and alignment, enabling plug-and-play installation without retrofitting.

• Adaptive Power Handling: Functions reliably across the full amperage range (SL60: 20–60A; SL100: 60–100A), maintaining stability in low- and high-power operations.

• Mixed Fleet Optimization: Simplifies inventory management for facilities operating multiple SL60/SL100 units, reducing downtime and part mismatch errors.

This universal compatibility makes the shield ideal for workshops, factories, and mobile cutting operations requiring rapid adaptability.

Material Composition: Engineered for Extreme Conditions

The 9-8236 plasma shield leverages advanced materials to protect plasma systems from wear, heat, and corrosion:

• High-Grade Ceramic Composite: Resists extreme temperatures (up to 3,200°F/1,760°C) and spatter during high-amperage cutting, preventing deformation.

• Thermal Barrier Coating: Minimizes heat transfer to adjacent components, prolonging the lifespan of nozzles and electrodes.

• Ablation-Resistant Layer: Withstands abrasive debris from materials like galvanized steel, cast iron, or coated metals, reducing wear on consumables.

• Oxidation-Resistant Finish: Protects against corrosion from moisture and oxygen exposure, ideal for humid or coastal environments.

These materials ensure resilience in demanding conditions, cutting replacement costs by up to 30% and enhancing ROI.

Application Analysis: Versatility Across Industries

The plasma shield 9-8236 excels in diverse industrial scenarios, delivering precision and protection:

1. Heavy Industrial Fabrication

• Thick Plate Cutting: Protects components during high-amperage cutting of stainless steel (up to 50mm) and aluminum (up to 40mm), ensuring clean edges and minimal rework.

• High-Volume Production: Shields systems during rapid cutting cycles for automotive parts, machinery frames, and structural beams.

2. Construction and Infrastructure

• Structural Steel Processing: Withstands abrasive environments when cutting girders, rebar, and sheet metal.

• Pipeline and Shipbuilding: Protects systems during high-intensity cutting of large-diameter pipes and marine-grade steel.

3. Automotive and Aerospace Manufacturing

• Exhaust Systems and Chassis: Minimizes spatter and heat distortion when trimming coated or painted metals.

• High-Tolerance Components: Maintains arc stability for precision cuts on turbine blades, brackets, and aircraft fittings.

4. Artistic and Custom Metalwork

• Intricate Designs: Safeguards systems during detailed plasma cutting of copper, brass, or decorative steel artwork.

• Thin-Gauge Metals: Reduces heat distortion in delicate projects, preserving material integrity.

Technical Advantages Driving Operational Efficiency

• Extended Consumable Lifespan: Protects nozzles and electrodes, reducing replacement costs by 25–30%.

• Energy Savings: Optimized gas flow reduces shielding gas consumption by 10–15%, lowering operational expenses.

• Safety Compliance: Advanced heat dissipation and non-conductive ceramics align with OSHA standards, minimizing workplace hazards.

Conclusion: Industrial Resilience Meets Precision Engineering

The plasma shield 9-8236 is a strategic upgrade for SL60/SL100 users, combining universal compatibility, rugged material science, and critical component protection. Whether tackling heavy fabrication, infrastructure projects, or precision tasks, this shield enhances productivity, reduces downtime, and ensures long-term cost savings.

Upgrade to the plasma shield 9-8236 to safeguard your plasma systems and elevate performance—where cutting-edge engineering meets industrial reliability.
